08 - Latch Board Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	53001246	Board, Latch	Call for Availability
2	53001036	Switch, Micro	Call for Availability
3	4392027	Switch, Micro	$95.30  In-Stock Retail: $92.90

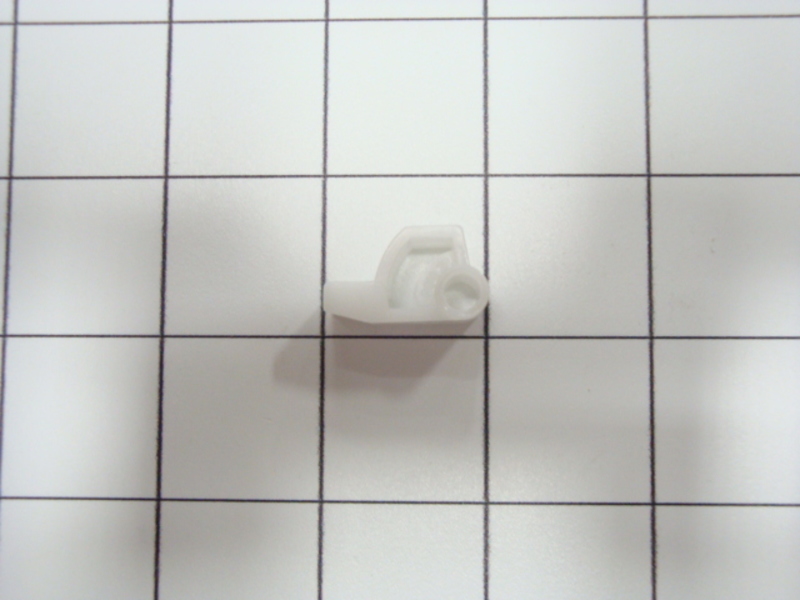

4	53001247	Lever	$18.10 Special Order

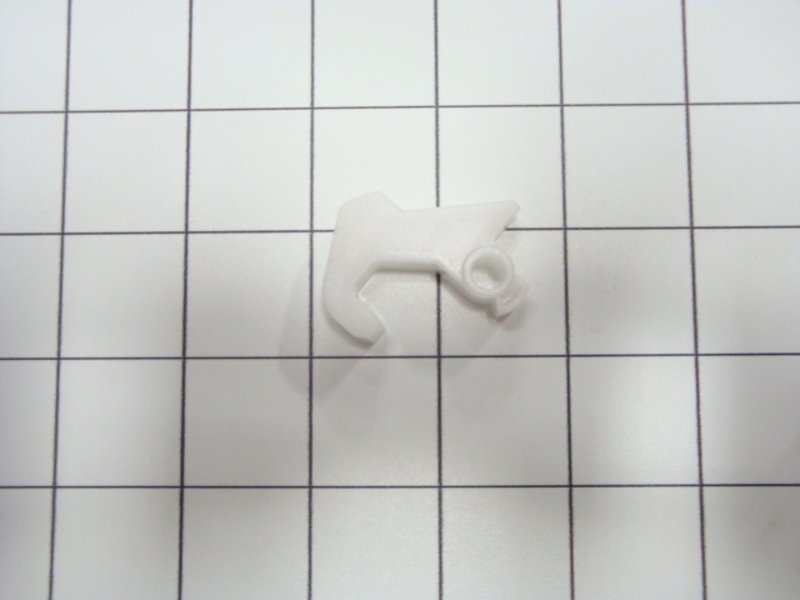

5	53001249	Lever	$21.90 Special Order
6	4358271	Screw	$5.40 Special Order
