Maytag JMV9169BAS Parts List

Popular Searches: (Click to search)    air  0  assy  capacitor  drive  filter  halogen  lamp  magnetron  micro  motor  socket  switch  thermo  thermostat  vac  1


Select a Diagram

01 - Base/cavity/internal Controls

02 - Body/blower Motor

03 - Control Panel/door/grille

04 - Convection Fan Assembly

05 - Supplemental Information

Select Diagram ... 01 - Base/cavity/internal Controls 02 - Body/blower Motor 03 - Control Panel/door/grille 04 - Convection Fan Assembly 05 - Supplemental Information

04 - Convection Fan Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	DE47-00030A	Heater-convection (Series: 10)	$44.00 Special Order
2	DE47-00031A	Heater-convection (Series: 10)	$40.70 Special Order
3	6021-001149	Nut-hexagon Flange (Series: 10)	$4.40 Special Order
4	DE47-20029A	Thermostat (Series: 10)	$38.30 Special Order
5	DE60-00032A	Spacer-bearing;smv9165,silicon (Series: 10)	Call for Availability
6	DE60-40019A	Washer-door (Series: 10)	Call for Availability
7	DE61-00550A	Bracket-air Guide (Series: 10)	$4.40 Special Order
8	DE61-00602A	Holder-heater (Series: 10)	Call for Availability

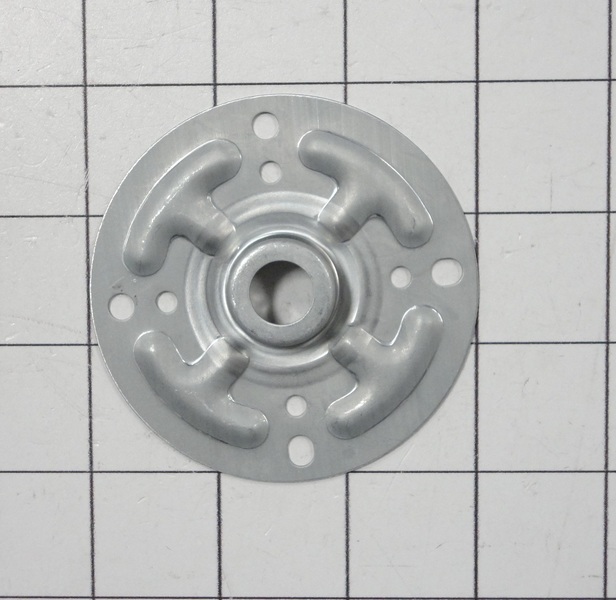

9	DE61-00619A	Holder-bearing (Series: 10)	$21.20 Special Order
10	DE61-00690A	Bracket-guide (Series: 10)	$52.90 Special Order
11	DE61-00718A	Bracket-casing (Series: 10)	Call for Availability
12	DE62-00032A	Adiabatic Casing (Series: 10)	Call for Availability
13	DE63-00176A	Cover-casing (Series: 10)	Call for Availability

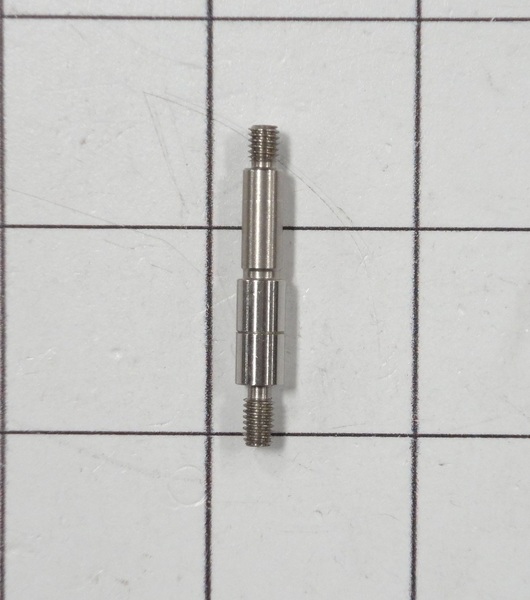

14	DE66-00137A	Shaft-fan (Series: 10)	$22.00 Special Order
15	DE66-00155A	Pulley-fan Casing (Series: 10)	$4.40 Special Order

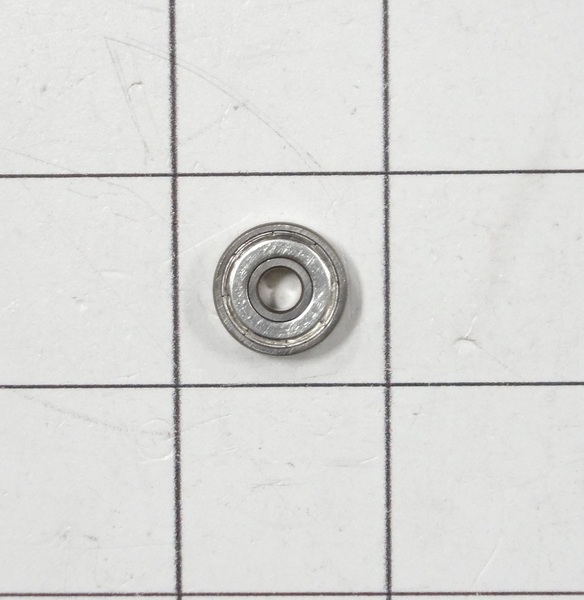

16	DE66-10017A	Bearing-fan (Series: 10)	$63.90 Special Order
17	DE69-00361A	Band-rubber (Series: 10)	Call for Availability
