Maytag JMV9169BAS Parts List

Popular Searches: (Click to search)    air  0  assy  capacitor  drive  filter  halogen  lamp  magnetron  micro  motor  socket  switch  thermo  thermostat  vac  1


Select a Diagram

01 - Base/cavity/internal Controls

02 - Body/blower Motor

03 - Control Panel/door/grille

04 - Convection Fan Assembly

05 - Supplemental Information

Select Diagram ... 01 - Base/cavity/internal Controls 02 - Body/blower Motor 03 - Control Panel/door/grille 04 - Convection Fan Assembly 05 - Supplemental Information

03 - Control Panel/door/grille   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart

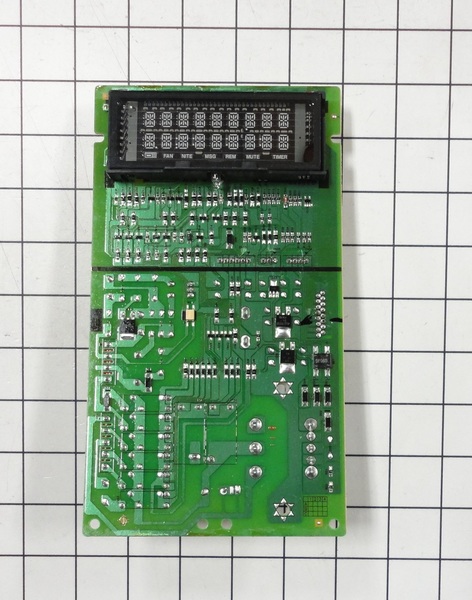

1	W10127103	Asy Pcb (upr) (Series: 10)	Call for Availability
2	DE94-01407C	Asy Control Panel (stl) (Series: 10)	$179.00 Special Order
3	DE97-00633A	Asy-bkt-c/panel (Series: 10)	$23.80 Special Order
4	DE94-01398C	Asy Door (stl) (Series: 10)	$274.10 Special Order

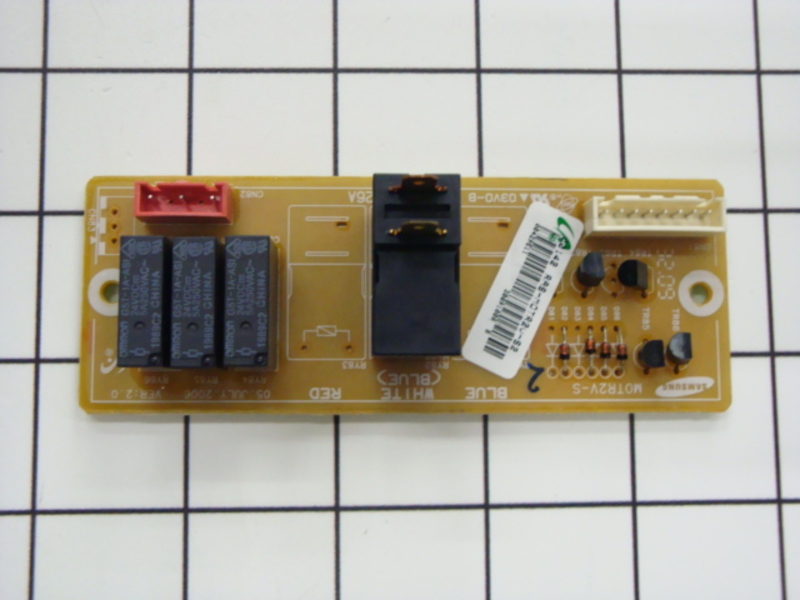

5	WPW10127105	Asy Pcb (lwr) (Series: 10)	$13.00 Special Order
6	DE64-01455A	Grille (blk) (Series: 10)	$98.30 Special Order
7	DE61-00527A	Spring Etc-louver;jvm-2070,hsw (Series: 10)	$4.40 Special Order
8	DE61-00128A	Hinge-grille(r) (Series: 10)	$4.40 Special Order
9	DE61-00177A	Hinge-grille(m) (Series: 10)	$4.40 Special Order
10	DE61-00129A	Hinge-grille(l) (Series: 10)	$4.40 Special Order
11	DE97-00656A	Cover, Grille (stl) (Series: 10)	$90.70 Special Order
12	DE34-00234B	Switch Membrane (Series: 10)	$97.60 Special Order
13	DE64-00766B	Window-display;4150,san,t2.0,w (Series: 10)	$4.40 Special Order
14	DE39-00362B	Wire Harness-e (Series: 10)	$8.00 Special Order
