Maytag JJW8530DDS28 Parts List

Popular Searches: (Click to search)    2oz  assy  bake  black  block  brochure  door  element  latch  limit  paint  safe  sealer  silastic  spray  switch  terminal  tips  touch  white


Select a Diagram

01 - Oven Parts

02 - Oven Door Parts

03 - Internal Oven Parts

04 - Control Panel Parts

05 - Optional Parts

Select Diagram ... 01 - Oven Parts 02 - Oven Door Parts 03 - Internal Oven Parts 04 - Control Panel Parts 05 - Optional Parts

02 - Oven Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	2402W314-19	Liner-door	$215.40 Special Order

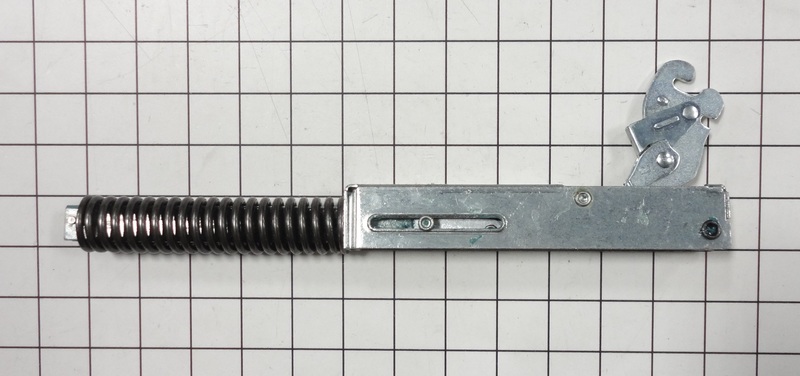

2	WP74010283	Hinge, Door	$78.20  In-Stock Retail: $76.25

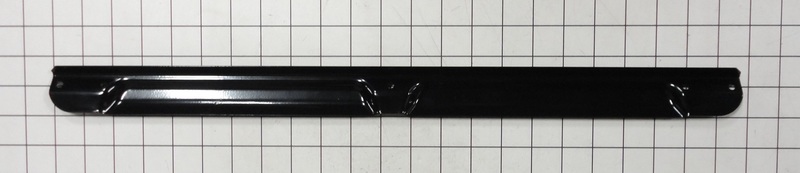

3	3608F102-70	Trim, Btm Dr Vent	$40.20 Special Order
4	7002P246-60	Insulation, Door	$43.00 Special Order
5	3801F886-51	Bracket, Inner Glass	$24.80 Special Order
6	3603F073-70	Frame-door	Call for Availability
7	3804F144-45	Retainer, Dr Glass	$4.40 Special Order
8	W10202023	Assy., Door Glass (stainless)	Call for Availability
	74008419	Assy., Door Glass (bisque)	$124.50 Special Order
	7922P020-60	Assy., Door Glass (black)	$221.90 Special Order

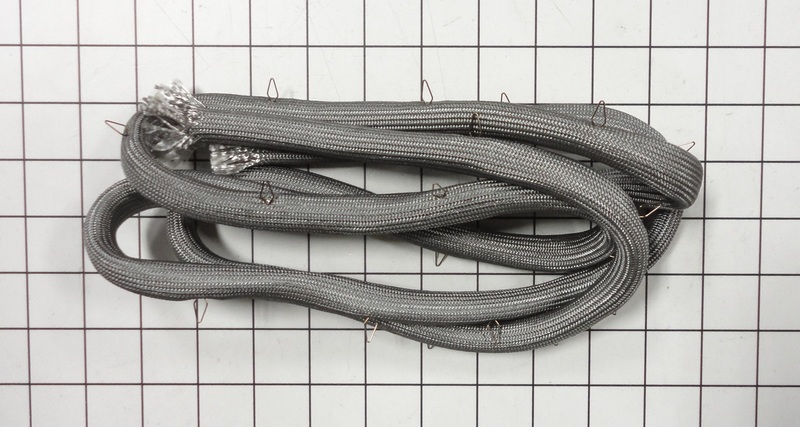

9	WPW10162386	Gasket, Door (Replaces: W10162386)	$107.20 Special Order
10	7902P656-60	Glass, Door (screened)	$79.50 Special Order
11	WP74008625	Handle, Door	$178.00 Special Order
12	3804F303-51	Retainer, Insul.	$42.70 Special Order
13	3601F373-51	Baffle, Door	$178.70 Special Order
14	74003645	Glass, Inner	$143.40 Special Order
15	WP90767	Screw	$4.80  In-Stock Retail: $4.59
16	7002P397-60	Insulation, Door (stainless Only)	Call for Availability
17	WP3400029	Nut	$4.80 Special Order
18	74009194	Washer	$13.00 Special Order
