02 - Control Panel And Internal Controls   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	74008268	Insulation (Series: 10)	$5.40 Special Order
	5765M451-60	Panel, Control (wht) (Series: 10)	$259.20 Special Order
2	WP90767	Screw (Series: 10)	$4.80  In-Stock Retail: $4.59

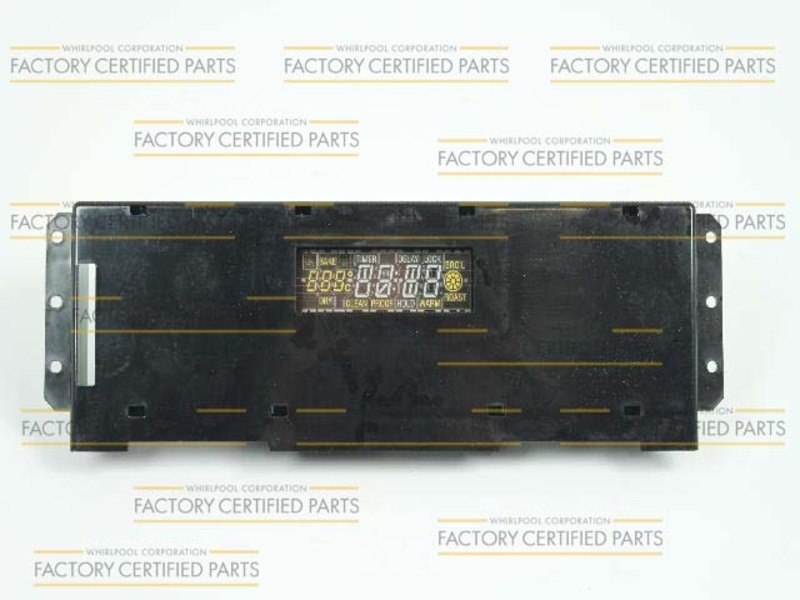

	WP74008312	Control, H1 (clock) (Series: 10) (Replaces: 74008312)	$257.70  In-Stock Retail: $251.41
3	3608F105-70	Trim, Control Panel (Series: 10)	$33.10 Special Order
4	74008262	Panel, Top (inr) (Series: 10)	$31.80 Special Order
5	71001843	Extension, Vent (Series: 10)	$25.00 Special Order
6	WP74008263	Switch, Door Lock (Series: 10)   (Replaces: 74008263)	$96.60 Special Order
	74008264	Insulator (Series: 10)	$4.40 Special Order
7	WP90767	Screw (Series: 10)	$4.80  In-Stock Retail: $4.59
	74008265	Thermostat, Hi-limit (upr) (Series: 10)	$126.90 Special Order
8	WPW10186996	Latch, Door Assy. (w/switch) (Series: 10)	$218.30 Special Order
	WP7450P108-60	Swtch-lite (Series: 13)	$96.80 Special Order
	3400409	Screw, Switch (Series: 10)	$4.40 Special Order
9	4011F438-45	Vent (btm) (Series: 10)	$40.70 Special Order
10	4006F169-45	Vent (top) (Series: 10)	$24.60 Special Order
11	74004222	Grommet, Anti-short (Series: 10)	$5.40 Special Order
	74004726	Wire Cable Assy. (Series: 10)	$91.50 Special Order
12	WP7103P027-60	Nut, Terminal Block (Series: 10)	$4.80 Special Order
	WPW10245259	Block, Terminal (Series: 10) (Replaces: 7401P039-60)	$21.30  In-Stock Retail: $20.75
	WPW10281322	Kit, Hardware Adapter (Series: 10)	$5.90  In-Stock Retail: $5.72
	7417P017-60	Connector, Cable (Series: 10)	Call for Availability
13	74004712	Bracket, Cable (Series: 10)	$25.10 Special Order
14	74008330	Bracket, Cooling Fan Mounting (Series: 10)	$5.80 Special Order
15	3801F834-51	Bracket,control Mounting (h1) (Series: 10)	$5.40 Special Order
16	74009596	Fan Motor Assy. (Series: 10)	$97.40 Special Order
	W10124350	Not Required Part Or See Note (Series: 11)	Call for Availability
	74009598	Resistor Assy. (Series: 10)	$25.10 Special Order
	74008269	Fan Motor Assy. (Series: 11)	$167.80 Special Order
	74009597	Clamp, Resistor (Series: 10)	$4.40 Special Order
17	74001632	Bracket, Switch Actuator (Series: 10)	$4.40 Special Order
18	74003562	Rod, Door Light Switch (Series: 10)	Call for Availability
19	74007586	Cover, Plunger (door Light) (Series: 10)	$12.00 Special Order
20	74001629	Spring, Door Switch (Series: 10)	$9.70 Special Order
