Maytag JGRP548WP00 Parts List

Popular Searches: (Click to search)    blade  burner  cleaner  cooktop  door  fan  glass  head  hinge  inner  jack  left  meat  module  probe  receiver  right  screw  sensor  spark


Select a Diagram

01 - Cooktop, Burner And Grate Parts

02 - Burner Box, Gas Valves, And Switches

03 - 30`` Oven Parts

04 - 18`` Oven Parts

05 - 48`` Chassis Parts

06 - Venting Parts

07 - 30`` Oven Door Parts

08 - 18`` Oven Door Parts

09 - 30`` Internal Oven Parts

10 - 18`` Internal Oven Parts

11 - Optional Parts

Select Diagram ... 01 - Cooktop, Burner And Grate Parts 02 - Burner Box, Gas Valves, And Switches 03 - 30`` Oven Parts 04 - 18`` Oven Parts 05 - 48`` Chassis Parts 06 - Venting Parts 07 - 30`` Oven Door Parts 08 - 18`` Oven Door Parts 09 - 30`` Internal Oven Parts 10 - 18`` Internal Oven Parts 11 - Optional Parts

03 - 30`` Oven Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPW10292297	Screw   (Replaces: W10292297)	$4.80 Special Order
2	4449748	Screw	$8.90 Special Order
3	W10105790	Assembly, Bumper	$4.60 Special Order
4	W11029221	Latch, Motorized	$183.80  In-Stock Retail: $179.27
5	W10145743	Tube, Vent	$43.40 Special Order
6	W10169756	Lens, Light	$23.50 Special Order
7	WPW10307114	Oven Light Assy	$69.60 Special Order
8	WPW10169757	Bulb, Light (Replaces: W10169757)	$24.00  In-Stock Retail: $23.37
9	WP4455606	Hinge Receiver (right) (Replaces: 4455606)	$64.70  In-Stock Retail: $63.05
	WP4455605	Hinge Receiver (left) (Replaces: 4455605)	$64.70  In-Stock Retail: $63.05
10	W10160858	Cover, Latch	$45.10 Special Order
11	W10115877	Cover, Hinge (right)	$54.10 Special Order
	W10115876	Cover, Hinge (left)	$54.00 Special Order
12	W10269206	Side, Chassis (left)	$124.90 Special Order
	W10269205	Side, Chassis (right)	$125.10 Special Order

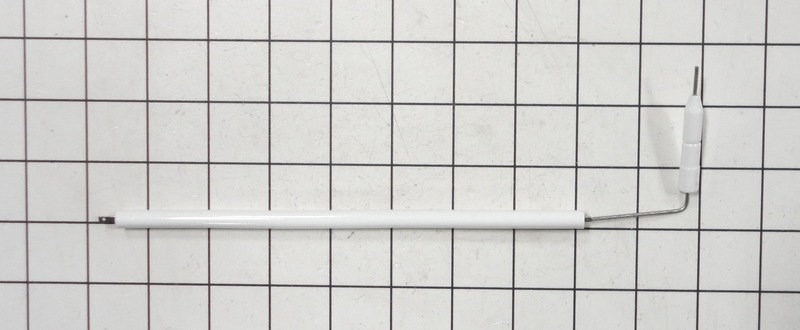

13	W11448312	Electrode, Bake (Replaces: WPW10332290 W10332290)	$36.20 Special Order
14	N/P	Liner, Oven (not Serviced)	Call for Availability
15	WPW10131825	Sensor (Replaces: W10131825)	$77.00  In-Stock Retail: $75.12
16	WP4449154	Screw (Replaces: 4449154)	$4.80  In-Stock Retail: $4.59
17	WP4449040	Screw	$4.80 Special Order
18	W11233072	Screw	$8.70  In-Stock Retail: $8.47
19	WP4450249	Thermostat (tod)   (Replaces: 4450249)	$126.90  In-Stock Retail: $123.73
23	WP90767	Screw	$4.80  In-Stock Retail: $4.59
24	W10145715	Tube, Bake	$117.50 Special Order
25	W10145716	Tube, Broil	$119.20 Special Order
26	WPW10145744	Support, Bake Pan	$120.90 Special Order
27	W11688851	Insulation, Broil Cover	$13.90 Special Order
28	W10310985	Broil Cover	$43.30 Special Order
29	WPW10272546	Bottom, Gas Oven   (Replaces: W10272546)	$121.10  In-Stock Retail: $118.07
30	W11661180	Broil Burner	$93.70 Special Order
31	W10308040	Bracket, Bake Burner	$43.30 Special Order
32	W11643161	Bake Burner	$100.30 Special Order
NI	W11661177	Insulation, Wrap, 30``	$88.90 Special Order
	W11688580	Insulation, Back, 30``	$43.00 Special Order
	W11684890	Insulation, Bottom	$69.80 Special Order
