Maytag JGCP430ADP Parts List

Popular Searches: (Click to search)    17k  assembly  blk  burner  cap  holder  ignitor  lrg  med  module  orifice  small  smr  spark


Select a Diagram

01 - Burner Box

02 - Control Panel/manifold Pipe

03 - Supplemental Information

04 - Top Assembly

Select Diagram ... 01 - Burner Box 02 - Control Panel/manifold Pipe 03 - Supplemental Information 04 - Top Assembly

04 - Top Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	71003124	Top, Main (stnls) (Series: 10)	$243.00 Special Order
	WP90767	Screw (Series: 10)	$4.80  In-Stock Retail: $4.59
2	74009620	Pan, Drip (med) (Series: 10)	$15.40 Special Order
	3424F033-09	Pan, Drip (large) (Series: 10)	$18.50 Special Order
3	7518P473-60	Grate (blk) (Series: 10)	$115.20 Special Order
4	WP74009336	Ignitor (Series: 10) (Replaces: 74009336)	$23.30  In-Stock Retail: $22.66
	74007736	Burner Assembly (x-lrg) (Series: 10)	$110.20  In-Stock Retail: $107.45
	74007735	Burner Assembly (lrg) (Series: 10)	$97.80  In-Stock Retail: $95.40
	74007734	Burner Assembly (small) (Series: 10)	$83.60  In-Stock Retail: $81.48

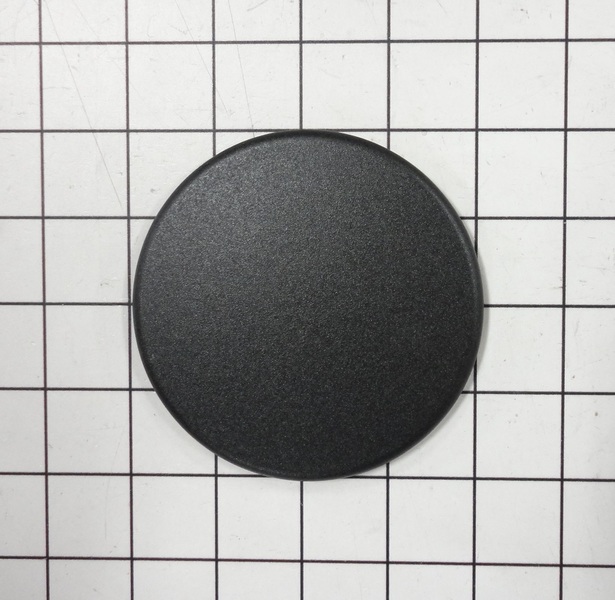

5	WP74007750	Cap, Burner (lrg-blk) (Series: 10) (Replaces: 74007750)	$75.70  In-Stock Retail: $73.83

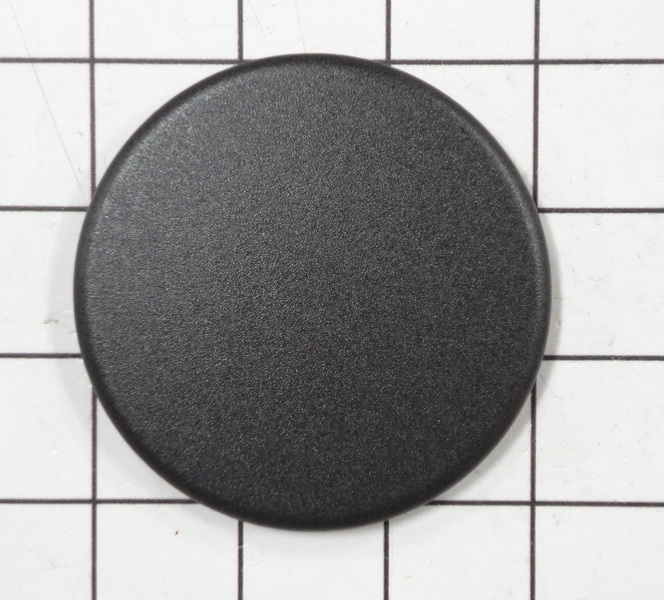

	WP74007749	Cap, Burner (med-blk) (Series: 10) (Replaces: 74007749)	$51.50 Special Order
	WP8284669	Cap, Burner (smr-blk) (Series: 10) (Replaces: 74007748)	$44.80  In-Stock Retail: $43.61
