Maytag JFC2089WEM1 Parts List

Popular Searches: (Click to search)    2oz  device  door  drain  drawer  drier  filter  gear  grease  includes  paint  pantry  pressurized  spray  start  touch  tube  valve  water  white


Select a Diagram

01 - Cabinet Parts

02 - Freezer Liner Parts

03 - Refrigerator Liner Parts

04 - Refrigerator Door Parts

05 - Unit Parts

06 - Shelf Parts

07 - Freezer Door Parts

08 - Icemaker Parts

09 - Optional Parts (not Included)

Select Diagram ... 01 - Cabinet Parts 02 - Freezer Liner Parts 03 - Refrigerator Liner Parts 04 - Refrigerator Door Parts 05 - Unit Parts 06 - Shelf Parts 07 - Freezer Door Parts 08 - Icemaker Parts 09 - Optional Parts (not Included)

01 - Cabinet Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10279935	Tech Sheet	Call for Availability
	W10280181	Energy Guide	Call for Availability
	W10277506	Owners Manual	Call for Availability
2	W11176463	Elbow, Fill Tube	$72.30  In-Stock Retail: $70.45
3	WP67003405	Block, Pivot	$4.80  In-Stock Retail: $4.59
4	B5759655	Gasket	$8.10 Special Order
5	12684202B	Cover, Right Hinge (black)	Call for Availability
6	N/P	Cabinet (not A Serviceable Part)	Call for Availability
8	WP98165	Screw	$4.80 Special Order
9	WP8281196	Screw	$4.80  In-Stock Retail: $4.59
10	WP12566606ED	Hinge, Top Right	$28.20  In-Stock Retail: $27.49
11	WP67006380	Screw (6)	$4.80 Special Order
13	W10177767	Cover, Left Hinge (black)   (Replaces: 12684201B)	Call for Availability
14	WP489349	Screw (6)	$4.80 Special Order

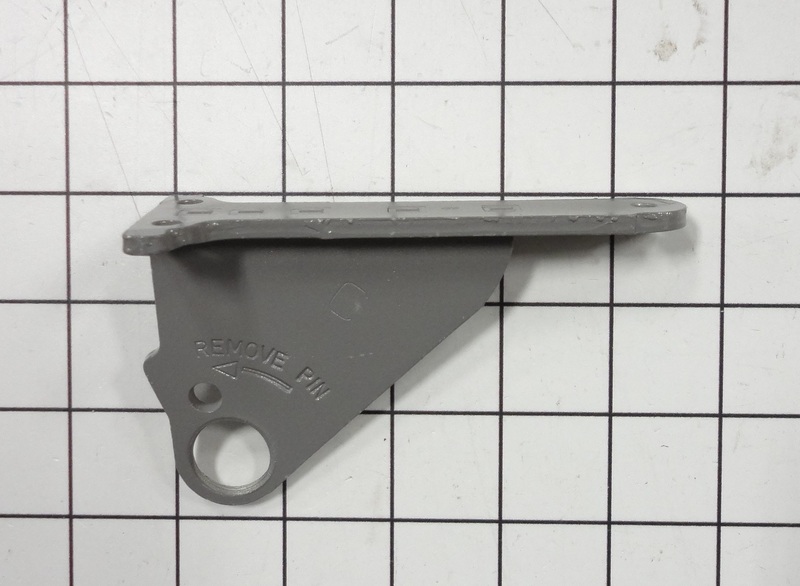

15	12655102AP	Hinge, Center	$93.80 Special Order
16	WP12777701	Block, Fill Tube (Replaces: 12777701)	$6.10 Special Order
17	WP12587703AP	Cover, Corner (2) (apollo Grey)	$4.80 Special Order
18	WP12566607ED	Hinge, Top Left	$55.30 Special Order
19	WPW10515763	Roller Assy.(front) (left)	$69.20  In-Stock Retail: $67.43
	WPW10515762	Roller Assy.(front) (right) (Replaces: W10515762 W10275849)	$68.40  In-Stock Retail: $66.71
20	67006564	Screw (8)	$4.80 Special Order
21	12695601	Shim, Hinge	$4.40 Special Order
22	WPW10534155	Grille, Toe (apollo Grey)	$85.60 Special Order
23	W10833902	Clamp, Tube	$6.90 Special Order
25	67006425	Screw (10)	$4.80  In-Stock Retail: $4.59
26	12726003	Cover, Water Line	$11.80 Special Order
27	W10208593	Guard, Water Valve	$9.70 Special Order
28	WP7101P126-60	Screw (2)	$4.80 Special Order
29	12831101	Sweep, Dual Tube	$8.10 Special Order
30	WPW10211855	Cover, Unit	$121.70 Special Order
32	A3076901	Plug-button	$5.70 Special Order
33	12820505	Insulation, Sound	$31.70 Special Order
34	WPW10141622	Brake, Foot   (Replaces: W10141622)	$4.80  In-Stock Retail: $4.59
35	WPM0104106	Clip (2)   (Replaces: M0104106)	$4.80 Special Order
36	W10619951	Tube, Drain (Replaces: W10210988)	$40.20  In-Stock Retail: $39.21
37	WPM0114003	Clip	$6.80  In-Stock Retail: $6.56
