Whirlpool GJP84801 Parts List

Popular Searches: (Click to search)    bake  door  element  0  2400w  2oz  almond  black  foot  hinge  paint  pressurized  screw  sensor  spray  superior  surface  touch  white


Select a Diagram

01 - Cooktop Parts

02 - Control Panel Parts

03 - Door And Drawer Parts

04 - Oven Chassis Parts

05 - Oven Parts

06 - Hidden Bake Parts, Miscellaneous Parts

Select Diagram ... 01 - Cooktop Parts 02 - Control Panel Parts 03 - Door And Drawer Parts 04 - Oven Chassis Parts 05 - Oven Parts 06 - Hidden Bake Parts, Miscellaneous Parts

02 - Control Panel Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	9752431PW	Lamp Cover	Call for Availability
2	9754222	Console-glass (control Panel)	Call for Availability
3	3191072	Breaker, 15amp. (2)	Call for Availability
4	9752423FW	End Cap (right)	$36.90 Special Order
	9752422FW	End Cap (left)	$36.60 Special Order
5	9780577	Button Plug (8 Mm (2))	Call for Availability
6	3191070	Panel, Control	Call for Availability
8	WP9752405FW	Knobs, Control (4)	$12.50 Special Order
9	WP9750343	Lens, Indicator	$3.20 Special Order
	313102	Light, Indicator (2) (burners)	$46.40 Special Order
10	9752854	Spacer	Call for Availability
12	9752443PW	Trim Strip	Call for Availability
13	9754017FW	Switch, Rocker	Call for Availability
14	9751480FW	Outlet, Untimed (2)	Call for Availability
15	9754261	Timer	Call for Availability
16	9781954FW	Knob, Timer (17)	Call for Availability
17	9753304	Bracket (2)	$4.40 Special Order

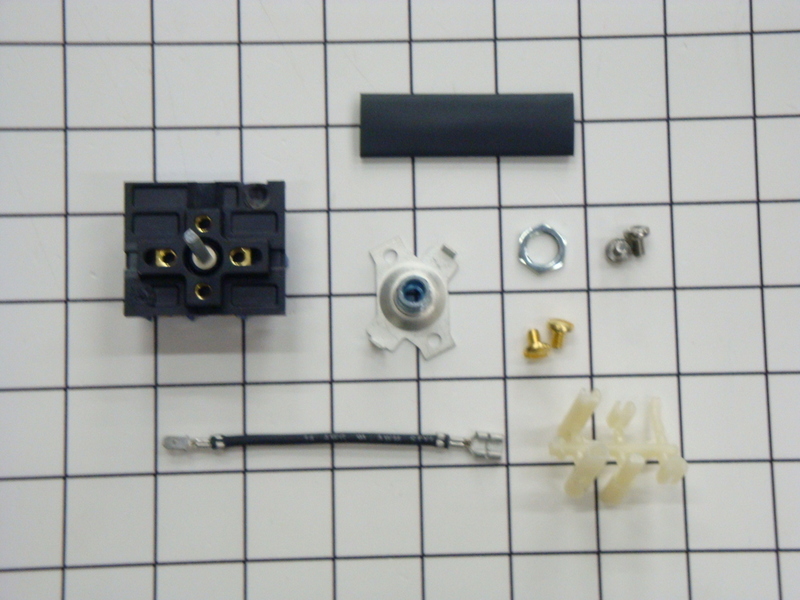

19	WP8203529	Infinite Switch (dual, (2))	$100.50 Special Order
	WP9750643	Infinite Switch (1400w)	$91.30 Special Order
	9750644	Infinite Switch (1700w)	$66.10 Special Order
21	9782259	Receptacle, Light	$27.80 Special Order
22	814552	Starter, Holder	$27.70 Special Order
23	92790	Starter, Light	$25.70 Special Order
25	WP95292	Light, Fluorescent	$81.90 Special Order
28	9753017	Clip, Spring (2)	Call for Availability
29	WP4159387	Screw, 8-16 X 3/8	$4.50 Special Order
30	9752439	Base, Console	$43.20 Special Order
31	9753076FW	Spacer, Timer (2)	$4.40 Special Order
32	WP3400832	Screw, 8-18 X 1/2 (Replaces: 3196168)	$4.50  In-Stock Retail: $4.33
33	W11169708	Screw, 8-18 X 3/8	$8.20 Special Order
34	9750995	Insulation, Control Panel	Call for Availability
	WP3400882	Screw, 8-32 X 7/32	$4.50  In-Stock Retail: $4.33
