02 - Control Panel/top Asy   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	74011714	Control Panel/switch Asy (wht) (Series: 10)	$294.50 Special Order
2	WP74010824	Switch, Element (lrg) (Series: 10)	$94.10 Special Order
3	WP7403P238-60	Switch, Infinite (sml Element) (Series: 10) (Replaces: 7403P238-60)	$40.00  In-Stock Retail: $56.27
4	74007845	Support, Element (Series: 10)	Call for Availability
5	WP74004153	Light, Indicator (Series: 10)   (Replaces: 74004153)	$4.80 Special Order
6	WP22001948	Lens, Indicator Light (Series: 10) (Replaces: 22001948)	$7.80 Special Order
7	74011761	Support, Control Panel (Series: 10)	$25.10 Special Order
8	WP74011493	Knob (Series: 10)	$28.90  In-Stock Retail: $28.10

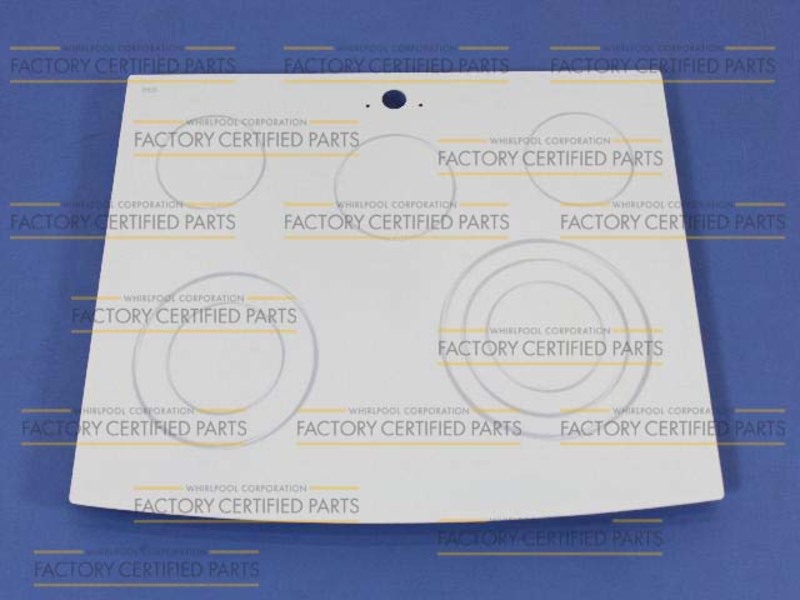

9	74011717	Glass Top Asy (wht) (Series: 10)	$363.90 Special Order

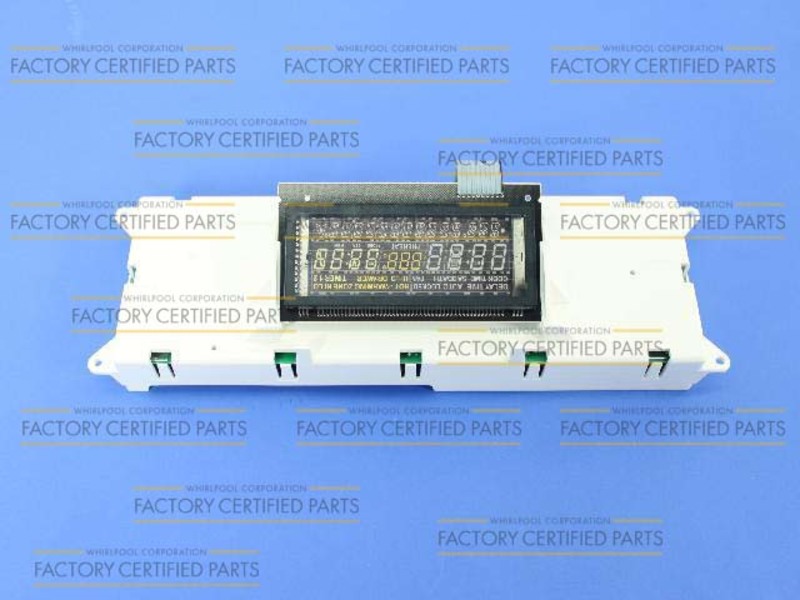

10	WP8507P225-60	Control (Series: 10)	$257.70 Special Order
	WP59002061	Screw (6abx3/8-sn) (Series: 10)	$4.80 Special Order
11	WP74011550	Knob (Series: 10)	$28.50  In-Stock Retail: $27.74
12	W10823711	Element (1200w) (Series: 10)	$208.20  In-Stock Retail: $203.10
13	W10823692	Element, Dual (Series: 10)	$208.20  In-Stock Retail: $203.10

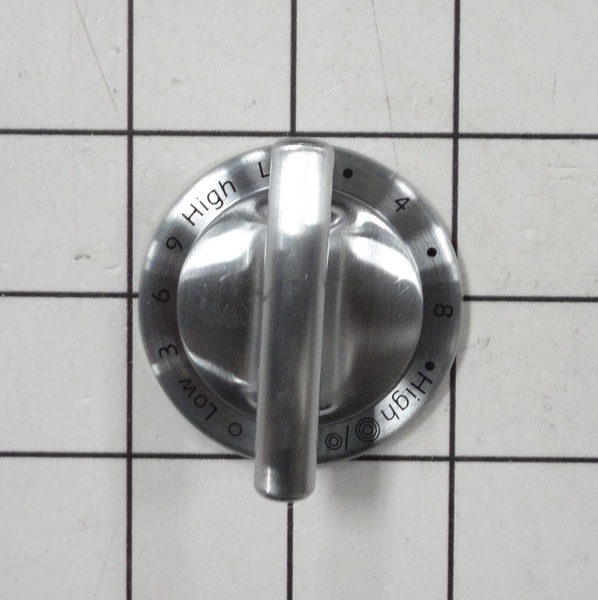

14	WP74011631	Knob (Series: 10) (Replaces: 74011631)	$34.30 Special Order
15	WP7101P498-60	Screw (6abx.25-zn) (Series: 10)	$4.80 Special Order
16	W10823718	Element, Triple (Series: 10)   (Replaces: WP74010158 74010158)	$216.00 Special Order
17	74008717	Switch, Rocker (wht) (Series: 10)	$52.70 Special Order
18	74011634	Trim, Vent (wht) (Series: 10)	$36.50 Special Order
19	74005759	Tube, Vent (upr) (Series: 10)	$24.40 Special Order
20	74011620	Element (warming Zone) (Series: 10)	$108.30 Special Order
