03 - Control Panel/top Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP5760M373-60	Control Panel/switch Asy (stl) (Series: 10)	$312.80 Special Order
2	WP7450P012-60	Switch, Snap (Series: 10)	$101.50 Special Order
3	71003267	Grate, Grill (Series: 10)	$121.80 Special Order

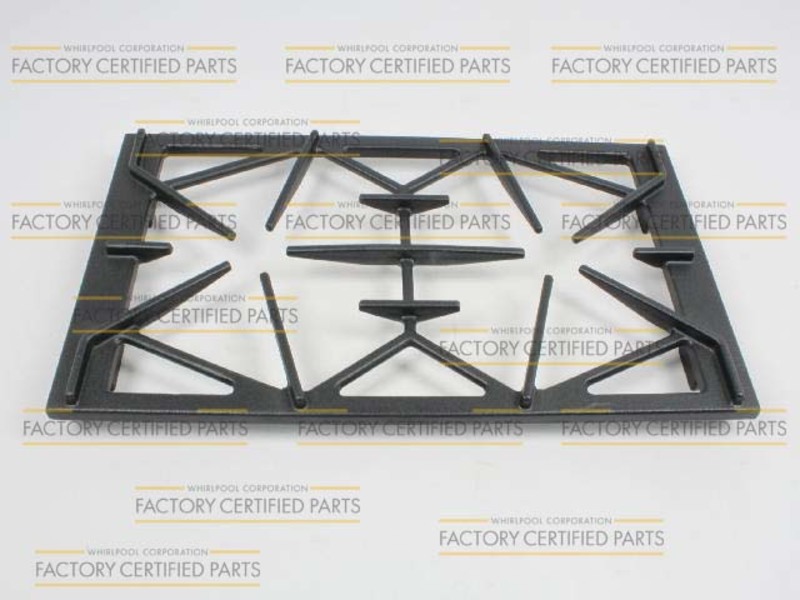

4	74011535	Grate (Series: 10)	$137.60 Special Order
5	3604F426-51	Shield, Control (Series: 10)	$49.10 Special Order
	W10202531	Shield, Control (Series: 20)	Call for Availability
	WP8507P232-60	Control (Series: 10)   (Replaces: 74011750)	$257.70 Special Order
	WP59002061	Screw (6abx3/8-sn) (Series: 10)	$4.80 Special Order
6	WPW10175695	Knob (Series: 10)	$17.20  In-Stock Retail: $16.78
7	WP98008545	Screw (8abx1/2``-blk) (Series: 10)	$11.60  In-Stock Retail: $11.31
	3807F739-51	Support, Control Panel (Series: 10)	$31.50 Special Order
8	7740P168-60	Bezel, Knob (simmer) (Series: 10)	$59.50 Special Order
	W10220976	Bezel, Knob (Series: 10)	$36.40 Special Order
9	3801F763-51	Bracket, Control (Series: 10)	$25.20 Special Order
	WP7101P338-60	Screw (8bx3/8-ni) (Series: 10)   (Replaces: 7101P338-60)	$4.40 Special Order
10	W11111008	Screw (10abx1/4p Tr Zn) (Series: 10)   (Replaces: 7101P208-60)	$8.70 Special Order
11	Y052721	Nut (Series: 10)	$15.10 Special Order
	71001764	Pin, Locator (Series: 10)	$7.30 Special Order
12	Y704947	Washer (Series: 10)	$4.40 Special Order
	3401F065-19	Pan, Grill (lt) (Series: 10)	$21.80 Special Order

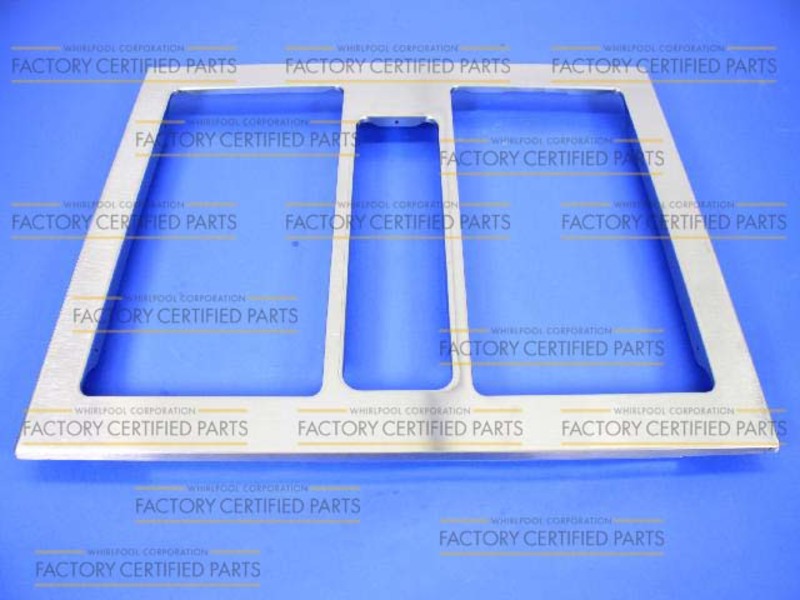

13	W10401391	Top, Main (stl) (Series: 10)	$251.20 Special Order
14	7112P150-60	Clip, Terminal Block (Series: 10)	$12.70 Special Order
	WP489128	Screw (Series: 10)	$6.70 Special Order
15	5171P787-60	Harness/block, Spark (lt) (Series: 10)	$101.90 Special Order
16	74006061	Grill, Air (blk) (Series: 10)	Call for Availability
17	3807F743-51	Support, Cartridge Pan (Series: 10)	$8.60 Special Order
	W10828565	Screw, Black (Series: 10)	$4.80 Special Order
