Whirlpool GI5FSAXVY00 Parts List

Popular Searches: (Click to search)    assembly  brush  can  drier  enamel  fan  filter  gear  grease  incl  inlet  kit  left  spray  start  thermistor  touch  valve  water  white


Select a Diagram

01 - Cabinet Parts

02 - Refrigerator Liner Parts

03 - Shelf Parts

04 - Motor And Ice Container Parts

05 - Icemaker Parts

06 - Freezer Liner Parts

07 - Refrigerator Door Parts

08 - Freezer Door Parts

09 - Dispenser Front Parts

10 - Unit Parts, Optional Parts (not Included)

Select Diagram ... 01 - Cabinet Parts 02 - Refrigerator Liner Parts 03 - Shelf Parts 04 - Motor And Ice Container Parts 05 - Icemaker Parts 06 - Freezer Liner Parts 07 - Refrigerator Door Parts 08 - Freezer Door Parts 09 - Dispenser Front Parts 10 - Unit Parts, Optional Parts (not Included)

09 - Dispenser Front Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
2	W10860143	Dispenser Keyboard (black)	$193.00 Special Order

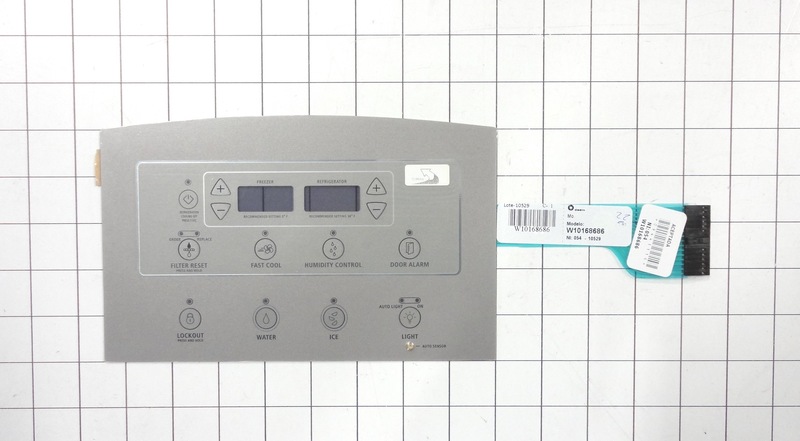

	W10882878	Dispenser Keyboard (satina)	$265.60 Special Order
	W10740218	Dispenser Keyboard (stainless)	$179.60  In-Stock Retail: $175.19
	W10882877	Dispenser Keyboard (white)	$338.90 Special Order
3	W10162500	Board, L.v.	$166.10 Special Order
4	W10141657	Sump, Dispenser (white)	$27.70 Special Order
	W10168726	Sump, Dispenser (black)	$26.50 Special Order
	W10168728	Sump, Dispenser (apollo Grey (light))	$21.30 Special Order
	W11676505	Sump, Dispenser (midnight Grey (dark))	$9.30 Special Order
5	WP13005704W	Chute, Ext/yoke (includes Switch) (white)	$177.40 Special Order
	WP13005704B	Chute, Ext/yoke (includes Switch) (black)   (Replaces: 13005704B)	$176.80 Special Order
	WP13005706	Chute, Ext/yoke (includes Switch) (midnight Grey (dark))	$177.20 Special Order
6	67006425	Screw	$4.80  In-Stock Retail: $4.59
7	67006295	Ring, Target	$32.80 Special Order
8	W10141655	Facade, Dispenser (white)	$95.50 Special Order
	W10168725	Facade, Dispenser (apollo Grey W/satina Insert)	$67.90 Special Order
	WPW10310690	Facade, Dispenser (apollo Grey W/stainless Insert)	$125.70 Special Order
	W10163996	Facade, Dispenser (black)	$95.50 Special Order
9	M0108106	Clamp, Tube	$41.70 Special Order
11	W10146247	Yoke/pad Assembly (white)	Call for Availability
	WPW10185234	Yoke/pad Assembly (midnight Grey (dark))   (Replaces: W10185234)	$4.80 Special Order
	WPW10185234	Yoke/pad Assembly (apollo Grey (light))	$4.80 Special Order
	WPW10168729	Yoke/pad Assembly (black)   (Replaces: W10168729)	$7.90 Special Order
12	WP12565502	Spring   (Replaces: 12565502)	$4.80  In-Stock Retail: $4.59
