03 - Control Panel/top Assembly (aap)   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	74006889	Nameplate (stl) (Series: 10)	$40.90 Special Order
	74006889	Nameplate (stl) (Series: 14)	$40.90 Special Order
	74010786	Panel, Manifold (Series: 10)	$270.00 Special Order
	74010786	Panel, Manifold (Series: 15)	$270.00 Special Order
2	WP7450P012-60	Switch, Snap (Series: 10)	$101.50 Special Order
	74006095	Insulator, Switch (Series: 10)	$4.40 Special Order
3	71003267	Grate, Grill (Series: 10)	$121.80 Special Order
	74009441	Grate, Grill (Series: 18)	$98.30 Special Order
	71003267	Grate, Grill (Series: 19)	$121.80 Special Order
4	WP7518P483-60	Grate, Burner (blk) (Series: 10)   (Replaces: 74005898)	$139.80 Special Order
5	74006128	Overlay (blk) (Series: 10)	$21.90 Special Order
	74011219	Harness, Main (Series: 23)	$69.40 Special Order
	W10828565	Screw, Black (Series: 10)	$4.80 Special Order

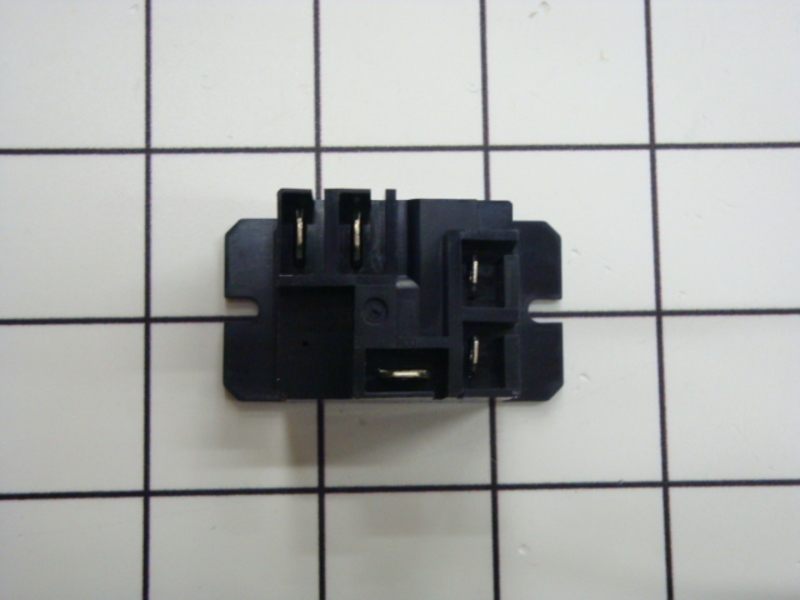

	WP74003482	Relay, Auxillary (Series: 17)	$108.00 Special Order
	74006331	Harness, Sensor/lock (Series: 12)	$25.70 Special Order

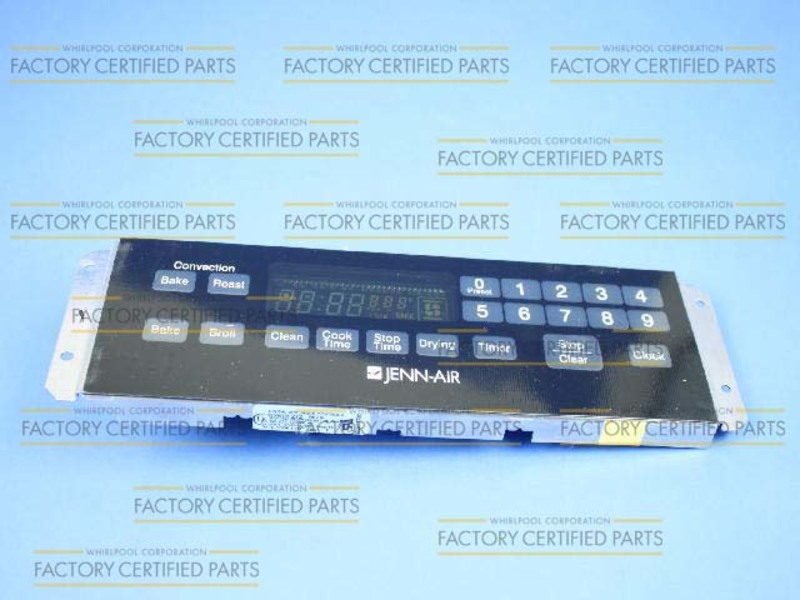

	WP5760M301-60	Clock W/overlay (blk) (Series: 10)	$684.90 Special Order
	74007250	Overlay (blk) (Series: 14)	$30.20 Special Order
	74009297	Harness, Main (Series: 17)	$30.80 Special Order
	WP5760M302-60	Clock W/overlay (blk) (Series: 17)	$295.50 Special Order
	74006133	Harness, Sensor/lock (Series: 10)	$25.30 Special Order

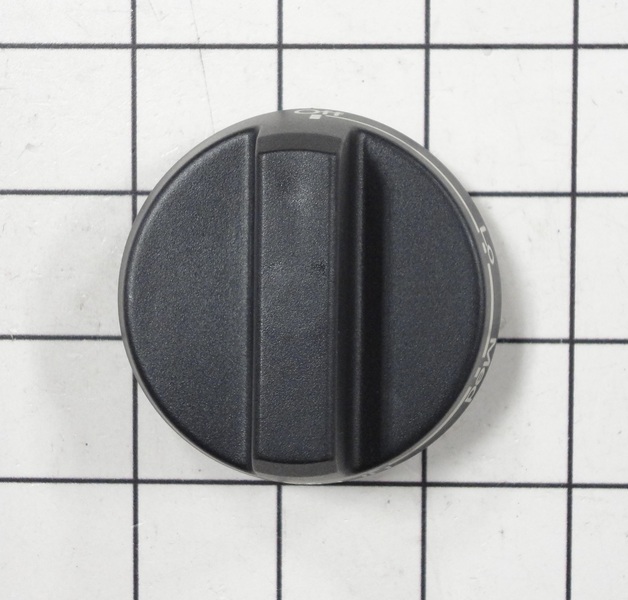

6	WP71001057	Knob, Valve (Series: 10)	$16.20  In-Stock Retail: $15.75
7	3801F625-51	Bracket, Control Panel (Series: 10)	$4.40 Special Order
	WP98008545	Screw (8abx1/2``-blk) (Series: 10)	$11.60  In-Stock Retail: $11.31
8	71001056	Bezel, Knob (ss) (Series: 10)	$25.90 Special Order
9	WP7101P338-60	Screw (8bx3/8-ni) (Series: 10)   (Replaces: 7101P338-60)	$4.40 Special Order
	3801F763-51	Bracket, Control (Series: 10)	$25.20 Special Order
10	74005808	Tube, Vent (upr) (Series: 10)	$19.00 Special Order
11	Y052721	Nut (Series: 10)	$15.10 Special Order
	71001764	Pin, Locator (Series: 10)	$7.30 Special Order
12	Y704977	Nut, 5/8`` Hex (Series: 10)	$4.40 Special Order
	Y704947	Washer (Series: 10)	$4.40 Special Order
	3401F066-19	Pan, Grill (rt) (Series: 10)	$24.40 Special Order
	3401F065-19	Pan, Grill (lt) (Series: 10)	$21.80 Special Order
13	74009641	Top, Main (stl) (Series: 19)	Call for Availability
	74009641	Top, Main (stnls) (Series: 10)	$253.90 Special Order
14	WP489128	Screw (Series: 10)	$6.70 Special Order
	7112P150-60	Clip, Terminal Block (Series: 10)	$12.70 Special Order
15	74006091	Block, Ceramic W/wires (rt) (Series: 10)	$33.90 Special Order
	74006092	Block, Ceramic W/wires (lt) (Series: 10)	$33.90 Special Order
16	WP31986601B	Switch, Oven Light (blk) (Series: 10)	$43.20 Special Order
	WP3147265	Switch, Fan (blk) (Series: 10) (Replaces: 71002958)	$90.10 Special Order
17	3801F658-51	Bracket, Grill Pan (Series: 10)	$4.40 Special Order
	W10828565	Screw, Black (Series: 10)	$4.80 Special Order
18	74006061	Grill, Air (blk) (Series: 10)	Call for Availability
19	WP7101P338-60	Screw (8bx3/8-ni) (Series: 10)   (Replaces: 7101P338-60)	$4.40 Special Order
20	WP7101P338-60	Screw (8bx3/8-ni) (Series: 10)   (Replaces: 7101P338-60)	$4.40 Special Order
	74005756	Support, Control Panel (Series: 10)	$2.70 Special Order
