Whirlpool GI15NDXTB1 Parts List

Popular Searches: (Click to search)    16``  access  also  assembly  board  complete  control  drier  evaporator  grid  gum  main  order  pcs  plunger  pump  sealer  service  switch  valve


Select a Diagram

01 - Cabinet Liner And Door Parts

02 - Evaporator, Ice Cutter Grid And Water Parts

03 - Pump Parts

04 - Control Panel Parts

05 - Unit Parts, Optional Parts (not Included)

Select Diagram ... 01 - Cabinet Liner And Door Parts 02 - Evaporator, Ice Cutter Grid And Water Parts 03 - Pump Parts 04 - Control Panel Parts 05 - Unit Parts, Optional Parts (not Included)

01 - Cabinet Liner And Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	2313683	Use & Care Guide	Call for Availability
	2324311	Service & Wiring Sheet	Call for Availability
2	WP3400886	Screw 8-18 X 1 1/4	$4.80 Special Order
3	2185742	Bin, Door	Call for Availability
4	2185678	Spacer	$6.90 Special Order
5	2217394	Cover, Wiring	$53.60 Special Order
6	WP489442	Screw (Replaces: 489442)	$6.70 Special Order
7	W10163589	Door (stainless Steel)	$258.50 Special Order
	8201600	Door (black)	$491.00 Special Order
	8201599	Door (white)	Call for Availability
8	2185695	Cam, Door	$56.50 Special Order
9	W11223751	Assembly, Magnetic Catch	$34.00 Special Order
10	WP2189000	Hole Plug, Handle   (Replaces: 2189000)	$4.80 Special Order
11	WP692400	Nut, Push-in (Replaces: 692400)	$4.80  In-Stock Retail: $4.59
13	2217367	Gasket, Bottom	$54.70 Special Order
14	WP489503	Clamp	$7.10 Special Order
15	WP2217294	Gasket, Door	$157.60 Special Order
16	2185640	Sleeve, Hinge	$28.50 Special Order
18	2185710	Hinge, Top	$55.90 Special Order
19	2185709	Shim, Hinge	$7.50 Special Order

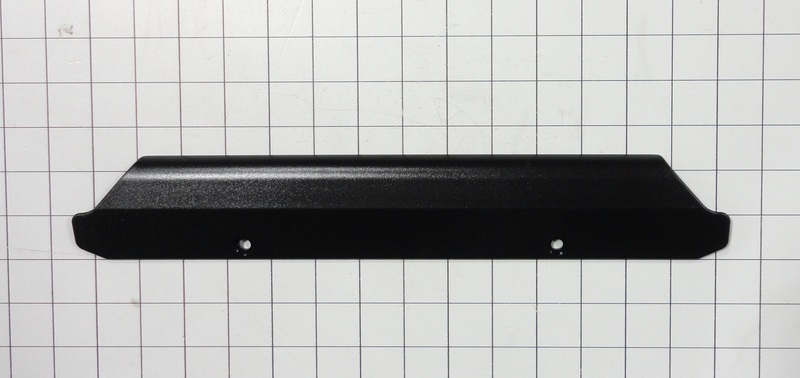

20	WP2208493B	Handle, Door (black)	$89.10  In-Stock Retail: $86.88
	WP2208493W	Handle, Door (white)	$88.00 Special Order
	2208493AP	Handle, Door (apollo Grey)	$38.70 Special Order
21	3400240	Nut, Leg Leveler	$13.70 Special Order
22	WPW10136199	Assembly, Unit Cover	$59.80 Special Order
23	8281188	Screw (white)	$6.70 Special Order
	8281186	Screw (black)	$5.60 Special Order
	8281184	Screw (stainless)	Call for Availability
24	2185655W	Filler, Endcap Left Side (white)	$7.60 Special Order
	2185655B	Filler, Endcap Left Side (black)	$7.60 Special Order
	2185655AP	Filler, Endcap Left Side (apollo Grey)	$35.80 Special Order
	2185656W	(filler, Endcap Right Side) (white)	$7.80 Special Order
	2185656B	(filler, Endcap Right Side) (black)	$8.20 Special Order
	2185656AP	Filler, Endcap Right Side (apollo Grey)	$33.00 Special Order
25	W10532250	Pad, Foam	$6.80 Special Order
26	2185691	Channel, Wiring	$10.00  In-Stock Retail: $9.70
27	8303810	Badge (whpl.gold)	$43.40 Special Order
28	WP2185989	Tube, Drain	$67.50 Special Order
29	W11420408	Scoop	$12.90 Special Order
30	WP3400884	Screw 8-18 X 5/8	$4.80 Special Order
33	2185711	Hinge, Bottom	$57.00 Special Order
34	2185712	Pin, Hinge	$30.70 Special Order
35	WP250830	Screw, Ground 8-32 X 1/2	$4.80 Special Order
37	WP488366	Clip, Water Tube	$7.10  In-Stock Retail: $6.86
38	348689	Screw 8-18 X 3/4	$46.60 Special Order
39	WP999367	Screw	$4.80 Special Order
40	2185927	Holder, Scoop	$52.90 Special Order
41	681534	Thumbscrew	$8.20 Special Order
42	8193716	Leg, Leveler (4)	$52.40  In-Stock Retail: $51.04
44	2929702B	Top (black)	$152.40 Special Order
	2929702W	Top (white)	$100.10 Special Order
45	2185690	Shield, Electrical	$9.50 Special Order
46	W11624957	Gasket, Top Panel	$77.70 Special Order
47	WP2185571W	Grill, Front (white)	$79.90 Special Order
	WP2185571B	Grill, Front (black)	$141.30 Special Order
48	WP489474	Screw 8-18 X 1   (Replaces: 489474)	$4.90 Special Order
