05 - Gas Controls   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP74009857	Screw, T-stat/valve Mtg (Series: 10)	$4.50 Special Order
	74010752	Valve, 12k (copreci) (Series: 10)	Call for Availability
	74010751	Valve, 16k (copreci) (Series: 10)	$176.00 Special Order
	WP7502P499-60	Valve, Burner (5k Copreci) (Series: 10)	$170.00 Special Order
2	WPW10406243	Base, Burner (5k) (Series: 10) (Replaces: 8286181 74007411)	$24.40  In-Stock Retail: $23.75
	WP400021-1	Screw, Self Tapping (Series: 10) (Replaces: 74007410)	$6.70  In-Stock Retail: $6.50
	WPW10406797	Base, Burner (Series: 10) (Replaces: 8286182 74007698)	$55.80  In-Stock Retail: $54.36
	WPW10406878	Base, Burner (16k) (Series: 10) (Replaces: 8286183 W10406878 74007413)	$67.00  In-Stock Retail: $65.32
3	WP74007925	Cap, Burner (med-blk) (Series: 10) (Replaces: 74007925)	$62.90  In-Stock Retail: $61.33
	WP3191898	Cap, Burner (smr-blk) (Series: 10) (Replaces: 74007416)	$44.10  In-Stock Retail: $42.99
	WPW10154101	Cap, Burner (lrg-blk) (Series: 10) (Replaces: W10154101 74007414)	$79.50 Special Order
4	W11693756	Screw (8abx19/32-zn) (Series: 10)	$8.70 Special Order
	2616N343-50	Panel, Manifold (stl) (Series: 10)	$136.10 Special Order
	74008761	Spacer, Snap-in (Series: 10)	$5.40 Special Order

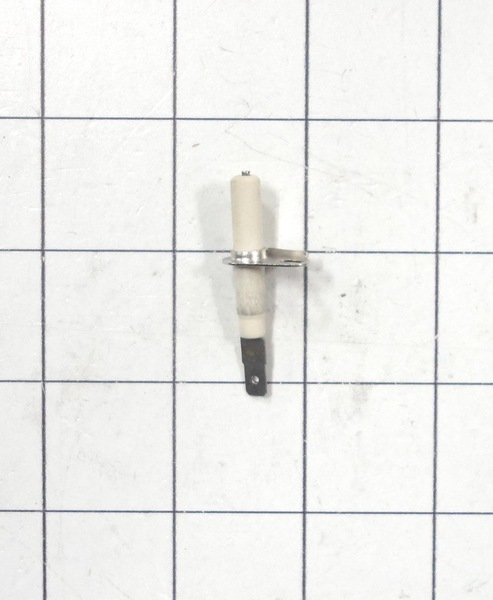

5	WP74009958	Ignitor, Top Burner Assy. (Series: 10) (Replaces: 74009958)	$21.00  In-Stock Retail: $20.45
6	WP74009099	Orifice Holder/tube Assy.(rf) (Series: 10)	$78.80 Special Order
	7527P097-60	Orifice Holder/tube Asy (ctr) (Series: 10)	$76.40 Special Order
	WP7527P100-60	Orifice Holder/tube Asy (lr) (Series: 10)	$86.50 Special Order
	7527P101-60	Orifice Holder/tube Asy (lf) (Series: 10)	Call for Availability

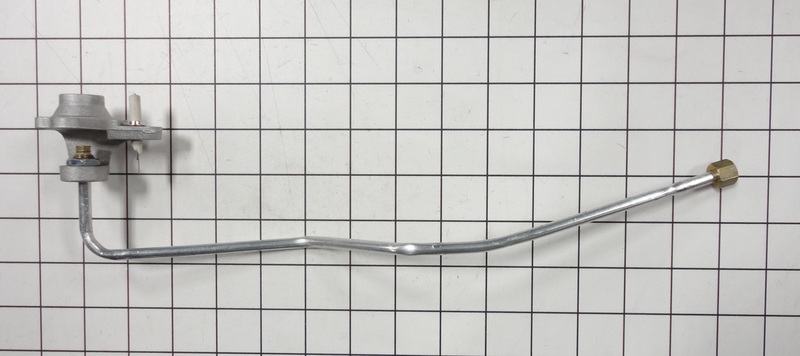

	W10154209	Orifice Holder/tube Assy.(rr) (Series: 10)	$92.40 Special Order

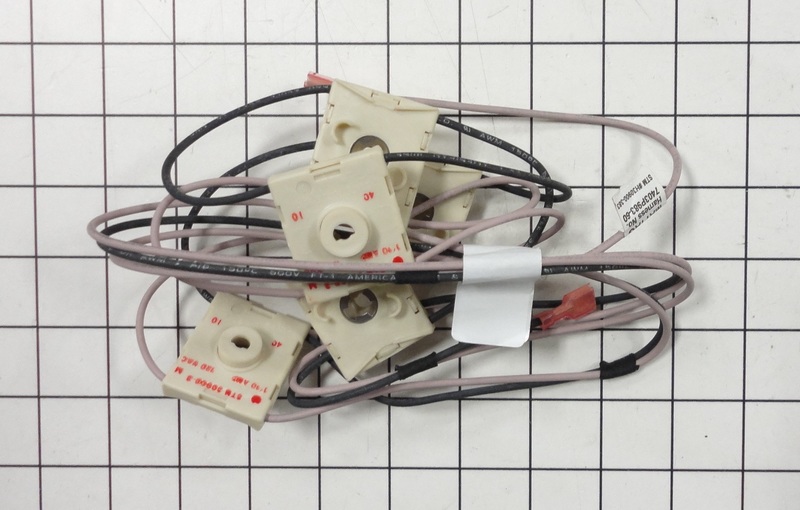

7	WP74010753	Harness, Switch (5 Valve) (Series: 10)	$134.20 Special Order
8	74008815	Pipe, Manifold (5 Valve) (Series: 10)	$47.70 Special Order
9	7506P519-60	Tubing, Supply (Series: 10)	$25.70 Special Order
10	7510P081-60	Regulator, Pressure (Series: 10)   (Replaces: 74005560)	$93.90 Special Order
	3801F691-51	Bracket, Regulator (Series: 10)	$5.40 Special Order
11	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.70  In-Stock Retail: $8.47
	74009098	Module, Spark (5) (Series: 10)	$229.50 Special Order
12	WP74009147	Knob, Valve (chr) (Series: 10) (Replaces: 74009147)	$27.60  In-Stock Retail: $26.85
