Maytag JDR8880RDS Parts List

Popular Searches: (Click to search)    16k  base  block  broiler  bulb  burner  door  insert  kit  long  module  oven  pan  replacement  screw  self  sensor  spark  tapping  terminal


Select a Diagram

01 - Cabinet

02 - Cavity

03 - Control Panel/top Assembly

04 - Door/drawer (stl)

05 - Gas Controls

06 - Supplemental Information

07 - Wiring Information

Select Diagram ... 01 - Cabinet 02 - Cavity 03 - Control Panel/top Assembly 04 - Door/drawer (stl) 05 - Gas Controls 06 - Supplemental Information 07 - Wiring Information

01 - Cabinet   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	4005F754-51	Cover, Main Wire (ele) (Series: 10)	$91.50 Special Order
2	74008760	Cover, Wire (lwr) (Series: 10)	$25.70 Special Order
3	3605F146-51	Plate, Conduit Reinforcement (Series: 10)	$4.20 Special Order
4	4005P704-51	Panel, Access (Series: 10)	$5.20 Special Order
5	WP7101P485-60	Screw (Series: 10)	$19.90 Special Order
	WP3801F656-51	Bracket, Anti-tip (Series: 10) (Replaces: 74005564)	$4.40  In-Stock Retail: $4.20
6	W10190170	Cord, Power (Series: 10)	$54.70 Special Order
7	74008690	Spacer, Side Panel (Series: 10)	$13.00 Special Order
8	W11562931	Gasket (Series: 10)	$58.70  In-Stock Retail: $57.21
9	WP74010551	Receiver, Hinge (Series: 10)	$7.80 Special Order
10	WP4159193	Screw (Series: 10)	$2.50  In-Stock Retail: $2.41
11	74008701	Retainer, Side (Series: 10)	$23.80 Special Order
	7002P494-60	Insulation, Side Panel (Series: 12)	$25.70 Special Order
	3804F316-51	Retainer, Side (Series: 12)	$25.80 Special Order
	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.70  In-Stock Retail: $8.47
12	W10792991	Latch, Door Lock (Series: 10)	$211.00 Special Order
	W10792991	Latch, Door Lock (Series: 13)	$211.00 Special Order
	74003975	Screw (8abx3/8-blk) (Series: 10)	$8.70 Special Order
	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.70  In-Stock Retail: $8.47
13	WPW10245259	Block, Terminal (Series: 10) (Replaces: 7401P039-60)	$21.30  In-Stock Retail: $20.75
14	W11665456	Leg, Leveling (Series: 10)   (Replaces: 74002373)	$17.00  In-Stock Retail: $16.54
15	74008762	Bottom, Wire Cover (Series: 10)	$7.80 Special Order
16	74009675	Back, Main (Series: 10)	$47.70 Special Order
17	74009538	Screw (Series: 10)	$13.70 Special Order
	74008710	Panel, Side (blk) (Series: 10)	$28.90 Special Order
18	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.70  In-Stock Retail: $8.47

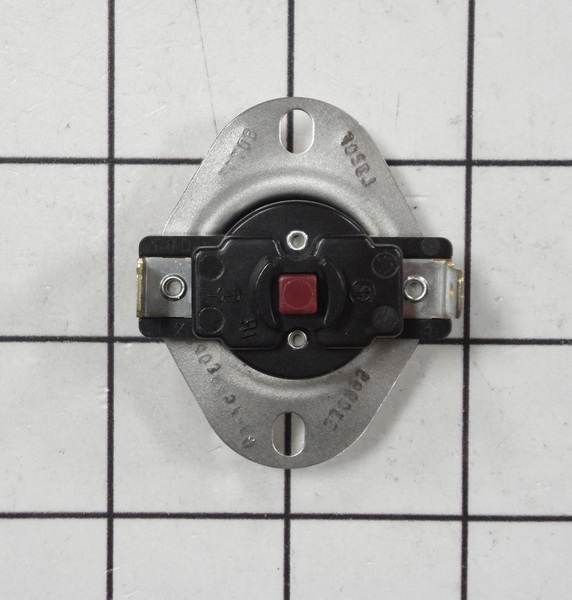

	74008715	Switch, Limiter Thermal (Series: 10)	$135.70 Special Order
19	WP7103P027-60	Nut, Terminal Block (Series: 10)	$4.80 Special Order
20	74008798	Screw W/shoulder (no.8) (Series: 10)	$8.20 Special Order
21	W11233072	Screw, 8 X 1/2 (Series: 10)	$8.70  In-Stock Retail: $8.47
	74008687	Runner, Service Drawer (Series: 10)	$4.40 Special Order
22	WP74004078	Roller, Drawer (Series: 10)   (Replaces: 74004078)	$7.40 Special Order
23	WP74005231	Shaft, Storage Drawer Roller (Series: 10)   (Replaces: 74005231)	Call for Availability
24	74008688	Stop, Drawer (Series: 10)	Call for Availability
