Maytag JDB3600AWS2 Parts List

Popular Searches: (Click to search)    2oz  assembly  bracket  cabinet  cable  door  drain  fill  hose  includes  metal  paint  pressurized  pump  seal  spray  touch  undercounter  valve  white


Select a Diagram

01 - Door And Panel Parts

02 - Control Panel And Latch Parts

03 - Inner Door Parts

04 - Fill And Overfill Parts

05 - Tub And Frame Parts

06 - Pump, Washarm And Motor Parts

07 - Upper Wash And Rinse Parts

08 - Heater Parts

09 - Upper Rack And Track Parts

10 - Lower Rack Parts

11 - Optional Parts (not Included)

Select Diagram ... 01 - Door And Panel Parts 02 - Control Panel And Latch Parts 03 - Inner Door Parts 04 - Fill And Overfill Parts 05 - Tub And Frame Parts 06 - Pump, Washarm And Motor Parts 07 - Upper Wash And Rinse Parts 08 - Heater Parts 09 - Upper Rack And Track Parts 10 - Lower Rack Parts 11 - Optional Parts (not Included)

01 - Door And Panel Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10208701	Use & Care Guide (spanish)	Call for Availability
	W10208727	Instructions, Installation	Call for Availability
	W10247484	Energy Guide	Call for Availability
	W10158347	Tech Sheet (french)	Call for Availability
	W10142826	Tech Sheet (english)	Call for Availability
	W10208700	Use & Care Guide (english/french)	Call for Availability
2	W11612302	Arm, Hinge (left)	$104.00  In-Stock Retail: $101.45
	W11612303	Arm, Hinge (right)   (Replaces: 8534853)	$104.00  In-Stock Retail: $101.45
3	8268983	Stiffener, Door	$28.80 Special Order
4	W10234565	Insulation, Door	$44.00 Special Order
5	W10287593	Access Panel	$93.50 Special Order
6	W10234559	Panel, Full Front (includes Items 4, 13, 14, 15, 16 & 17) (pro-stainless)	$263.90 Special Order
	W10234556	Panel, Full Front (includes Items 4, 13, 14, 15, 16 & 17) (black)	$216.40 Special Order
7	W10831329	Insulation, Toe Panel	$25.20 Special Order
8	W10871196	Toe Panel (includes Items 7 & 9)	$99.60  In-Stock Retail: $97.11
9	WP8269016	Clip, Grounding	$6.50 Special Order
10	WP302868	Screw   (Replaces: 302868)	$4.80  In-Stock Retail: $4.59
11	WP489069	Screw	$4.80 Special Order
12	WP3400071	Screw	$4.80 Special Order
13	W11636815	Nameplate	$27.00 Special Order
14	W11113792	Panel, Custom 6``	$188.40 Special Order
15	WP8564951	Stud   (Replaces: 8564951)	$12.50 Special Order
16	W10142904	Plate, Backing	$35.30 Special Order
17	W10123421	Screw	$8.20 Special Order
18	W10194840	Handle (pro-stainless)	$95.80 Special Order
	W10208769A	Handle (stainless (includes 19, 20 & 21))	$85.00 Special Order

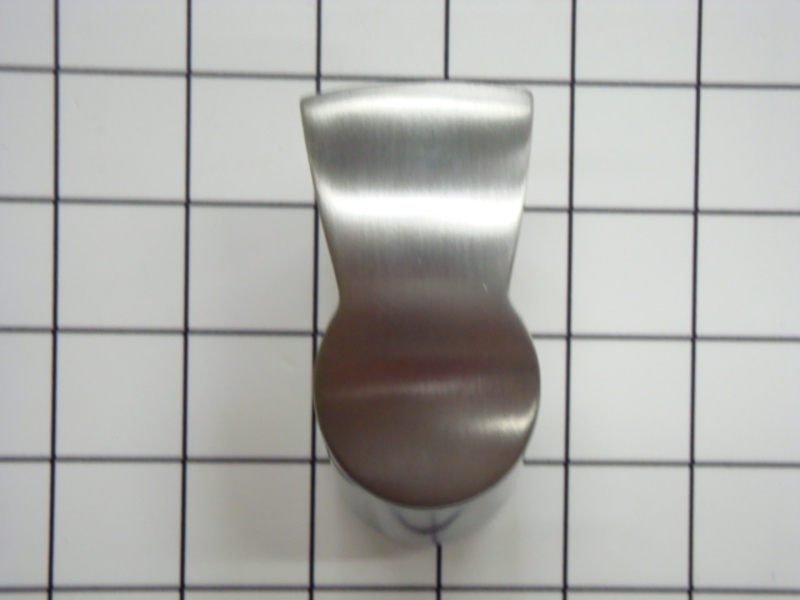

19	W10194837	End Cap (r.hand)	$120.70 Special Order

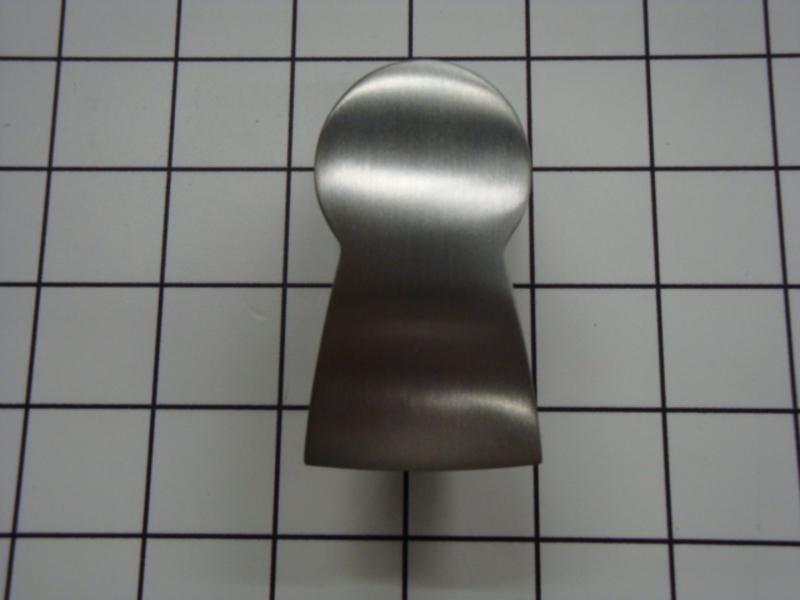

	W10194838	End Cap (l.hand)	$120.70 Special Order
20	W10276608	Screw	$29.70 Special Order
21	WP8534008	Set Screw	$4.60 Special Order
22	W10831329	Pad, Barrier	$25.20 Special Order
