Maytag JDB3010AWT Parts List

Popular Searches: (Click to search)    arm  assembly  assy  dispenser  door  grommet  link  lwr  motor  rack  rinse  seal  spring  upper  upr  valve  wash  water  wax  wheel


Select a Diagram

01 - Control Panel

02 - Door

03 - Pump & Motor

04 - Rinse Aid & Soap Dispenser

05 - Track & Rack Assembly

06 - Tub

07 - Wiring Information

Select Diagram ... 01 - Control Panel 02 - Door 03 - Pump & Motor 04 - Rinse Aid & Soap Dispenser 05 - Track & Rack Assembly 06 - Tub 07 - Wiring Information

02 - Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	99001659	Insert, Front Panel (blk/wht) (Series: 10)	$84.10 Special Order
2	Y913184	Filler, Front Panel (Series: 10)	$1.70 Special Order
3	Y913157	Screw (Series: 10)	$4.40 Special Order

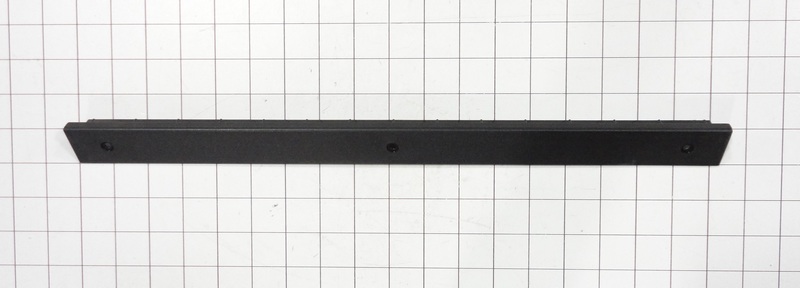

	99001350	Trim, Side (blk) (Series: 10)	Call for Availability
	Y912936	Trim, Bottom (blk) (Series: 10)	$20.70 Special Order
4	99002176	Door, Outer (Series: 10)	$21.30 Special Order
	99001688	Ground Wire, Reinforcement (Series: 10)	$4.40 Special Order
	912024	Rivet (Series: 10)	$4.40 Special Order
5	99002188	Retainer, Wire (Series: 10)	$4.40 Special Order
	WP99002362	Spacer, Foam (Series: 10)	$4.50 Special Order
	WP33002917	Screw, No.8x1/2 Hex Washer Head (Series: 10)	$4.80 Special Order
6	99001899	Hinge (rt) (Series: 10)	Call for Availability
	6-914524	Hinge (lt) (Series: 10)	$17.90 Special Order
	99001075	Screw (Series: 10)	$4.00 Special Order
7	WP912652	Spring, Door (Series: 10) (Replaces: 912652)	$5.80  In-Stock Retail: $5.62
8	WP6-920580	Insulation, Door (Series: 10)	$20.20 Special Order
9	WPY912620	Screw (Series: 10)	$4.80 Special Order
	6-915876	Door, Inner (Series: 25)	$145.90 Special Order
	99001775	Door, Inner (w/vent Assy) (Series: 10)	Call for Availability
10	Y912668	Bar, Reinforcement (Series: 10)	$4.40 Special Order
11	99002413	Insulation, Access Panel (Series: 10)	$25.50 Special Order
12	WP912653	Link, Door Spring (Series: 10) (Replaces: 912653)	$4.80  In-Stock Retail: $4.59
13	912637	Panel, Access (blk) (Series: 10)	$39.70 Special Order
	WP6-912366	Screw (Series: 10)	$4.80 Special Order
14	WPW10117748	Foam Strip, Insulation (Series: 10) (Replaces: 903233)	$19.10  In-Stock Retail: $18.56
15	WPW10339879	Strap, Cable (Series: 10)	$4.80 Special Order
	912641	Shield, Tub (blk) (Series: 10)	$40.90 Special Order
16	WP489128	Screw (Series: 10)	$6.70  In-Stock Retail: $6.50
	99001444	Strap, Harness (Series: 10)	$4.40 Special Order
17	99001805	Grommet, Vent (Series: 10)	$4.40 Special Order
18	99001806	Retainer, Grommet (Series: 10)	$4.40 Special Order
19	99001807	Motor, Wax (Series: 10)	$26.20 Special Order
20	99001783	Seal, Vent Back (Series: 10)	Call for Availability
