Frigidaire FRSH6KR5JW0 Parts List

Popular Searches: (Click to search)    115v  assy  container  cover  crisper  defrost  door  evap  fan  ice  kit  motor  pan  seal  solenoid  thermostat  triple  valve  water  white


Select a Diagram

03 - Freezer Door

05 - Refrigerator Door

07 - Cabinet

09 - Shelves

11 - Controls

13 - System

15 - Ice & Water Dispenser

17 - Ice Container

19 - Ice Maker

01 - Cover

Select Diagram ... 03 - Freezer Door 05 - Refrigerator Door 07 - Cabinet 09 - Shelves 11 - Controls 13 - System 15 - Ice & Water Dispenser 17 - Ice Container 19 - Ice Maker 01 - Cover

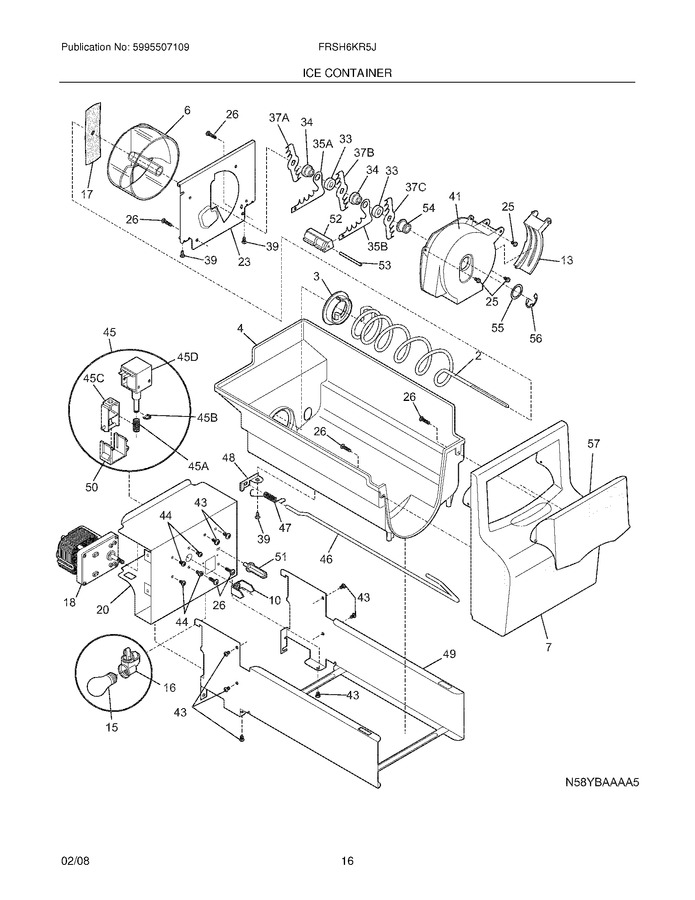

17 - Ice Container   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
2	241716101	Auger-ice	$77.90  In-Stock Retail: $75.99
3	241685201	Cam-drive	$30.30  In-Stock Retail: $29.49
4	241734001	Container-ice,bucket Only	$76.40  In-Stock Retail: $74.49
6	241685101	Drum-ice Disp	$37.50  In-Stock Retail: $36.49
7	241734201	Front-ice Container	$62.10  In-Stock Retail: $60.49
10	241726501	Bar-drive	$42.60  In-Stock Retail: $41.49
13	241885001	Gate (Replaces: 241685301)	$54.90  In-Stock Retail: $53.49
15	316538904	Light Bulb (Replaces: 241555401)	$13.90  In-Stock Retail: $13.49
16	241559801	Socket-light	$51.80 Special Order
17	241684503	Drive Blade (Replaces: 241684501)	$11.80  In-Stock Retail: $11.49
F18	242221501	Motor-auger,115v (Replaces: 241676202)	$172.49  In-Stock Retail: $172.49
20	241734802	Cover-motor	$111.80 Special Order
23	241684001	Plate-front	$108.20 Special Order
25	241690701	Screw,hex Washer Head ,8-32t X 0.375	$9.80 Special Order
26	241690602	Screw,cr Pan Hd ,10-16 X 0.500   (Replaces: 215503205)	$7.70 Special Order
33	241684801	Spacer	$6.20 Special Order
34	241689801	Spacer	$5.70  In-Stock Retail: $5.49
35A	241684301	Fixed Blade,round	$11.80 Special Order
35B	241684201	Fixed Blade,square	$12.30 Special Order
37A	241684101	Blade,crusher No.1	$14.90 Special Order
37B	241684102	Blade,crusher No.2	$14.90 Special Order
37C	241684103	Blade,crusher No.3	$14.90 Special Order
39	241690501	Screw	$11.80 Special Order
41	241885001	Housing-crusher (Replaces: 241685601)	$54.90  In-Stock Retail: $53.49
43	215296301	Screw,plask H/l ,no.6 X 3/8	$10.30 Special Order
44	218359202	Screw,pan Head ,8-32 X 0.250	$7.70  In-Stock Retail: $7.49
45A	241675901	Spring-solenoid	$4.70 Special Order
45B	241676001	E-ring-solenoid	$50.80 Special Order
45C	241676101	Actuator-solenoid	$46.70 Special Order
F45	241675704	Solenoid Assy,115v (Replaces: 241675701)	$78.99  In-Stock Retail: $78.99
F45D	241675803	Solenoid,115v (Replaces: 241675801)	$79.50  In-Stock Retail: $77.49
46	241716002	Control Rod	$31.80 Special Order
47	241731801	Spring-control Rod	$10.30 Special Order
48	241684602	Bracket-control Rod	$77.40 Special Order
49	241734501	Rail Assy	$133.80  In-Stock Retail: $130.49
50	241675601	Guide-solenoid	$58.00  In-Stock Retail: $56.49
51	241676301	Rotation Stop	$36.70 Special Order
52	241684901	Spacer-fixed Blades	$20.50 Special Order
53	241690402	Pin-spiral,fixed Blades	$13.90  In-Stock Retail: $13.49
54	241685001	Nut-auger	$14.40  In-Stock Retail: $13.99
55	241690306	Washer	$35.90 Special Order
56	241690201	E-ring	$13.90 Special Order
57	241734101	Door-access	$34.90 Special Order
NI	241860803	Ice Container Assy,w/moving Parts	$158.49  In-Stock Retail: $158.49
	240507202	Deflector-ice Container	$45.10 Special Order
	240352602	Wiring Harness,internal,wiring Harness	$158.30 Special Order
