Whirlpool GH9184XLB0 Parts List

Popular Searches: (Click to search)    charcoal  cushion  driver  filter  humidity  interlock  magnetron  micro  motor  mountng  mtr  rack  screw  sensor  spacer  stirrer  switch  top  turntable  waterproof


Select a Diagram

01 - Control Panel Parts

02 - Door Parts

03 - Interior And Ventilation Parts

04 - Air Flow Parts

05 - Magnetron And Turntable Parts

06 - Cabinet And Installation Parts

Select Diagram ... 01 - Control Panel Parts 02 - Door Parts 03 - Interior And Ventilation Parts 04 - Air Flow Parts 05 - Magnetron And Turntable Parts 06 - Cabinet And Installation Parts

03 - Interior And Ventilation Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8184132	Reflector, Lamp (right)	$34.60 Special Order

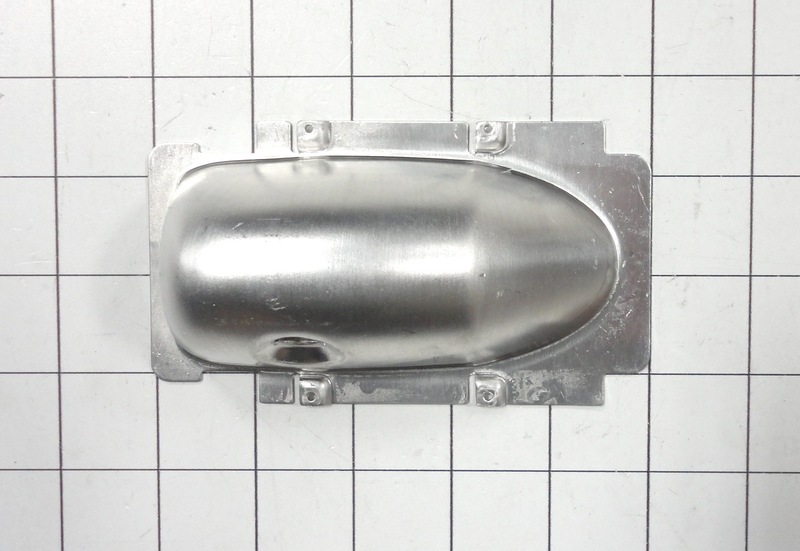

	8184194	Reflector, Lamp (left)	$4.50 Special Order
2	8204670	Lamp	$20.20  In-Stock Retail: $19.61
3	W10112514A	Filter, Charcoal (Replaces: 8184002)	$20.20  In-Stock Retail: $19.69
4	W10113040A	Filter, Grease	$22.50  In-Stock Retail: $21.89
5	8205934	Plate, Bottom	$78.90 Special Order
6	8184141	Glass, Lamp	$28.50 Special Order
7	8206438	Holder, Glass	$4.10 Special Order
8	W10211974	Switch, Micro Primary/secondary	$47.20  In-Stock Retail: $46.01
9	8184124	Cover, Inverter	$14.10 Special Order
10	W10211972	Switch, Micro (Replaces: 8206345 4393697)	$52.40  In-Stock Retail: $51.07
11	8169438	Spring, Interlock	Call for Availability
12	8205211	Plate, Cam	$4.40 Special Order
13	8185189	Support, Interlock	$32.70 Special Order

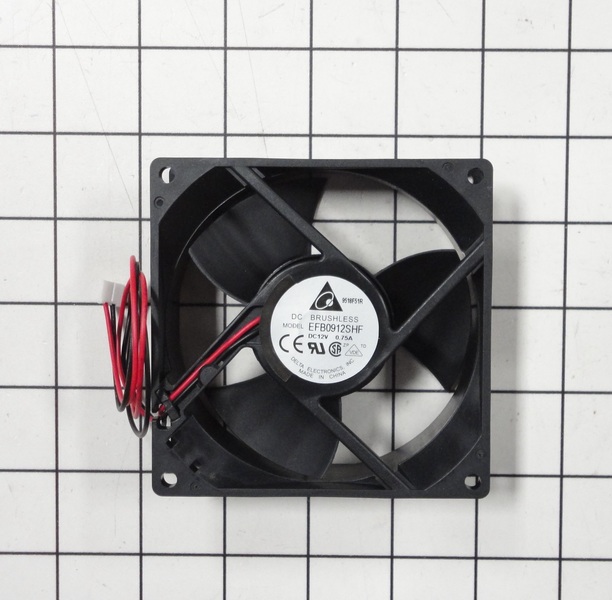

14	8184875	Fan, Dc 12 Volt	$65.70 Special Order
15	8184894	Housing, Fan	$90.70 Special Order
16	8204961	Inverter 40 W	$98.10 Special Order
17	8206565	Bracket, Holder	$33.60 Special Order

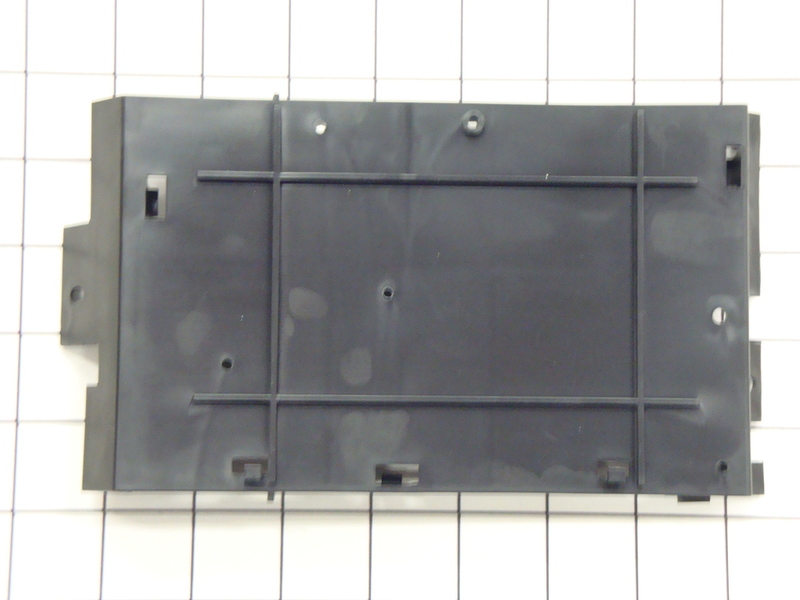

18	8184670	Holder, Inverter	$30.80 Special Order
19	8184122	Rod-locking Link	$4.40 Special Order
20	8184093	Capacitor, 125 V	$12.40 Special Order
21	W10217710	Inverter 1100 W	$230.70  In-Stock Retail: $224.98
22	8185031	Plate, Side	$27.40 Special Order
26	8184204	Capacitor	$21.60 Special Order
27	8184312	Holder, Fuse	$11.70 Special Order
28	W11707984	Fuse   (Replaces: W10138793 4393308)	$29.30  In-Stock Retail: $28.54

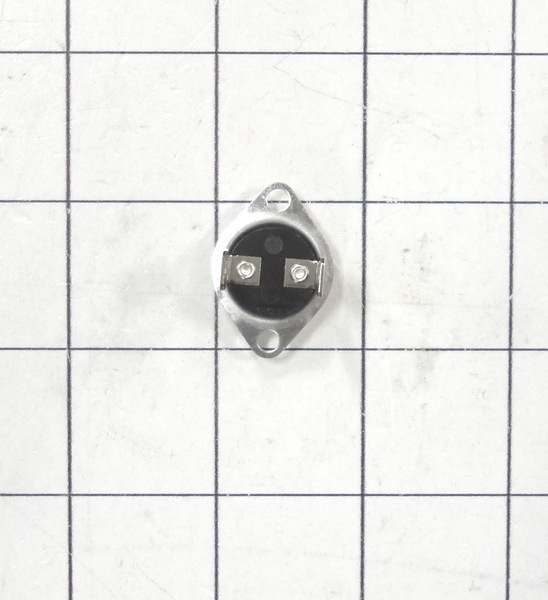

29	W10479659	Thermostat (Replaces: 8183998)	$58.20  In-Stock Retail: $56.71
30	8184199	Screw	$4.40 Special Order
31	W11380570	Screw	$9.00 Special Order
32	8184200	Screw	$4.40 Special Order
34	8169479	Screw	$4.80 Special Order
