Whirlpool GH8155XJT0 Parts List

Popular Searches: (Click to search)    black  capacitor  charcoal  door  filter  grille  handle  interlock  lamp  magnetron  micro  mountng  rectifier  screw  support  switch  top  turntable  vent  white


Select a Diagram

01 - Control Panel, Literature

02 - Door

03 - Interior And Ventilation

04 - Air Flow

05 - Magnetron And Turntable

06 - Cabinet And Installation, Optional

Select Diagram ... 01 - Control Panel, Literature 02 - Door 03 - Interior And Ventilation 04 - Air Flow 05 - Magnetron And Turntable 06 - Cabinet And Installation, Optional

04 - Air Flow   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8184638	Deflector, Air   (Replaces: 8169651)	$28.20 Special Order
2	8169557	Reflector, Air	$4.40 Special Order
3	8185083	Duct, Air	$50.40 Special Order
4	8204653	Bracket, Thermostat	$27.90 Special Order
5	8183697	Thermostat	Call for Availability
6	8184745	Housing, Lamp	$4.40 Special Order
7	8206232A	Lamp (Replaces: 8205586 8206443 4393681)	$5.20  In-Stock Retail: $4.99

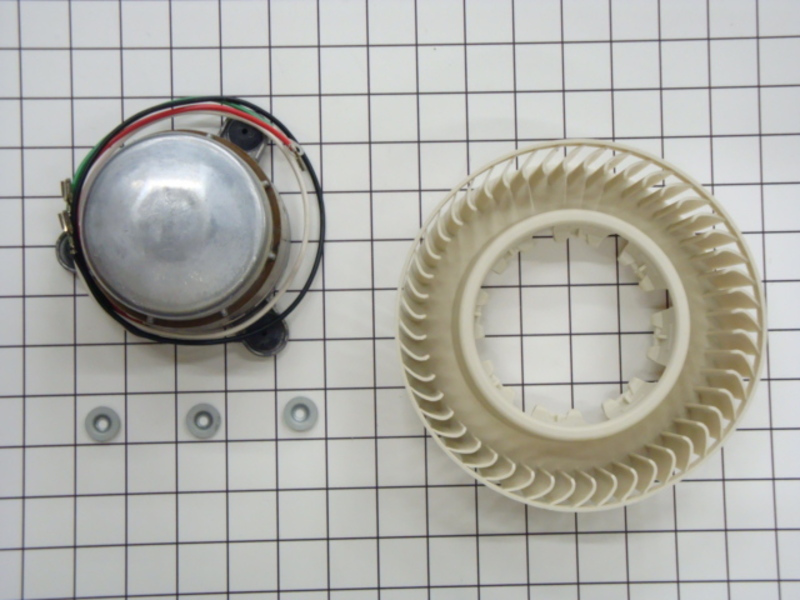

8	815176	Wheel, Fan	$153.70 Special Order
9	815176	Motor, Fan	$153.70 Special Order
10	8204754	Shield	$4.40 Special Order
11	8184624	Housing, Fan	$28.40 Special Order
13	8169474	Screw	$5.40 Special Order
14	8169478	Screw	$5.90 Special Order
15	W10841091	Screw	$5.70 Special Order
17	8206446	Humidity, Sensor (Replaces: 4393808)	$78.50  In-Stock Retail: $76.57
18	8169569	Cushion, Mtr	$5.10 Special Order
