Whirlpool GH6177XPT5 Parts List

Popular Searches: (Click to search)    driver  filter  grease  halogen  inverter  light  micro  mountng  screw  0  grille  lamp  primary  secondary  stainless  steel  switch  top  turntable  vent


Select a Diagram

01 - Control Panel Parts

02 - Door Parts

03 - Interior And Ventilation Parts

04 - Air Flow Parts

05 - Magnetron And Turntable Parts

06 - Cabinet And Installation Parts

Select Diagram ... 01 - Control Panel Parts 02 - Door Parts 03 - Interior And Ventilation Parts 04 - Air Flow Parts 05 - Magnetron And Turntable Parts 06 - Cabinet And Installation Parts

03 - Interior And Ventilation Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8184132	Reflector, Lamp (right)	$34.60 Special Order
	8184194	Reflector, Lamp (left)	$4.50 Special Order
2	8204670	Lamp (Replaces: 8185188)	$20.20  In-Stock Retail: $19.61
3	W10269458	Switch, Micro (Replaces: W10211973)	$28.30  In-Stock Retail: $27.57
4	W10113040A	Filter, Grease (Replaces: 8184001)	$22.50  In-Stock Retail: $21.89
5	W10244597	Plate, Bottom	$37.30 Special Order
6	8184141	Glass, Lamp	$28.50 Special Order
7	8206438	Holder, Glass	$4.10 Special Order
8	W10211972	Switch, Micro Primary/secondary	$52.40  In-Stock Retail: $51.07
9	W10110596	Cover, Inverter	$29.30 Special Order
10	W10211974	Switch, Micro	$47.20  In-Stock Retail: $46.01
11	8169438	Spring, Interlock	Call for Availability
12	8205211	Plate, Cam	Call for Availability
13	8185189	Support, Interlock	$32.70 Special Order
14	8184875	Fan, Dc 12 Volt	$65.70 Special Order
15	8184894	Housing, Fan	$90.70 Special Order

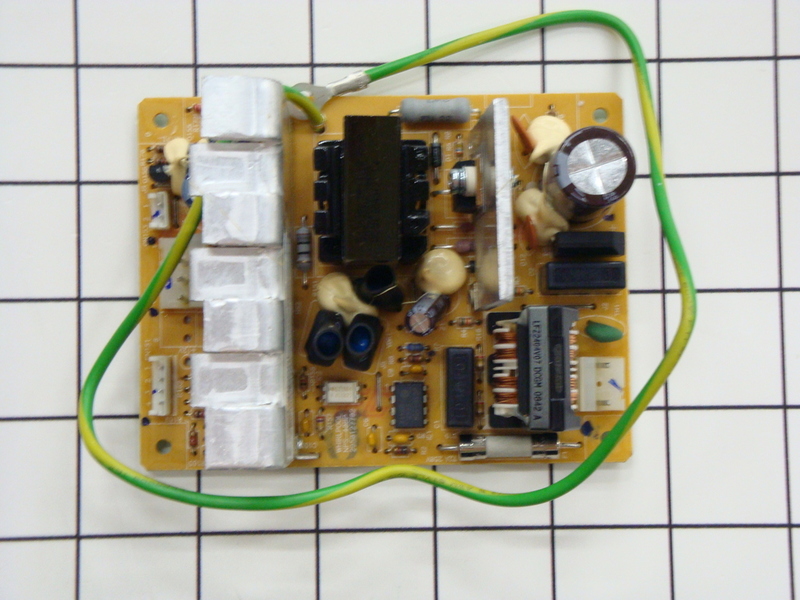

16	8204989	Inverter 40 W	Call for Availability
17	8206565	Bracket, Holder	$33.60 Special Order
18	8184670	Holder, Inverter	$30.80 Special Order
19	8185190	Rod-locking Link	Call for Availability
20	W10217709	Capacitor, 125 V	$39.20 Special Order
21	W10217710	Inverter 1100 W (Replaces: 8205093)	$230.70  In-Stock Retail: $224.98
22	8185031	Plate, Side	$27.40 Special Order
23	8184887	Cable	$96.60 Special Order
24	W10112514A	Filter, Charcoal	$20.20  In-Stock Retail: $19.69
25	8184204	Capacitor	$21.60 Special Order
26	W10117908	Holder, Fuse	$36.80 Special Order
27	W11707984	Fuse   (Replaces: W10138793)	$29.30  In-Stock Retail: $28.54
28	W10479659	Thermostat (Replaces: 8183998)	$58.20  In-Stock Retail: $56.71
29	8184199	Screw	$4.40 Special Order
30	W11380570	Screw	$9.00 Special Order
31	8184200	Screw	$4.40 Special Order
32	W10615910	Ribbon Cable (p2 To Cn701 On 1100 W Inverter)	$153.30  In-Stock Retail: $149.54
33	8169479	Screw	$4.80 Special Order
34	8205021	Ribbon Cable (p27 To Cn153 On 40 W Inverter)	$4.40 Special Order
35	8205022	Ribbon Cable (p4 To Cn151 On 40 W Inverter)	$37.20 Special Order
36	W10244598	Holder, Ferrite	$9.50 Special Order
37	8206086	Ferrite	$60.20 Special Order
