01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	N/A	Following May Be Purchased Do-it-yourself Repair Manuals	Call for Availability
	8533772	Guide, Use & Care	Call for Availability
	8533770	Sheet, Cycle Feature	Call for Availability
	8535833	Instructions Installation	Call for Availability
	677818L	Manual, Do-it- Yourself Repair (dryer)	$29.40 Special Order
	8541831	Wiring Diagram	Call for Availability
2	285909	Panel, Rear Console	$150.30 Special Order
3	WP3406725	Timer, 60 Hz. (Replaces: 3406725)	$210.00  In-Stock Retail: $204.79
4	3400859	Screw, Grounding (8-18 X 7/32)	$8.20 Special Order
5	WP3398094	Switch, Push-to-start (Replaces: 3398094)	$73.70  In-Stock Retail: $71.83
6	3391885	Connector, Edge	$54.00 Special Order
7	3395683	Connector (motor)	$33.80 Special Order
8	W10820038	Cap, End (r.h.) (white)	$51.50 Special Order
	279965	Cap, End (r.h.) (biscuit)	$40.30 Special Order
	279964	Cap, End (r.h.) (black)	$2.70 Special Order
9	8544897	Bracket, Control	$59.60 Special Order
10	WPW10139210	Screw, 8-18 X 5/16	$4.80  In-Stock Retail: $4.59
11	W10810477	Knob, Control (3) (biscuit)	$43.40 Special Order
	W10810477	Knob, Control (3) (silver) (Replaces: WP8544937 8544937)	Call for Availability
12	WP388326	Screw, Console (Replaces: 388326)	$4.80  In-Stock Retail: $4.59

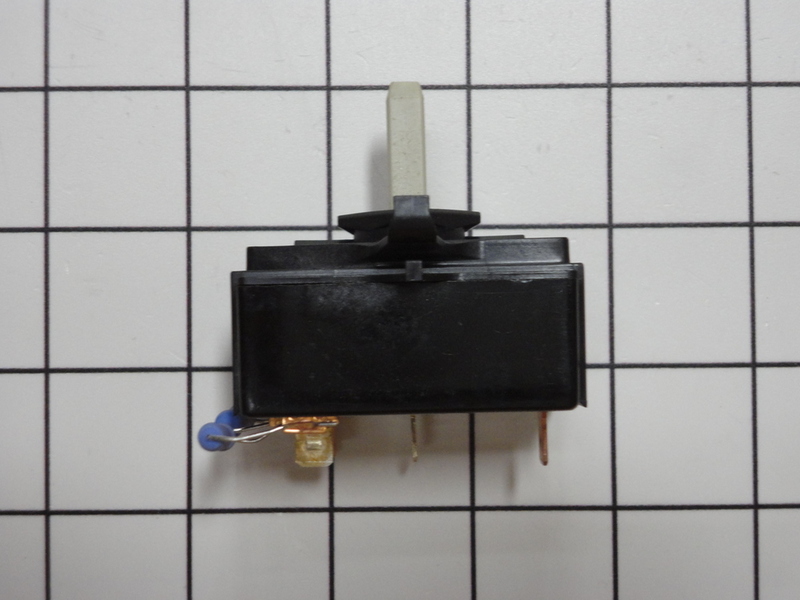

13	8528330	Switch, Temperature	$145.80 Special Order
14	WP3391018	Tie, Cable	$20.50 Special Order
15	WP694419	Buzzer, Mini   (Replaces: 694419)	$80.40  In-Stock Retail: $78.42
16	3397269	Connector, Timer	$17.90 Special Order
17	WP693995	Screw 8-18 X 3/8   (Replaces: 693995)	$4.80  In-Stock Retail: $4.59
18	3347243	Connector 6-circuit	$35.50 Special Order
19	8299956	Harness, Electric	$115.60 Special Order
20	8544957	Timer Knob Assembly (silver)	$33.90 Special Order
	8544958	Timer Knob Assembly (biscuit)	$37.50 Special Order
21	3405154	Switch, Wrinkle Shield	$94.60  In-Stock Retail: $92.28
22	WP8568314	Strap, Console	$4.80 Special Order
23	WP357213	Nut, Push-in (2) (Replaces: 357213)	$4.80  In-Stock Retail: $4.59
24	8535848	Top (white)	$115.20 Special Order
	8563990	Top (black)	$92.40 Special Order
	8563988	Top (biscuit)	$92.40 Special Order
25	3405152	Switch, End Of Cycle	$81.80 Special Order
26	W10820038	Cap, End (l.h.) (white)	$51.50 Special Order
	279965	Cap, End (l.h.) (biscuit)	$40.30 Special Order
	279964	Cap, End (l.h.) (black)	$2.70 Special Order
27	WP8544941	Knob, Push-to-start (silver)	$60.30 Special Order
	WP8544941	Knob, Push-to-start (biscuit)	$60.30 Special Order
28	WPW10119283	Cover, Terminal Block	$77.30 Special Order
29	WPW10476828	Control, Electronic (Replaces: 8558178 3390537)	$219.20  In-Stock Retail: $213.76
30	WP90767	Screw, 8-18 X 3/8	$4.80  In-Stock Retail: $4.59
31	8546000	Panel, Control (includes Illus. 32) (gold)	$96.40 Special Order
	8545999	Panel, Control (includes Illus. 32) (silver)	$106.10 Special Order
32	8533990	Medallion	$32.20 Special Order
33	3936144	Connector	$13.70 Special Order
35	WP488729	Screw, 8-18 X 1/2	$4.80  In-Stock Retail: $4.59
37	3401144	Connector, (pts Relay)	$8.30 Special Order
41	WP3394427	Clip, Harness	$4.80 Special Order
42	WP8536939	Spring Clip (Replaces: 8536939)	$4.80  In-Stock Retail: $4.59
44	WP94614	Terminal (female)	$4.80 Special Order
