Maytag HYE3657AYW Parts List

Popular Searches: (Click to search)    115v  3hp  4750w  60hz  belt  brace  cylinder  door  element  filter  glide  heating  kit  lint  motor  pulley  reinforcement  roller  switch  tumbler


Select a Diagram

01 - Cabinet

02 - Control Panel

03 - Door

04 - Door (series 14 Except Hye3658azw)

05 - Heater

06 - Motor & Drive

07 - Supplemental Information

08 - Tumbler

09 - Tumbler (series 12)

10 - Wiring Information

11 - Wiring Information (series 13)

12 - Wiring Information (series 15 Elec)

Select Diagram ... 01 - Cabinet 02 - Control Panel 03 - Door 04 - Door (series 14 Except Hye3658azw) 05 - Heater 06 - Motor & Drive 07 - Supplemental Information 08 - Tumbler 09 - Tumbler (series 12) 10 - Wiring Information 11 - Wiring Information (series 13) 12 - Wiring Information (series 15 Elec)

02 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	31001555	Panel, Control (Series: 10)	$60.50 Special Order
2	WP90767	Screw (Series: 10)	$4.80  In-Stock Retail: $4.59
	21001519	Endcap (wht-lt) (Series: 10)	$19.00 Special Order
3	WP90767	Screw (Series: 10)	$4.80  In-Stock Retail: $4.59
	21001523	Endcap (wht-rt) (Series: 10)	$12.70 Special Order
4	33001848	Signal, End Of Cycle (chime) (Series: 10)	$27.80 Special Order
5	WP37001184	Knob/skirt, Timer (Series: 10)	$38.40 Special Order
6	31001190	Switch, Two Position Rotary (Series: 10)	Call for Availability
	WP90767	Screw (Series: 10)	$4.80  In-Stock Retail: $4.59
7	21002005	Frame, Control Panel (wht) (Series: 10)	$31.80 Special Order
8	21001527	Shield, Rear (back Panel) (Series: 10)	$21.10 Special Order
	WP90767	Screw (Series: 10)	$4.80  In-Stock Retail: $4.59
9	WP31001484	Resistor Asm (domestic/timer) (Series: 10)	$4.50 Special Order
	WP31001731	Timer (Series: 10)	$161.50 Special Order
	WP90767	Screw (Series: 10)	$4.80  In-Stock Retail: $4.59
10	21001603	Shield, Control (3 Pos.) (Series: 10)	$4.40 Special Order
11	21001974	Knob, Selector (Series: 10)	$7.60 Special Order
12	31001447	Switch, Temperature (Series: 10)	$17.90 Special Order
	31001704	Resistor Asm Temperature (Series: 15)	$65.50 Special Order

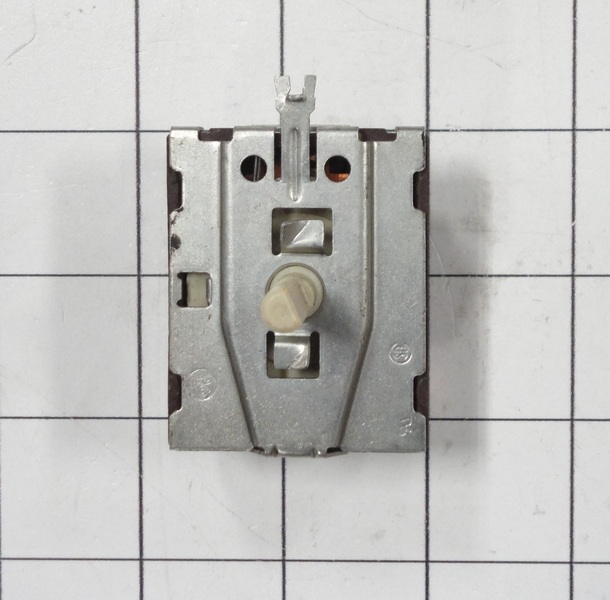

	53-4395	Switch, Temperature (Series: 15)	$59.80 Special Order
	31001483	Resistor Asm Temperature (Series: 10)	$4.40 Special Order
	WP90767	Screw (Series: 10)	$4.80  In-Stock Retail: $4.59
13	WP74010226	Switch, Rocker (wht) (Series: 10)	$64.80 Special Order
14	53-4450	Harness, Wiring (Series: 15)	$32.40 Special Order
	31001488	Harness, Wire (Series: 10)	$17.20 Special Order
