Whirlpool 3XARG479WP01 Parts List

Popular Searches: (Click to search)    16``  access  blade  cam  closer  door  drier  fan  grease  kit  paint  pressurized  silicone  spray  stud  touch  tube  upper  valve  white


Select a Diagram

01 - Cabinet

02 - Refrigerator Liner

03 - Freezer Liner

04 - Refrigerator Door

05 - Freezer Door

06 - Unit

07 - Airflow

08 - Control, Lit/optional

Select Diagram ... 01 - Cabinet 02 - Refrigerator Liner 03 - Freezer Liner 04 - Refrigerator Door 05 - Freezer Door 06 - Unit 07 - Airflow 08 - Control, Lit/optional

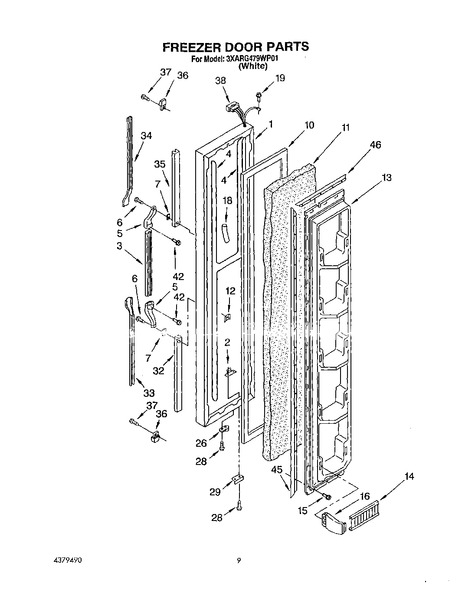

05 - Freezer Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	4362049	Freezer Door Panel (also Order Item 11)	Call for Availability
2	2196135	Tap, Plate	$13.00 Special Order
3	1124713	Handle, Center	Call for Availability
4	2165272	Heater, Door	$37.50 Special Order
5	1119359	End Cap (2)	$23.60 Special Order
6	WP488729	Screw   (Replaces: 489084)	$4.80  In-Stock Retail: $4.59
7	935075	Shim, End Cap (2)	Call for Availability
8	1119061	Trim, Door	Call for Availability
10	2188405A	Door Gasket, Magnetic	$218.00 Special Order
11	876029	Foam Insulation (required When Replacing Exterior Door Panel)	$226.70 Special Order
12	941242	Screw Anchor (2)	$4.40 Special Order
13	2196141	Panel, Interior Door	$161.80 Special Order
14	2157023	Trim, Door Shelf	Call for Availability
15	WP489069	Screw	$4.80  In-Stock Retail: $4.59
16	WP2196100	Trim, End Cap (Replaces: 1110719)	$4.80  In-Stock Retail: $4.59
18	2196117	Tube, Wiring	$4.40 Special Order
19	WP488234	Screw	$4.60 Special Order
26	4318165	Door Closer, Upper Cam (Replaces: 2155313)	$15.60  In-Stock Retail: $15.18
28	WP999367	Screw	$4.80 Special Order
29	2195950	Bracket, Door Stop   (Replaces: 2155332)	$4.40 Special Order
32	1119360	Retainer, Insert	Call for Availability
33	1119361	Insert, Handle	Call for Availability
34	1119367	Insert, Handle	Call for Availability
35	2194770	Retainer, Insert	$40.90 Special Order
36	2156220	End Cap (2)	$14.10 Special Order
37	489090	Screw	Call for Availability
38	2165271	Connector	$42.10 Special Order
42	4387279	Screw   (Replaces: 489022)	$34.50 Special Order
43	WP488234	Screw	$4.60 Special Order
45	1117766	Gasket Retainer, Side (2)	Call for Availability
46	1117767	Gasket Retainer, Top & Bottom	$29.40 Special Order
