Whirlpool GCGM2991TQ1 Parts List

Popular Searches: (Click to search)    assembly  belt  coil  door  drive  dryer  fuse  ignitor  kit  main  motor  pilot  position  repair  roller  split  support  switch  terminal  thermal


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - 3401771 Burner Assembly, Optional Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts 04 - 3401771 Burner Assembly, Optional Parts (not Included)

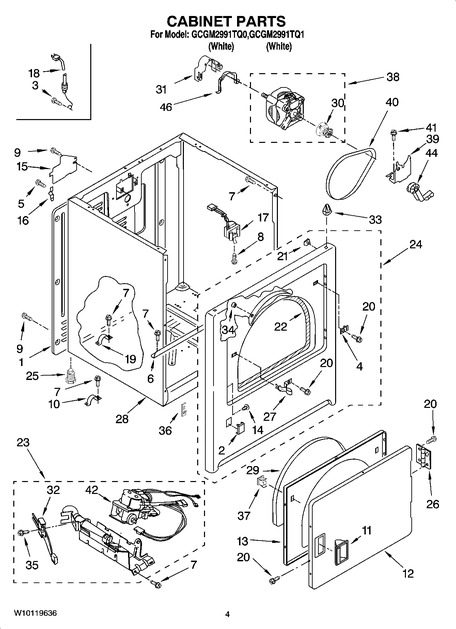

02 - Cabinet Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	280043	Panel, Rear	$202.90 Special Order
2	WP3394975	Plug, Front Panel (Replaces: 3394975)	Call for Availability
3	W10850756	Screw, Ground (10-32 X 5/8)	$4.80  In-Stock Retail: $4.59
4	WP3403630	Plug, Strike	$4.80 Special Order
5	WP388326	Screw, 8-18 X 1-1/4 (Replaces: 388326)	$4.80  In-Stock Retail: $4.59
6	8541400	Bracket, Cabinet	$63.20 Special Order
7	WP681414	Screw,10-16 X 1/2	$4.80 Special Order
8	WP3395530	Screw, 6-20 X 7/8	$4.80 Special Order
9	WP693995	Screw, Hex Head 8-18 X 3/8   (Replaces: 693995)	$4.80  In-Stock Retail: $4.59
10	341029	Clamp-elbow	$8.00 Special Order
11	WP3405184	Handle, Door (Replaces: 3405184)	$47.60  In-Stock Retail: $46.41
12	W10861227	Door, Front	$149.20 Special Order
13	WP3402341	Door, Rear	$114.40  In-Stock Retail: $111.56
14	WP3404413	Plug, Hinge Hole	$4.80 Special Order
15	W11736322	Cover, Block   (Replaces: 3396794 3396795)	$38.50 Special Order
16	WP8066217	Hinge, Top (2)	$4.80  In-Stock Retail: $4.59
17	WP3406107	Door Switch Assembly (Replaces: 3406107 3406109)	$21.20  In-Stock Retail: $21.19
18	W11628810	Cord, Power	$61.50 Special Order
19	341029	Clamp, Pipe (rear)	$8.00 Special Order
20	WP488627	Screw, 8-18 X 1/2 (Replaces: 342055)	$4.60  In-Stock Retail: $4.47
21	WP98234	Clip, Ground (2) (Replaces: 98234)	$7.00  In-Stock Retail: $6.82
22	W11035878	Seal & Bearing Assembly   (Replaces: 3406129)	$75.00  In-Stock Retail: $73.10
23	279536	Burner Assembly (60 Hz.) (refer To Pages 8 & 9 For Further Breakdown)	$256.80 Special Order
24	W10248059	Front Panel Assembly	$216.60 Special Order
25	49621	Foot, Plastic (Replaces: 3392100)	$4.40  In-Stock Retail: $4.20
	W10823505	Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810)	$11.50  In-Stock Retail: $11.18
26	WPW10362431	Hinge, Door	$4.80 Special Order
27	W11429589	Strike, Door   (Replaces: WP3403431 3403431)	$15.30  In-Stock Retail: $14.91
28	8533643	Cabinet (includes Illus. 6)	$264.70 Special Order
29	W10861521	Seal, Door   (Replaces: 3405246)	$70.80  In-Stock Retail: $69.06
30	WP8066184	Pulley, 60 Hz. (Replaces: 8066184)	$36.90  In-Stock Retail: $35.92
31	WP3404162	Clamp, Motor (Replaces: 3404162)	$4.80 Special Order
32	279311	Ignitor (Replaces: 686590)	$41.20  In-Stock Retail: $41.18
33	WP18776	Lock, Front Top (Replaces: 690363)	$7.10  In-Stock Retail: $6.84
34	279220	Clip, Felt Pad (2)	$11.60 Special Order
35	WPW10366705	Screw & Washer	$4.80 Special Order
36	W10854425	Clip, Front Panel (Replaces: 3394083)	$9.70  In-Stock Retail: $9.38
37	WP3389441	Catch, Door Assembly   (Replaces: 3389441)	$4.80  In-Stock Retail: $4.59
38	279827	Motor Assembly 60 Hz. (Replaces: 8066206)	$139.60  In-Stock Retail: $139.53
39	WP348780	Base, Motor	$73.90 Special Order
40	341241	Belt, Drive (Replaces: W10131364)	$15.00  In-Stock Retail: $14.95
41	3400500	Bolt, 5/16-18 X 3/4	$8.70 Special Order
42	279923	Valve, Gas (complete) 60 Hz.	$178.10  In-Stock Retail: $178.04
44	WP691366	Idler & Pulley Assembly (Replaces: 691366)	$15.80  In-Stock Retail: $15.73
46	WPW10121316	Clamp, Motor   (Replaces: W10121316)	$16.00 Special Order
