03 - Fountain   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	415013-35	Screw (Series: 12)	$8.20  In-Stock Retail: $7.99
	61004676	Housing, Fountain (alm) (Series: 12)	$61.10 Special Order
	61003307	Screw (Series: 12)	$4.40 Special Order
2	61003286	Tape (1ft.) (Series: 12)	$5.60 Special Order
3	61003300	Grommet, Water Tube (Series: 12)	$4.40 Special Order
4	61003304	Foil, Ftn. Back (Series: 12)	$4.50 Special Order
5	61003687	Heater, Fountain (Series: 12)	$33.10 Special Order
6	415013-35	Screw (Series: 12)	$8.20  In-Stock Retail: $7.99
	61004677	Chute, Ice (Series: 12)	$28.60 Special Order
7	12001992	Kit, Fountain Ice Door (230v) (Series: 12)	$107.80 Special Order
8	Y00000000	See Note (strike Not Available Must Order Ice Door Kit 12001992) (Series: 12)	Call for Availability
9	WP9705445	Pin, Roll (Series: 12) (Replaces: 61003303)	$4.80 Special Order
10	61004388	Spring, Ftn. Return (Series: 12)	$4.80  In-Stock Retail: $4.59
11	415041-35	Screw (Series: 12)	$4.40 Special Order
	WP61005520	Switch, Limit (Series: 12) (Replaces: 61003124)	Call for Availability
12	61004516	Board, Control (Series: 12)	$218.20 Special Order
13	WP488234	Screw (Series: 12)	$4.60 Special Order
	Y00000000	See Note (solenoid Not Available Must Order Ice Door Kit 12001992) (Series: 12)	Call for Availability
14	415013-35	Screw (Series: 12)	$8.20  In-Stock Retail: $7.99
	61004814	Bracket, Fountain (alm) (Series: 12)	Call for Availability
15	61001263	Clip, Receptacle (Series: 12)	$4.40 Special Order
	61001262	Adapter, Receptacle (Series: 12)	$7.60 Special Order
	12002156	Receptacle, Bulb (Series: 12)	$21.30 Special Order
16	61001236	Bulb, Light (Series: 12)	$10.30 Special Order

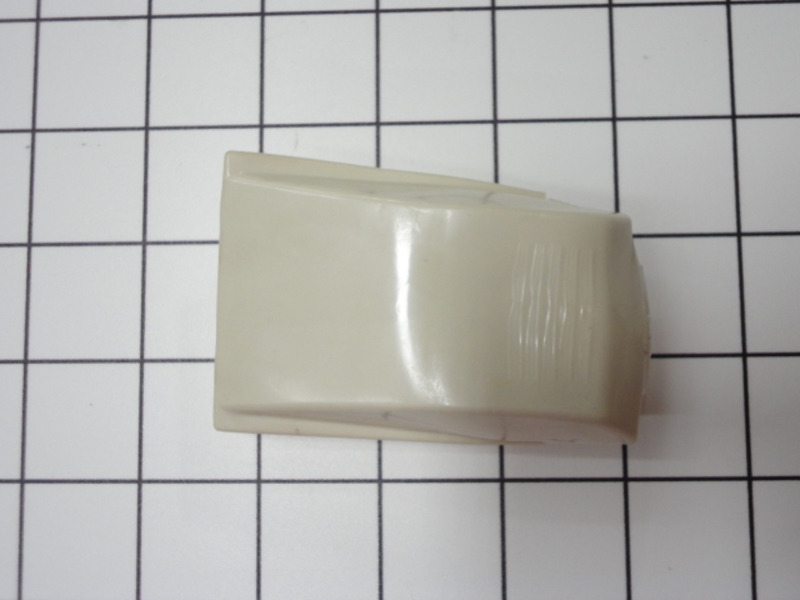

17	61003410	Pad, Actuator (alm) (Series: 12)	$7.90 Special Order
18	61003412	Grill (alm) (Series: 12)	$31.60 Special Order
19	WP61003689	Tank Assy., Water (Series: 12)	$135.90 Special Order
	WP67006908	Screw (Series: 12)	$4.80 Special Order
20	WP2300868	Union, Reducing (5/16``-5/16``) (Series: 12)	$18.70  In-Stock Retail: $18.17
21	WP61003339	Insulation (Series: 12)	$4.40 Special Order
22	61003340	Insulation (Series: 12)	$19.50 Special Order
23	61004724	Insulation, Ftn. (styrofoam) (Series: 12)	$41.30 Special Order
24	61003343	Insulation (Series: 12)	$4.40 Special Order
25	61003308	Insulation (Series: 12)	$21.30 Special Order
26	61003458	Wire Harness, Ftn. Switches (Series: 12)	$4.40 Special Order
	61004815	Wire Harness, Ftn. (Series: 12)	$15.30 Special Order
