08 - Dispenser Front Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
2	WP939101	Screw (4)	$4.80 Special Order
3	WP2305202	Bracket, Motor (Replaces: 2305202)	$61.20 Special Order
4	WP2305242	Connector, Door Bracket (Replaces: 2305242)	$62.20  In-Stock Retail: $56.71
5	WPW10184813	Motor, Ice Door (Replaces: 2305262)	$69.60 Special Order
6	WP2305258	Door, Ice (Replaces: 2305258)	$14.60 Special Order
7	WP2305204	Support, Ice Door (Replaces: 2305204)	$56.70 Special Order
8	WP4449745	Screw (2)	$4.80 Special Order
9	2305413AP	Grille, Slide (apollo Gray)	$53.50 Special Order
	2305413B	Grille, Slide (black)	$53.30 Special Order
	2305413W	Grille, Slide (white)	Call for Availability
10	2308165	Ferrite Bead	$20.10 Special Order
11	2305460NA	Separator Assembly (nickel Alloy)	$67.10 Special Order
	2305460B	Separator Assembly (black)	$54.40 Special Order
	2305460W	Separator Assembly (white)	$55.50 Special Order
12	WP2303843	Electronic Control (core)   (Replaces: 2303843)	$243.10  In-Stock Retail: $237.08
13	WP2305235	Spigot (Replaces: 2305235)	$94.40 Special Order
14	2305247CG	Pad, Ice & Water (for White Model)	$42.20 Special Order
	2305247MG	Pad, Ice & Water (for All Stainless Models)	$102.00 Special Order
	2305247GM	Pad, Ice & Water (for Black Model)	$102.10 Special Order
19	2305408W	Tray, Housing (white)	$28.90 Special Order
	2305408B	Tray, Housing (black)	$28.90 Special Order
	2305408US	Tray, Housing (nickel One)	$28.90 Special Order

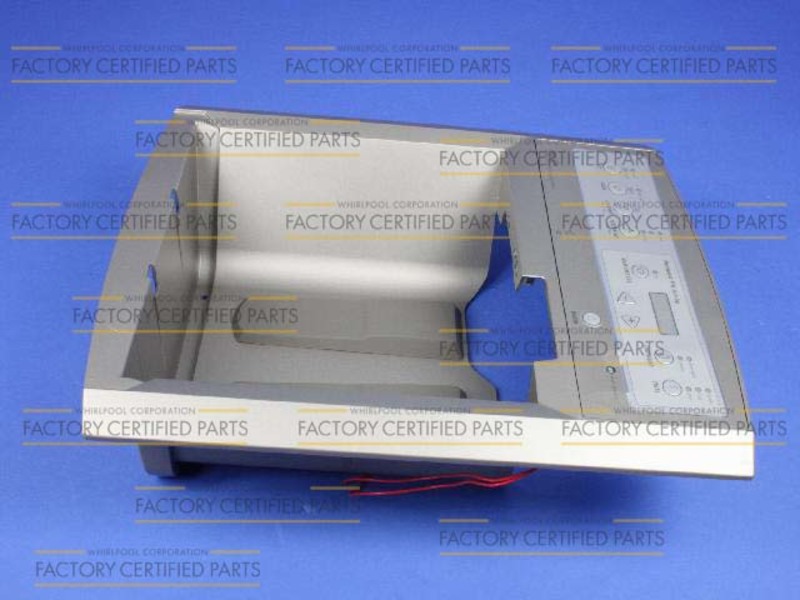

20	W10168543	Front Cover Assembly (includes Items 14, 15, 16, 17 & 18) (white)	$119.30 Special Order
	2317715B	Front Cover Assembly (includes Items 14, 15, 16, 17 & 18) (black)	$289.30 Special Order
	W10173643	Front Cover Assembly (includes Items 14, 15, 16, 17 & 18) (nickel One)	$289.30 Special Order
21	2187814	Wire Assembly, User Interface (includes 10)	$35.40 Special Order
22	2305447	Clip, Wiring	$8.20 Special Order
