Maytag GS22X8A (BOM: DR17A) Parts List

Popular Searches: (Click to search) defrost screw thermostat timer washer

Select a Diagram

01 - Freezer Compartment

02 - Freezer Door

03 - Fresh Food Compartment

04 - Fresh Food Door

05 - Optional Ice Maker Kit

06 - Shelves & Accessories

07 - Unit Compartment & System

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	72341-100-AM	Panel, Frz. Door (alm)	Call for Availability
2	12000043	Kit, Handle Assy (almond)	$101.70 Special Order
3	69590-1	End Cap, Handle	Call for Availability
4	69586-1	Trim, Handle	Call for Availability
5	69586-2	Trim, Handle	Call for Availability
6	61005388	Screw	$8.20 Special Order
	69246-1	Liner, Frz. Door	Call for Availability

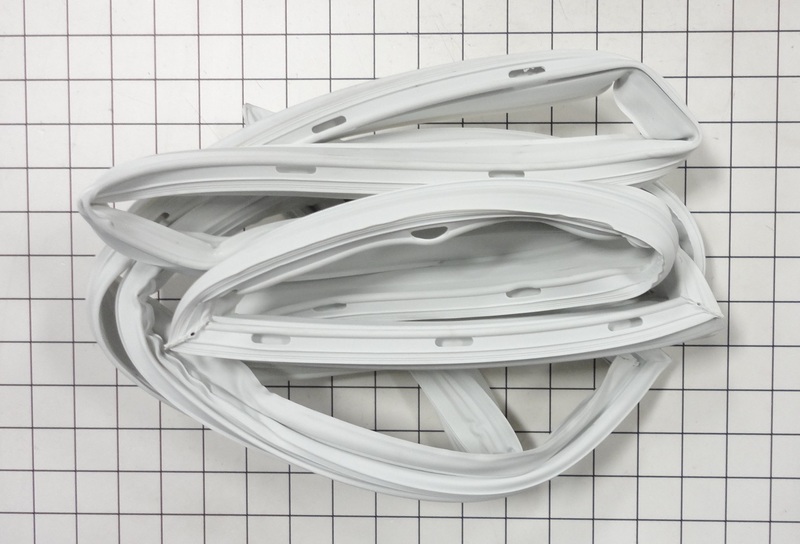

7	70024-1	Gasket	Call for Availability
8	WP61003045	Trim, Door Shelf	$81.60 Special Order
9	WP65245-1	Retainer, Shelf Trim	$6.40 Special Order
10		Hinge, Upper	Call for Availability
	WP3-24838-048	Screw	$4.80 Special Order
11	65003-3	Cover, Upper Hinge (alm)	Call for Availability
12	WP52185-1	Washer	$6.80 In-Stock Retail: $6.55
13	67874-1	Tapping Plate, Lower Hinge	$4.40 Special Order
	65275-59	Screw	$4.40 Special Order
14	65031-1	Shim, Upper Hinge	$12.70 Special Order
15	68975-2	Hinge, Lower	$8.00 Special Order
	65275-46	Screw, Lower Hinge	$4.40 Special Order
16	69845-1	Pin, Lower Hinge	$32.70 Special Order
17	67483-3	Washer, Lower Hinge (Replaces: 67483-2)	$31.50 Special Order
18	69031-4	Shim	$4.40 Special Order
19	495034-900	Plug Button, Door	Call for Availability
	61001609	Cover, Lower Hinge (blk)	$30.20 Special Order
	69258-1	Closer, Door	Call for Availability
