Maytag GRI2001WW (BOM: P1168201W W) Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    120v  40w  btm  bulb  clip  control  damper  defrost  evap  fan  heater  hinge  kit  motor  screw  shim  speed  temp


Select a Diagram

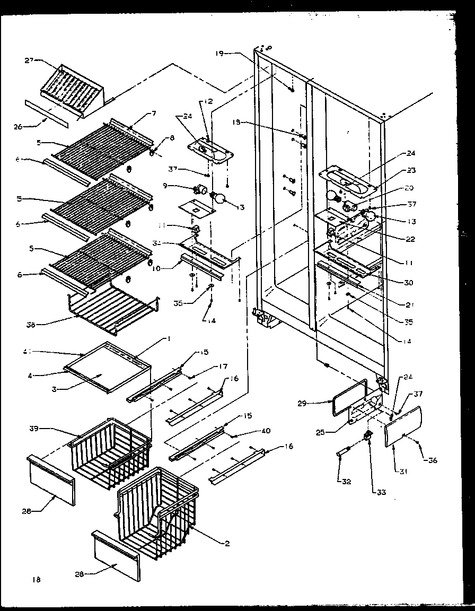

07 - Fz Shelving And Ref Light   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 C8913609 Trim $10.30
Special Order
2 D7820802 Basket, Frz Call for Availability
3 10370053 Glass, Shelf Call for Availability
4 10049954 Trim, Shelf Front Call for Availability
5 D7788309 Shelf, Frz Call for Availability
6 10049955 Trim, Shelf Front Call for Availability
7 C8913609 Trim $10.30
Special Order
8 WPC8973801 Support, Frz Shelf $6.60
 In-Stock
Retail: $6.40
9 12679501 Socket-light $32.70
Special Order
10 10014707 Shield, Light Call for Availability
11 W11384469 W11384469 Switch $22.90
 In-Stock
Retail: $22.28
12 D7760102 Housing Frz Light Call for Availability
13 8009 8009 Bulb, Light (40 Watt)
(Replaces: A0282803) 		$20.00
 In-Stock
Retail: $19.99
14 M0219546 Screw Call for Availability
15 10282303 Glide, Frz L.h. Call for Availability
16 10282304 Glide, Frz. L.h. Call for Availability
17 M0213529 Screw Call for Availability
18 C8973701 Plug, Frz Shelf Support $4.40
Special Order
19 M0580007 Grommet, Screw $4.40
Special Order
20 Socket, Dual Lamp Call for Availability
21 10014716 Shield, Light $4.40
Special Order
22 D7297604 Cover, Light Sw   (Replaces: D7297603) Call for Availability
23 D7716404 Housing-ref Light Call for Availability
24 B5733302 Clip, Ground $4.40
Special Order
25 10270201 Housing, Light Call for Availability
26 C8986109 Insert, Juice Rack Call for Availability
27 D7839703 Rack, Juice V   (Replaces: D7839701) Call for Availability
28 D7820719 Front,basket Call for Availability
29 A3189337 Gasket $4.40
Special Order
30 10493201 Cover, Ref. Light $6.20
Special Order
31 Y10270101 Y10270101 Cover-light $28.60
Special Order
32 WPA3073101 WPA3073101 Bulb 120v. 40w.
(Replaces: A3079007 WP61003236 WP2326255 A3079001) 		$8.00
 In-Stock
Retail: $7.73
33 10281601 Socket-light Call for Availability
34 10493301 Cover, Frz Light $5.10
Special Order
35 M0270519 M0270519 Washer $4.40
Special Order
36 WP12990527 WP12990527 Screw $4.80
 In-Stock
Retail: $4.59
37 67006425 67006425 Screw-sm No.8-1/2lg $4.80
 In-Stock
Retail: $4.59
38 10729201 Rack, Freezer Call for Availability
39 10606301 Basket, Freezer Call for Availability
40 WP98165 Screw, Sm $4.80
Special Order
41 10606401 Frame, Frz Shelf Call for Availability
NI 10607101 Ass`y, Glass Shelf Call for Availability
