Whirlpool GB9SHDXPQ02 Parts List

Popular Searches: (Click to search)    access  board  control  damper  drawer  evaporator  fan  gear  grease  includes  motor  paint  pressurized  silicone  slide  spray  thermistor  touch  valve  white


Select a Diagram

01 - Cabinet Parts

02 - Refrigerator Liner Parts

03 - Freezer Liner Parts

04 - Refrigerator Door Parts

05 - Freezer Door Parts

06 - Shelf Parts

07 - Unit Parts

08 - Icemaker Parts, Optional Parts (not Included)

Select Diagram ... 01 - Cabinet Parts 02 - Refrigerator Liner Parts 03 - Freezer Liner Parts 04 - Refrigerator Door Parts 05 - Freezer Door Parts 06 - Shelf Parts 07 - Unit Parts 08 - Icemaker Parts, Optional Parts (not Included)

04 - Refrigerator Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	67001138	Refrigerator Door (w/ Insulation) (white)	$435.70 Special Order
	12658501BQ	Refrigerator Door (w/ Insulation) (black)   (Replaces: 67001136)	$358.80 Special Order
	13023852SQ	Refrigerator Door (w/ Insulation) (stainless Steel)	$297.00 Special Order
2	67004838	Plug, Vent (black)	$6.60 Special Order
	10712401	Plug, Vent (white)	$6.60 Special Order
3	WP12744905	Door, Compartment	$60.10 Special Order
4	WP67001279	Tray, Dairy	$46.30 Special Order
5	WPW10371194	Bucket (2) (medium)   (Replaces: 67003777)	$40.60  In-Stock Retail: $39.57
6	WP2220214	Nameplate	$41.40 Special Order
7	WP12246608	Plug, Button (2) (black)	$4.50  In-Stock Retail: $4.33
	WP67001130	Plug, Button (2) (white) (Replaces: 67001130)	$4.50 Special Order
8	WPW10443309	Gasket, Door Magnetic (white)	$199.20 Special Order
	WPW10436245	Gasket, Door Magnetic (black)	$195.60 Special Order
9	WP2217185B	Handle, Door (black)	$101.40 Special Order
	67002677	Handle, Door (white)	$24.80 Special Order
10	W10709784	Screw	$10.50 Special Order
11	WP67003639	Closure, Door (black) (Replaces: 67003639)	$48.90  In-Stock Retail: $47.70
	WP67003638	Closure, Door (white)   (Replaces: 67003638)	$4.50  In-Stock Retail: $4.33
12	67004124	Bucket (1) (short)	$15.40 Special Order
13	WP67004977	Bushing (white) (Replaces: 67004977)	$4.50 Special Order
	67004978	Bushing (black)	$13.00 Special Order
14	67002505	Retainer, Door	$14.20 Special Order
15	WP98165	Screw   (Replaces: 67006287)	$4.50 Special Order
16	W10136387A	Bin, Egg	$10.70  In-Stock Retail: $10.39
17	12968202W	Stop, Door (white)	$37.50 Special Order
	WP67003780	Stop, Door (black)	$4.50 Special Order
18	67002680	Trim, Handle (black)	Call for Availability

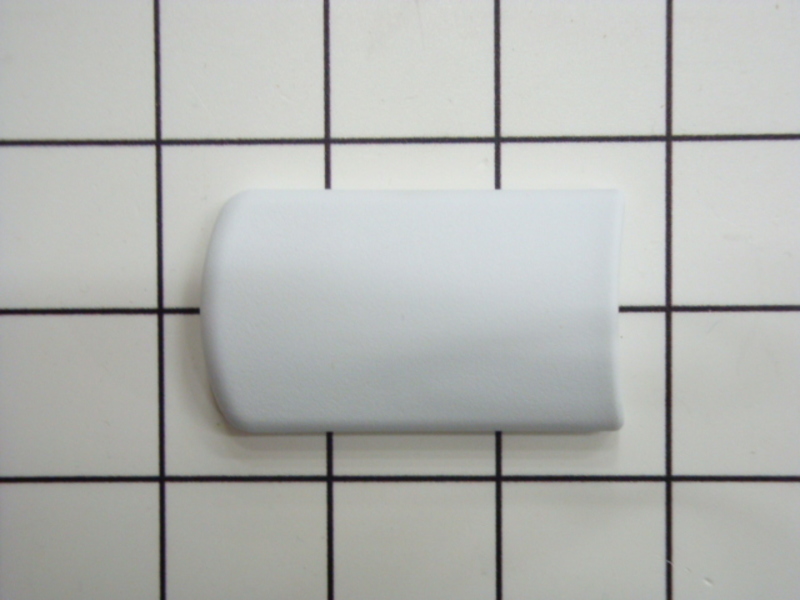

	67002682	Trim, Handle (white)	$8.30  In-Stock Retail: $8.06
19	WP67005626	Caddy, Can	$43.00 Special Order
20	WPW10351081	Bucket (2) (small)	$43.40  In-Stock Retail: $42.25
