Whirlpool EV250NXMQ01 Parts List

Popular Searches: (Click to search)    108``  defrost  feet  gum  metal  paint  pressurized  sealer  spray  tape  timer  touch  vinyl  white


Select a Diagram

01 - Cabinet Parts

02 - Liner Parts

03 - Unit Parts

04 - Door Parts, Optional Parts (not Included)

Select Diagram ... 01 - Cabinet Parts 02 - Liner Parts 03 - Unit Parts 04 - Door Parts, Optional Parts (not Included)

03 - Unit Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	4390662	Cover, Evaporator	$115.10 Special Order
2	WP4390862	Evaporator	$214.10 Special Order
3	WP3-80411-103	Fan Motor   (Replaces: 3-80411-103 4357004)	$113.10 Special Order
4	W11100462	Fan Blade	$63.40 Special Order
5	WP3-82089-001	Heater, Defrost	$97.30 Special Order
6	4390860	Shield Heater	$58.80 Special Order
7	W10862416	Drain Pan (Replaces: 4390871)	$27.90 Special Order
8	4390663	Gasket, Evaporator Cover (right)	$155.80 Special Order
	4390664	Gasket, Evaporator Cover (left)	$58.10 Special Order
9	4390863	Bi-metal Defrost	$41.10 Special Order

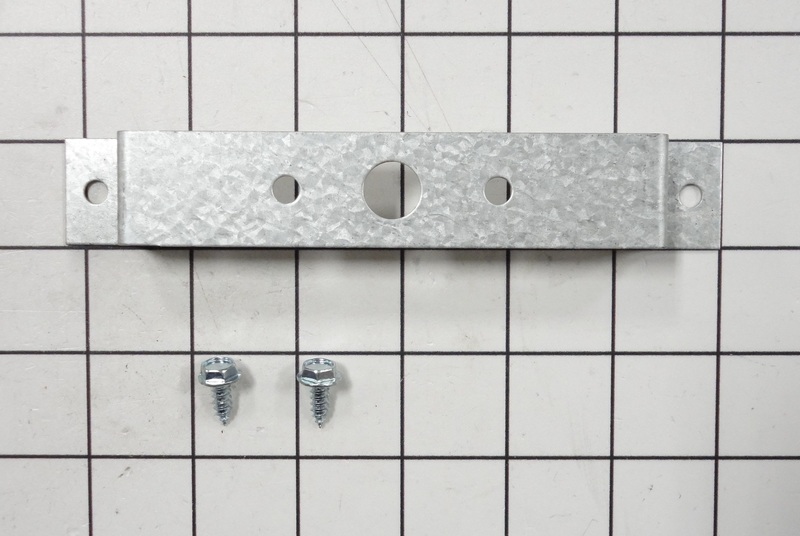

11	2-80028-101	Bracket, Motor	$54.00 Special Order
12	60001022	Screw, Motor	$36.30 Special Order
13	WP3-24004-109	Screw (4)	$4.80 Special Order
14	W10309995	Compressor (includes Items 15, 16, 17, 18 & 19)	$395.10  In-Stock Retail: $385.43

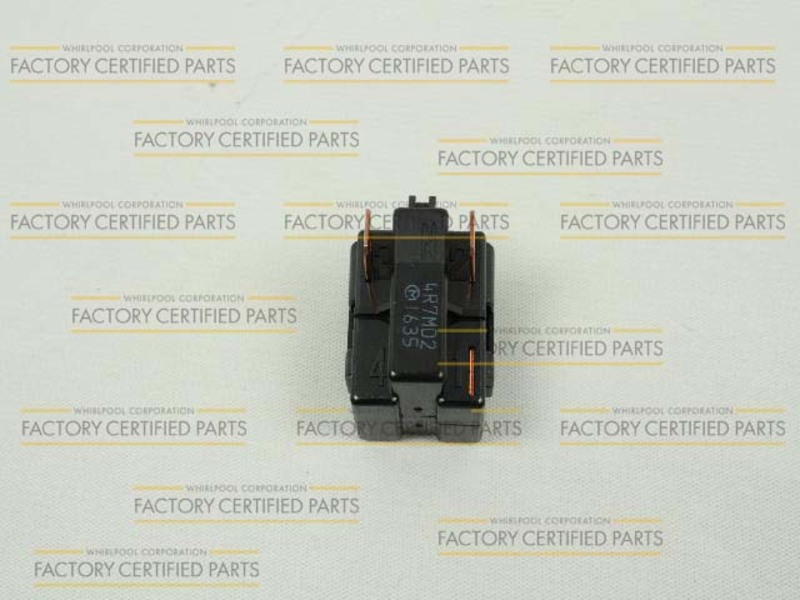

15	WP4356738	Relay (Replaces: 4356738)	$50.60 Special Order
16	W10843121	Drier	$31.80  In-Stock Retail: $30.99
17	4356777	Cover	$85.10 Special Order

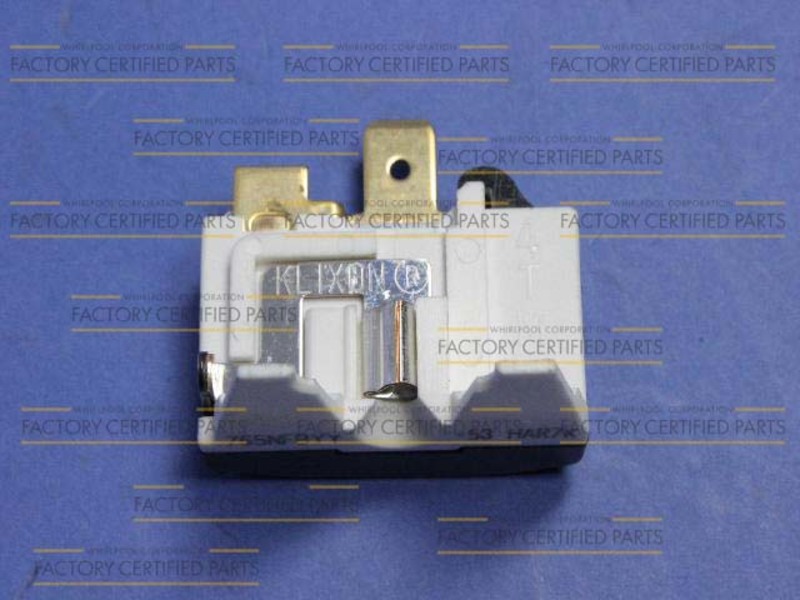

19	4390808	Overload	$41.00 Special Order
20	4356846	Sleeve	$9.20 Special Order
21	4356335	Compressor Grommet	$4.40 Special Order
22	4356847	Washer	$4.40 Special Order
23	4356852	Screw, Compressor	$4.80 Special Order
25	2-82072-002	Heat, Exchanger	$101.10 Special Order
26	4390807	Compressor Pan	$80.90 Special Order
27	4356952	Thermostat, Clip	$4.40 Special Order
28	4390859	Condenser	$98.40 Special Order
29	WP3400094	Screw	$4.80 Special Order
30	WP3-24838-048	Screw	$4.80 Special Order
31	3-35956-013	Capacitor	$71.30 Special Order
32	4357020	Grommet	$4.40 Special Order
33	4-82041-001	Plate, Evaporator Mount	$64.90 Special Order
36	WP489478	Screw	$4.80  In-Stock Retail: $4.59
37	4357128	Shield, Motor	$70.90 Special Order
