Maytag 31315VBM Parts List

Popular Searches: (Click to search)    4+0  assy  baffle  bulb  burner  door  igniter  module  oven  probe  seal  sealed  sensor  short  spark  switch  taupe


Select a Diagram

01 - Body

02 - Control Panel

03 - Door/drawer

04 - Gas Controls

05 - Oven/base

06 - Top Assembly

07 - Wiring Information

Select Diagram ... 01 - Body 02 - Control Panel 03 - Door/drawer 04 - Gas Controls 05 - Oven/base 06 - Top Assembly 07 - Wiring Information

04 - Gas Controls   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.70  In-Stock Retail: $8.47
	74002531	Pipe, Manifold (Series: 10)	$30.70 Special Order
2	74003925	Valve, Burner (Series: 10)   (Replaces: 7502P252-60)	Call for Availability
	WP8273096	Screw, Valve (Series: 10)	$4.80  In-Stock Retail: $4.59

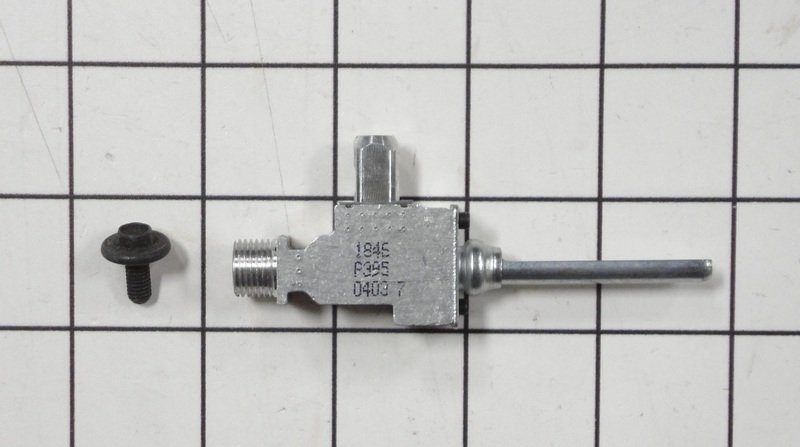

	12002283	Valve, Burner (Series: 10) (Replaces: 74002532)	$4.10 Special Order
3	5787M002-60	Fitting, Orifice (lt) (Series: 10) (Replaces: 74002534)	Call for Availability
	74002535	Fitting, Orifice (rt) (Series: 10)	Call for Availability
4	WP3412D025-09	Sealed Burner Assy. (taupe) (Series: 13) (Replaces: 12001496 3412D024-28 74003521)	$105.90 Special Order
	3412D024-28	Burner, Sealed (taupe) (Series: 14)	$92.90 Special Order
	WP3412D025-09	Sealed Burner Assy. (brn) (Series: 10)	$105.90 Special Order
5	7510P083-60	Regulator, Pressure (Series: 10) (Replaces: 7510P004-60 74006282 7510P049-60)	Call for Availability
6	3801F586-51	Bracket, Oven Valve (Series: 10)	$4.40 Special Order
	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.70  In-Stock Retail: $8.47
7	3601F255-45	Baffle, Oven Burner (Series: 10)	$16.80 Special Order
8	WP59002061	Screw (Series: 10)	$4.80 Special Order
9	7201P050-60	Gasket, Burner (Series: 10)	$0.90 Special Order
10	74002434	Burner, Oven (Series: 10)	Call for Availability
	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.70  In-Stock Retail: $8.47
11	7103P130-60	Nut, Loxit (3/8``) (Series: 10)	$5.70 Special Order
	74002456	Tubing, Valve (3/8``) (Series: 10)	$6.20 Special Order
12	8215557	Module, Spark (4+0) (Series: 17) (Replaces: 74004283)	$122.40  In-Stock Retail: $119.35
	12001596	Module, Spark (Series: 10) (Replaces: 74003288)	$61.10  In-Stock Retail: $59.55
13	W10124350	Not Required Part Or See Note Igniter Not Sold Separately (must Order Sealed Burner- Item No.4) (Series: 10)	Call for Availability
14	WP3351614	Screw (Series: 10)	$4.80 Special Order
	12400035	Igniter, Oven (Series: 10)	$59.95  In-Stock Retail: $53.51
15	W10491986	Screw, Valve (Series: 10)	$4.50 Special Order

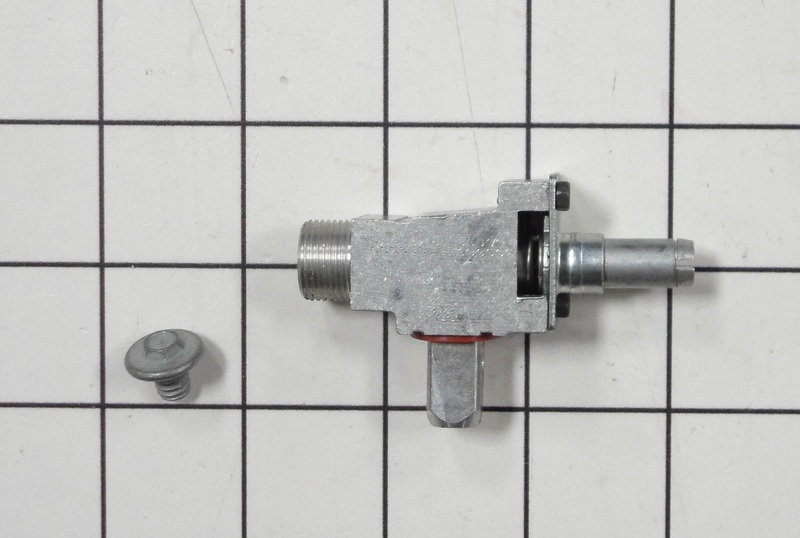

	12002280	Valve, Shut Off (Series: 10)	$175.00  In-Stock Retail: $170.65
16	WP74007095	Switch, Igniter (Series: 10) (Replaces: 74002533)	$58.90  In-Stock Retail: $57.41
	WP7403P287-60	Switch, Igniter (Series: 10) (Replaces: 7403P287-60)	$83.10  In-Stock Retail: $81.03
17	7103P030-60	Nut, Wing (Series: 10)	$4.60 Special Order
18	WP74002387	Valve, Oven (Series: 10)   (Replaces: 74002387)	$173.00 Special Order
19	12001730	Wires, Igniter (4-or) (Series: 10)   (Replaces: 74002457)	$16.10 Special Order
	12001323	Wires, Switch (blk/tn) (Series: 10)	$105.80 Special Order
	5195M153-60	Wires, Module/switches (Series: 10)	$9.60 Special Order
20	W10124350	Not Required Part Or See Note Lp Conversion Kit - N/a (converted On The Unit) (Series: 10)	Call for Availability
