05 - Outer Tub   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	25001030	Tub Cover As Pack (Series: 10)	$102.00 Special Order
	25001224	Tub Cover As Pack (Series: 17)	$98.30 Special Order
2	25001199	Outer Tub Assy (as Pk) (Series: 10) (Replaces: 25001081)	$591.30  In-Stock Retail: $576.80
	25001199	Outer Tub Assembly As Pack (Series: 12)	$591.30  In-Stock Retail: $576.80

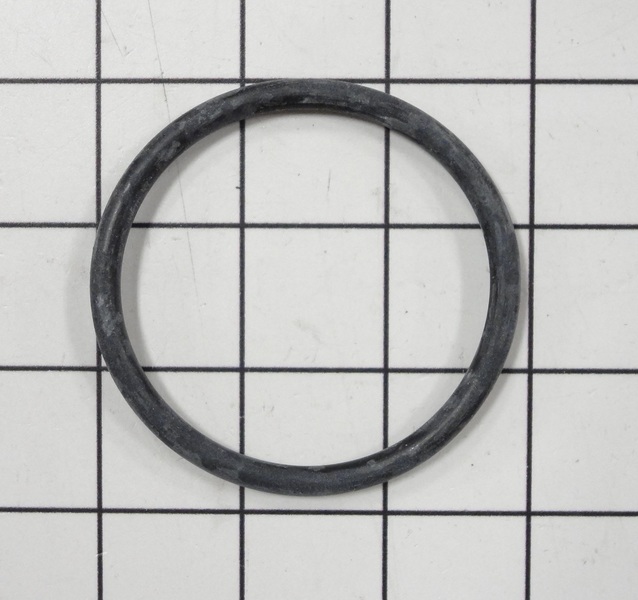

3	WP25001096	O-ring, Tub Outlet (Series: 10) (Replaces: 25001096)	$0.70  In-Stock Retail: $0.60
4	25001139	Base Strut Assy (Series: 10)	$106.80 Special Order
5	25001044	Screw, 1/4 - 20 Shoulder Bolt (Series: 10)	$11.50 Special Order
	12002211	Pulley & Clutch Assy - As Pk (Series: 10)	$213.40  In-Stock Retail: $208.18
	WP25001169	Assembly; Clutch (Series: 12)	$132.80  In-Stock Retail: $208.95
6	WP25001090	Tub Seal (Series: 10) (Replaces: 25001090)	Call for Availability
7	WP25001096	O-ring, Tub Outlet (Series: 10) (Replaces: 25001096)	$0.70  In-Stock Retail: $0.60
8	WP3934714	Bolt, Sems 1/4 X.5 (Series: 10)	Call for Availability
9	25001029	Sump Cap (led) (Series: 10)	$32.30 Special Order
10	22004306	Washer, Hardened (Series: 10)	Call for Availability
11	22003686	Bolt, Motor (Series: 10)	$4.30 Special Order
12	WP25001034	Motor, Variable Speed (Series: 10) (Replaces: 25001034)	$239.90 Special Order
	WP25001034	Motor (Series: 17)	$239.90 Special Order
13	22003329	Isolator, Motor (Series: 10)	$1.30 Special Order

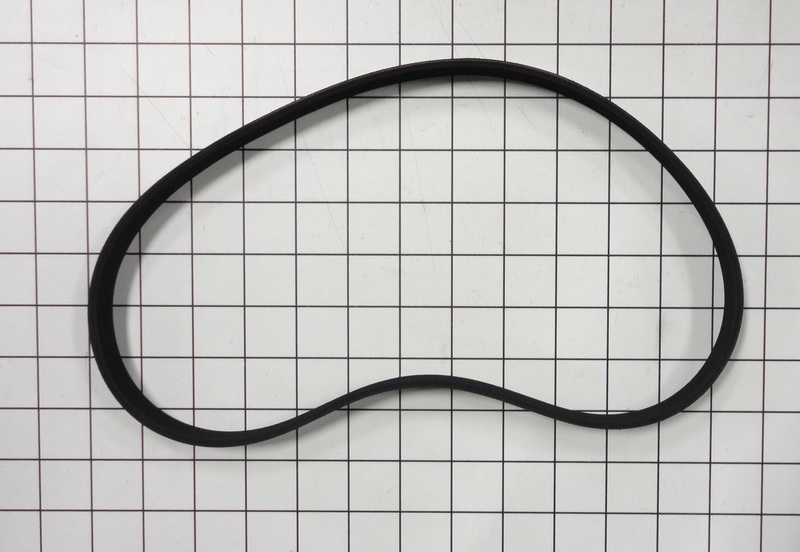

14	WP25001054	Belt, Stretch (Series: 10) (Replaces: 25001054)	Call for Availability
15	25001021	Screw, No.8-16 Truss Hd (Series: 10)	$4.40 Special Order
16	25001017	``p`` Clip (Series: 10)	$4.40 Special Order

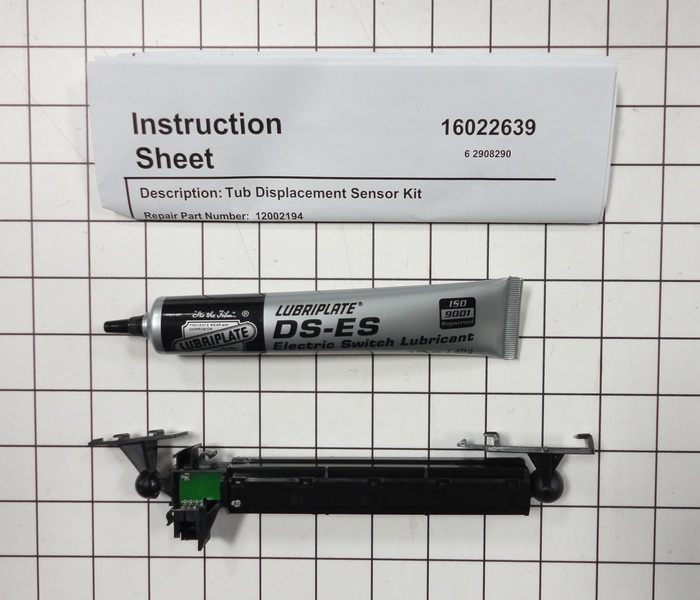

17	12002194	Tub Displacement Sensor Kit (Series: 10)	Call for Availability
18	25001181	Outer Tub Sensor Clip (Series: 10)	$21.50 Special Order

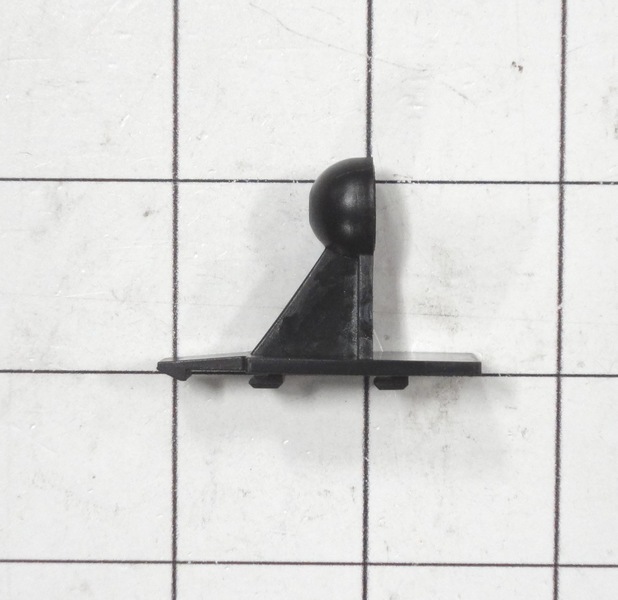

19	25001182	Cabinet Sensor Clip (Series: 10)	$27.50 Special Order

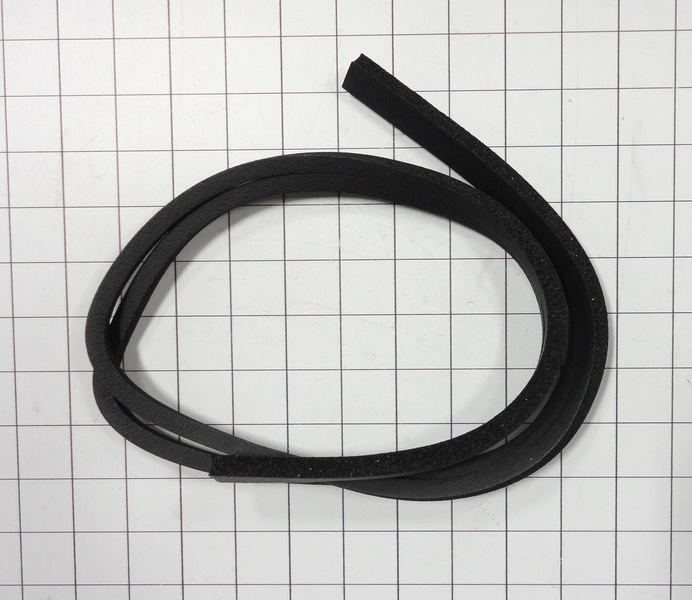

20	25001180	Tub Cover Seal (Series: 10)	$4.80  In-Stock Retail: $4.68
21	25001036	Jam Nut (Series: 10)	$32.90 Special Order
22	WP285655	Clamp, Drain Hose (Series: 10)	$4.80  In-Stock Retail: $4.59
