Frigidaire FRS23KF7AB6 Parts List

Popular Searches: (Click to search)    adaptive  assy  cassette  control  defrost  door  evap  fan  filter  front  ice  kit  maker  motor  screw  solenoid  thermostat  triple  valve  water


Select a Diagram

03 - Freezer Door

05 - Refrigerator Door

07 - Cabinet

09 - Shelves

11 - Controls

13 - System

15 - Dispenser

17 - Ice Container

19 - Ice Maker

01 - Cover

Select Diagram ... 03 - Freezer Door 05 - Refrigerator Door 07 - Cabinet 09 - Shelves 11 - Controls 13 - System 15 - Dispenser 17 - Ice Container 19 - Ice Maker 01 - Cover

15 - Dispenser   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	218976409	Tube-water	$43.60  In-Stock Retail: $42.49
4	241678703	Cover-module,black   (Replaces: 5304422012)	$74.90  In-Stock Retail: $72.99
8	241680507	Module-dispenser (Replaces: 5304422013)	$62.60 Special Order
10	5304426649	Spring-torsion   (Replaces: 5304421626)	$15.40 Special Order
14	240323924	Label-module Cover,black	$2.60 Special Order
15	5304506475	Light Bulb/lamp (Replaces: 5304421616)	$25.40 Special Order
16	215284900	Socket-light/lamp	$43.10 Special Order
17	5304421619	Screw	Call for Availability
23	241649003	Drip Tray,black (Replaces: 240323603)	$44.60 Special Order
24	241682003	Actuator-water,black (Replaces: 5304422026)	$40.00  In-Stock Retail: $38.99
24A	241681903	Actuator-ice,black (Replaces: 5304422025)	$60.50  In-Stock Retail: $58.99
30	241688401	Door Assy-ice Chute (Replaces: 5304421628)	$35.90  In-Stock Retail: $34.99
30A	241688501	Door Center (Replaces: 5304421624)	$36.40 Special Order
30B	241688601	Insulation-door (Replaces: 5304421625)	$45.10 Special Order
30C	241688701	Door Seal (Replaces: 5304421629)	$27.70 Special Order
35	241689301	Damper-rotary   (Replaces: 5304421620)	$47.70 Special Order
36	241680301	Carrier (Replaces: 5304421824)	$28.20  In-Stock Retail: $27.49
38	5304421827	Power Board	Call for Availability
38A	241689106	Switch-micro,single Pole ,double Throw (Replaces: 5304421617)	$5.70  In-Stock Retail: $5.49

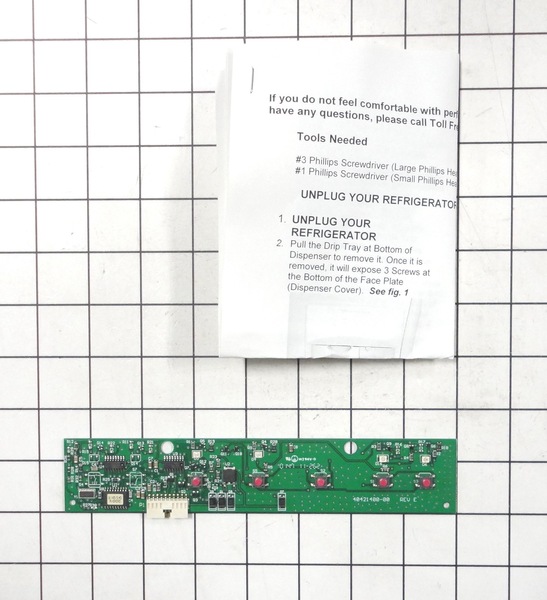

38C	241700104	Board-control (Replaces: 5304426005)	$418.10 Special Order
39	241688801	Pin-hinge   (Replaces: 5304421627)	$31.30 Special Order
41	241689001	Spring-actuator   (Replaces: 5304421829)	$15.90 Special Order
43	5304455699	Screw,plask H/l ,no.6 X 3/8   (Replaces: 215296300)	$10.30 Special Order
56	5304421830	Screw-micro Switch,pan Head	$9.80 Special Order
87	5304421622	Bearing Plate	$14.40 Special Order
87A	5304421621	Bearing Plate	Call for Availability
88	5304421615	Shield-light	$26.20 Special Order
90	5304421831	Light Pipe,reflector	$66.40 Special Order
91	5304421850	Light Pipe,reflector ,short	$42.20 Special Order
NI	5303918256	Dispenser Heater Kit	$342.90 Special Order
	218976903	Tube-water Inlet,inlet Valve ,to Filter	$50.80 Special Order
	218976907	Tube-water Inlet,valve To Door	$49.20 Special Order
	218976901	Tube-water Inlet,inlet Valve ,to Ice Maker	$59.00  In-Stock Retail: $57.49
