04 - Door Parts, Optional Parts (not Included)   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP8563855	Plug, Strip	Call for Availability
2	280201	Door Hinge Assembly	$68.60 Special Order
3	3980214	Cover, Door Hinge	$26.40 Special Order
4	W10080840	Screw, 8-18 X 5/8	$4.40 Special Order
5	486146	Screw, 10-32 X 3/8	$8.70 Special Order
7	8559752	Handle, Door	$31.50 Special Order
8	W10080770	Screw, 1/4-20 X 1/2	Call for Availability

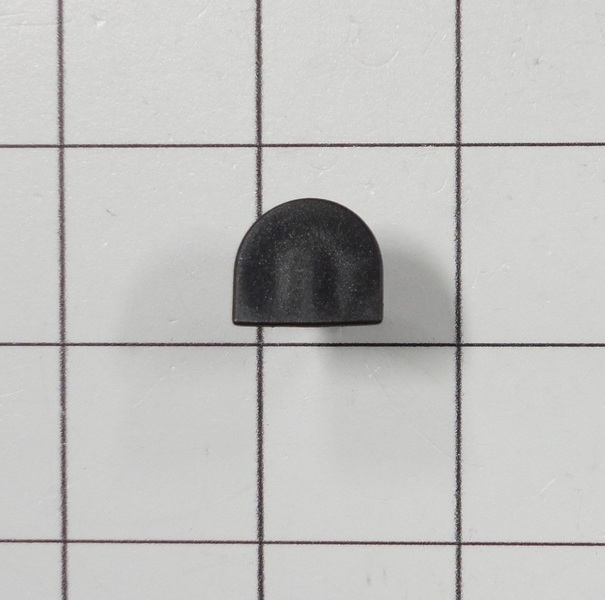

9	8519374	Plug, Door Handle (2)	$35.90 Special Order
10	W10118207	Door Assembly (inner) (includes Illus. 14 & 15)	$94.70 Special Order
11	WP355515	Screw, 8-18 X 11/16	$4.80 Special Order
12	3980213	Door, Outer	$100.10 Special Order
13	WP8545878	Window	$91.10 Special Order
14	WP3389441	Door Catch Assembly (top)   (Replaces: 3389441)	$4.80  In-Stock Retail: $4.59
15	279570	Door Catch Assembly (bottom) (Replaces: 690081)	$13.50  In-Stock Retail: $13.45
	72017	Paint, Touch-up 1/2 Oz. (white)	$8.60  In-Stock Retail: $8.19
	350930	Paint, Pressurized Spray (12 Oz.) White	$12.60  In-Stock Retail: $11.98
	350938	Paint, Pressurized Spray (12 Oz.) (primer,grey)	$27.40  In-Stock Retail: $26.69
	799344	Paint, Bulk (1 Qt.) (white) (uncut)	$128.20 Special Order
	8529894	Kit, Hold Down	$89.70 Special Order
