Whirlpool 3RAWZ480ESQ0 Parts List

Popular Searches: (Click to search)    assembly  belt  blower  bottom  bracket  catch  door  drive  drum  idler  paint  pressurized  pulley  roller  seal  spray  support  touch  wheel  white


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - Door Parts, Optional Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts 04 - Door Parts, Optional Parts (not Included)

01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8315975	Installation & User Guide	Call for Availability
	8545902	Label, Wiring Diagram	Call for Availability
	8577079	Use & Care Guide	Call for Availability
	8563878	Installation Instructions	Call for Availability
2	8519251	Top	$27.80 Special Order
3	W10110980	Harness, Main	$119.10 Special Order
4	W10118062	Panel, Console (includes Illus. 13, 14, 15, 17, 18 & 19)	$197.50 Special Order
5	WP3394427	Clip, Harness	$4.80  In-Stock Retail: $4.59
6	W10118067	Bracket, Console	$27.90 Special Order
7	353424	Connector, Sensor	$13.70 Special Order
8	WP94614	Terminal (female)	$4.80 Special Order
9	3936144	Plug, Terminal	$13.70 Special Order
10	WP596797	Terminal	$4.80 Special Order
11	WP489464	Screw, 8-18 X 1/2	$4.80 Special Order
12	W10080370	Screw, 8-18 X 1/2	Call for Availability
13	3980121	Button, Push-to-start	$26.50 Special Order
14	W10118063	Bracket, Timer	$30.80 Special Order
15	W10118064	Bracket, Switch Mounting	$30.80 Special Order
16	W10080930	Screw, 8-18 X 1/2	$4.30 Special Order
17	8183253	Medallion	$26.00 Special Order
18	3956540	Console, Center	$199.90 Special Order
19	3400238	Screw, 2-28 X 1/2	$8.20 Special Order
20	W10116280	Timer	$151.90 Special Order
21	WPW10111181	Fuse	$19.20 Special Order
22	W10080820	Screw, 8-18 X 5/16	$4.40 Special Order
23	3980421	Spacer Plate (timer)	$31.30 Special Order
24	W10168170	Switch, Wrinkle Guard	$129.90 Special Order
25	8522378	Buzzer, Mini	$68.40 Special Order
26	WPW10112668	Switch, Push-to-start	$75.50 Special Order

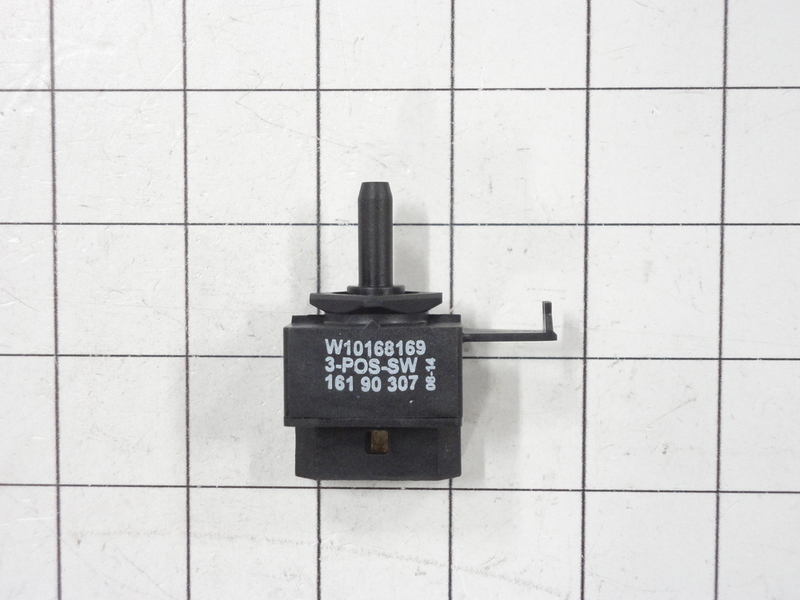

27	W10168169	Switch, Temperature	$57.70 Special Order
28	W10110978	Harness, Console	$55.30 Special Order
29	3347243	Connector 6-circuit	$35.50 Special Order
30	3397269	Connector, Timer	$17.90 Special Order
31	3401144	Connector, (pts Relay)	$8.30 Special Order
32	692997	Connector	$4.40 Special Order
33	3957756	Knob, Timer Assembly	$56.90 Special Order
34	3957803	Knob, Control (2)	$31.20 Special Order
35	3980339	Shield, Drip	$19.90 Special Order
36	WP688805	Spring Clip   (Replaces: 688805)	$4.80  In-Stock Retail: $4.59
