Whirlpool 3RAWZ480EMQ0 Parts List

Popular Searches: (Click to search)    assembly  belt  blower  bracket  door  drive  drum  fuse  idler  paint  pressurized  pulley  roller  seal  spray  strike  support  thermal  wheel  white


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts Optional Parts (not Included)

04 - Door Parts

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts Optional Parts (not Included) 04 - Door Parts

04 - Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart

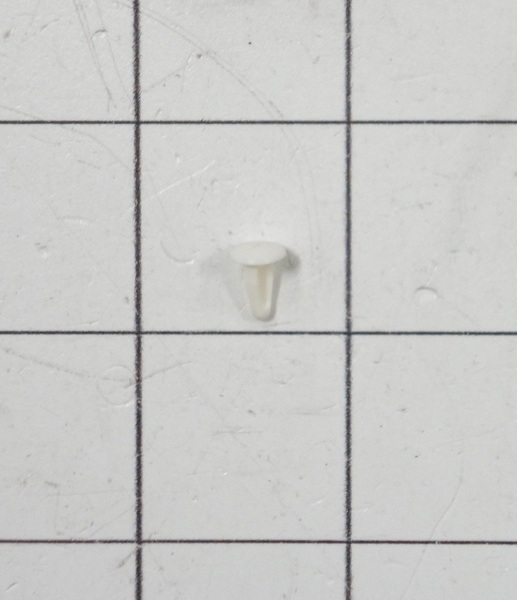

1	WP3404413	Plug, Hole (5)	$4.80 Special Order
2	8519361	Door Hinge Assembly	$98.60 Special Order
3	3980214	Cover, Door Hinge	$26.40 Special Order
4	W10850046	Screw, 8-18 X 5/8 (Replaces: 9742177)	$4.80  In-Stock Retail: $4.59
5	486146	Screw, 10-32 X 3/8	$8.70 Special Order

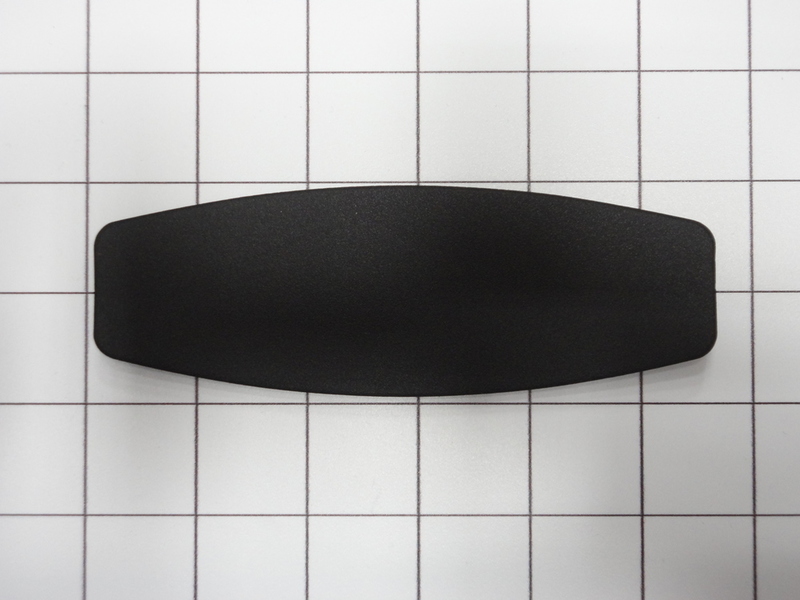

6	WP8519336	Pad, Door Handle	$48.90 Special Order
7	3980212	Handle, Door	$30.20 Special Order
8	3400224	Screw, 1/4-20 X 1/2	$4.40 Special Order
9	8519374	Plug, Door Handle (2)	$35.90 Special Order
10	8557500	Door Assembly (inner)	$175.30 Special Order
11	WP355515	Screw, 8-18 X 11/16	$4.80 Special Order
12	3980213	Door, Outer	$100.10 Special Order
13	WP8545878	Window	$91.10 Special Order
