Frigidaire FPUS2686LF0 Parts List

Popular Searches: (Click to search)    115v  assy  bin  board  carbon  crisper  damper  defrost  door  fan  filter  kit  motor  pan  seal  solenoid  thermostat  triple  valve  water


Select a Diagram

03 - Freezer Door

05 - Refrigerator Door

07 - Cabinet

09 - Shelves

11 - Controls

13 - System

15 - Ice & Water Dispenser

17 - Ice Container

19 - Ice Maker

01 - Cover

Select Diagram ... 03 - Freezer Door 05 - Refrigerator Door 07 - Cabinet 09 - Shelves 11 - Controls 13 - System 15 - Ice & Water Dispenser 17 - Ice Container 19 - Ice Maker 01 - Cover

15 - Ice & Water Dispenser   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	218976409	Tube-water-door	$43.60  In-Stock Retail: $42.49

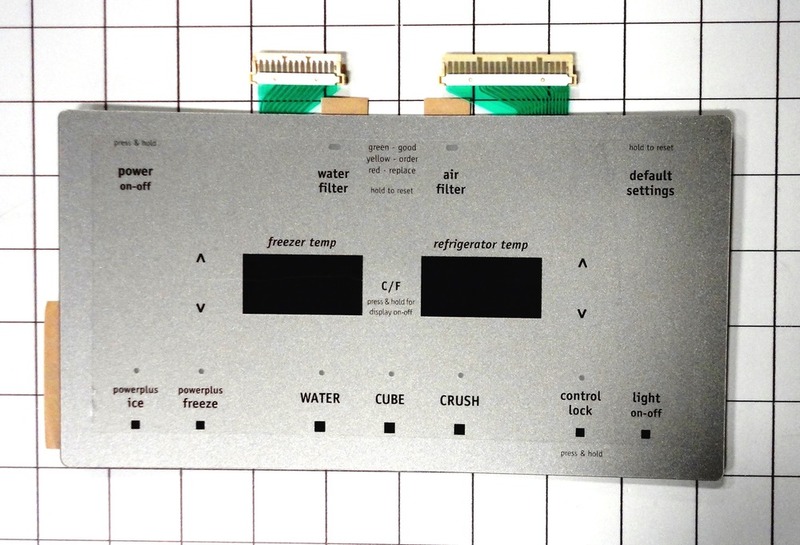

F2	242166910	Switch-membrane (Replaces: 242035610)	$139.30 Special Order
4	242034203	Cover-module,gray	$113.50  In-Stock Retail: $110.65
4A	242061101	Trim,facade	$51.30 Special Order
8	242074223	Module-dispenser   (Replaces: 242074205)	$184.50  In-Stock Retail: $179.99
23	242092404	Drip Tray,gray	$13.20 Special Order
F38C	241973711	Board-control (Replaces: 241973706)	$234.80  In-Stock Retail: $228.99
82	240363403	Screw,8-18 X 0.500 ,2	$10.80 Special Order
94	242034101	Housing-control	$36.40 Special Order
100	241753304	Liner-sump,gray	Call for Availability
101	218493101	Screw,hex Washer Head ,8-18ab X 1-3/4	$9.80  In-Stock Retail: $9.49
NI	241850615	Tube-water Inlet,inlet Valve ,to I/m Inlet (Replaces: 218976915)	$25.20  In-Stock Retail: $24.49
	240561701	Seal-water Inlet,inlet Valve ,to Ice Maker	$14.90  In-Stock Retail: $14.49
	218976429	Tube-water Inlet,97.50`` ,brown/tan	$29.30  In-Stock Retail: $28.49
	218976419	Tube-water Inlet,valve To Door	$16.40 Special Order
	218515403	Clip-grille	$21.10 Special Order
	5303918596	Dispenser Heater Kit,115 (Replaces: 5303918371)	$226.10  In-Stock Retail: $220.49
