Maytag 31100PAA Parts List

Popular Searches: (Click to search)    blk  burner  door  handle  knob  lighter  pilot  seal  spacer  thermostat  top  valve


Select a Diagram

01 - Body

02 - Control Panel/top Assembly

03 - Door/drawer (31100pax)

04 - Gas Controls

05 - Oven/base

Select Diagram ... 01 - Body 02 - Control Panel/top Assembly 03 - Door/drawer (31100pax) 04 - Gas Controls 05 - Oven/base

04 - Gas Controls   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.70  In-Stock Retail: $8.47
	74002424	Pipe, Manifold (Series: 10)	$21.30 Special Order
2	12002287	Valve, Burner (Series: 10)   (Replaces: 74002383)	Call for Availability
	W10491986	Screw, Valve (Series: 10)	$4.50 Special Order
3	7515P041-60	Thermostat (Series: 10) (Replaces: 74006182 74002425)	Call for Availability
	7101P010-60	Screw, Control (Series: 10)	$1.70 Special Order
4	1555222	Nut, Loxit (3/16``) (Series: 10)	$4.40 Special Order
5	WP7510P083-60	Regulator, Pressure (Series: 10)	$43.30  In-Stock Retail: $93.53
6	WP74002426	Pilot, Burner (Series: 10) (Replaces: 74002426)	$67.70 Special Order
	7103P128-60	Nut, Top Pilot (Series: 10)	$4.40 Special Order
7	3601F239-45	Baffle, Oven Bottom (Series: 10)	$25.20 Special Order
8	74011349	Cone, Burner Pilot (Series: 10)	$4.40 Special Order
9	WP7101P338-60	Screw (8bx3/8-ni) (Series: 10)   (Replaces: 7101P338-60)	$4.40 Special Order
	WP74003332	Burner, Top (Series: 10)   (Replaces: 74002392)	$124.40 Special Order
10	74002434	Burner, Oven (Series: 10)	Call for Availability
	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.70  In-Stock Retail: $8.47
11	74006183	Lighter Pilot (Series: 10)   (Replaces: 7432P068-60)	$52.10 Special Order
	WP4159193	Screw (Series: 10)	$2.40  In-Stock Retail: $2.25
12	3414F108-44	Tubing 3/16`` Sub (Series: 10)	Call for Availability
13	1555261K	Nut & Ferrule (3/16``) (Series: 10)	$1.50 Special Order

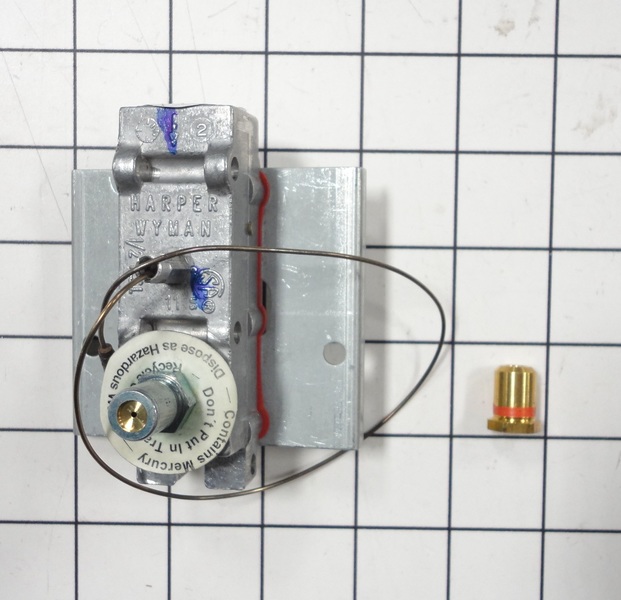

14	12002724	Valve, Oven (Series: 10)	$156.10 Special Order
	WP7101P062-60	Screw No.10 X 2 (Series: 10)	$4.80 Special Order
15	74001062	Tubing, Oven Valve (3/8``) (Series: 15)	Call for Availability
	12001100	Kit, Tubing W/loxit (3/8``) (Series: 10)	Call for Availability
16	7103P130-60	Nut, Loxit (3/8``) (Series: 10)	$5.70 Special Order
17	7103P030-60	Nut, Wing (Series: 10)	$4.60 Special Order
	W10124350	Not Required Part Or See Note Lp Conversion Kit - N/a (converted On The Unit) (Series: 10)	Call for Availability

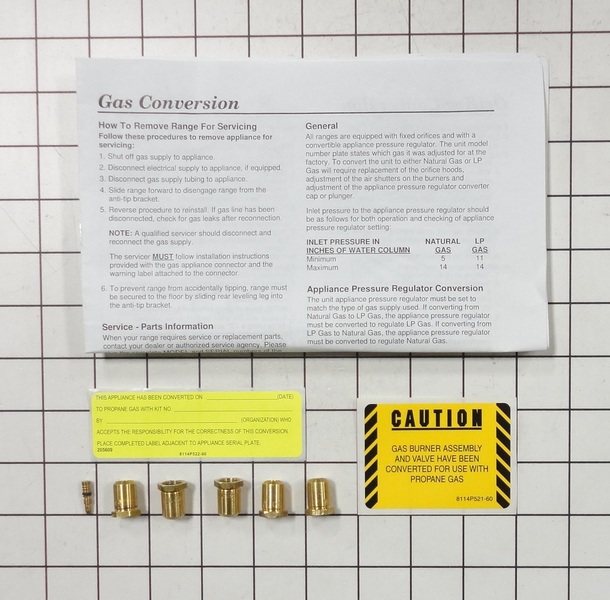

	74009923	Kit, Natural To Lp (Series: 39)	$39.00 Special Order
