Maytag DWU7400BAE Parts List

Popular Searches: (Click to search)    assembly  assy  door  hinge  hose  housing  link  long  lower  lwr  motor  pin  pump  rack  seal  spring  switch  upr  wax  wheel


Select a Diagram

01 - Blower

02 - Control Panel

03 - Door

04 - Pump & Motor

05 - Racks

06 - Rinse Aid & Soap Dispenser

07 - Tub

Select Diagram ... 01 - Blower 02 - Control Panel 03 - Door 04 - Pump & Motor 05 - Racks 06 - Rinse Aid & Soap Dispenser 07 - Tub

02 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	99001264	Panel, Control (wht) (Series: A0)	$51.30 Special Order
	WP33002917	Screw, No.8x1/2 Hex Washer Head (Series: A0)	$4.80 Special Order
2	903301	Knob, Timer (wht) (Series: A0)	$6.20 Special Order
3	903300	Switch, Control (4 Button-wht) (Series: A0)	$35.90 Special Order
	WP33002917	Screw, No.8x1/2 Hex Washer Head (Series: A0)	$4.80 Special Order

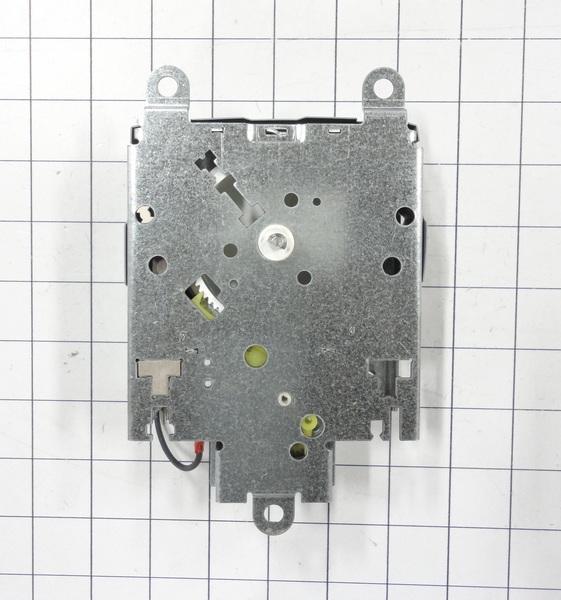

4	WP99001142	Timer (Series: A0)	$141.30 Special Order
	WP33002917	Screw, No.8x1/2 Hex Washer Head (Series: A0)	$4.80 Special Order
5	WP99002240	Holder, Door Switch (Series: A0)   (Replaces: 99001077)	$41.60 Special Order
	WP33002917	Screw, No.8x1/2 Hex Washer Head (Series: A0)	$4.80 Special Order
6	Y912667	Barrier, Control Panel (Series: A0)	Call for Availability
7	WP903115	Lock Light (Series: A0)	$4.80 Special Order
8	Y912696	Lens, Indicator Light (Series: A0)	Call for Availability
9	99002254	Switch, Door (Series: A0) (Replaces: 903086)	$76.30 Special Order
10	99001082	Handle, Latch (wht) (Series: A0)	$11.10 Special Order
11	99001156	Wire Harness, Main (Series: B6)	Call for Availability
	99001027	Wire Harness, Main (Series: A0)	$60.00 Special Order
12	Y912830	Manual, Use & Care (frch) (Series: B6)	Call for Availability
	912757	Manual, Use & Care (Series: A0)	$6.20 Special Order
