Frigidaire 30KEMAWAD5 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    block  element  hinge  oven  pan  rack  terminal


Select a Diagram


02 - Body Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 3205587 Grommet-main Top (2) $2.30
Special Order
2 3051063 Grommet (2) $27.30
Special Order
3 5303051061 Panel-side-white (2) $128.50
Special Order
5 3016533 Liner-oven Rh Call for Availability
5A 3017599 Liner-oven Lh Call for Availability
5B 3017789 Liner - Top Call for Availability
5C 3017788 Liner - Back Call for Availability
5D 3017787 Liner - Bottom Call for Availability
6 3131811 Support-control Panel Call for Availability
7 3205578 Front - Frame Call for Availability

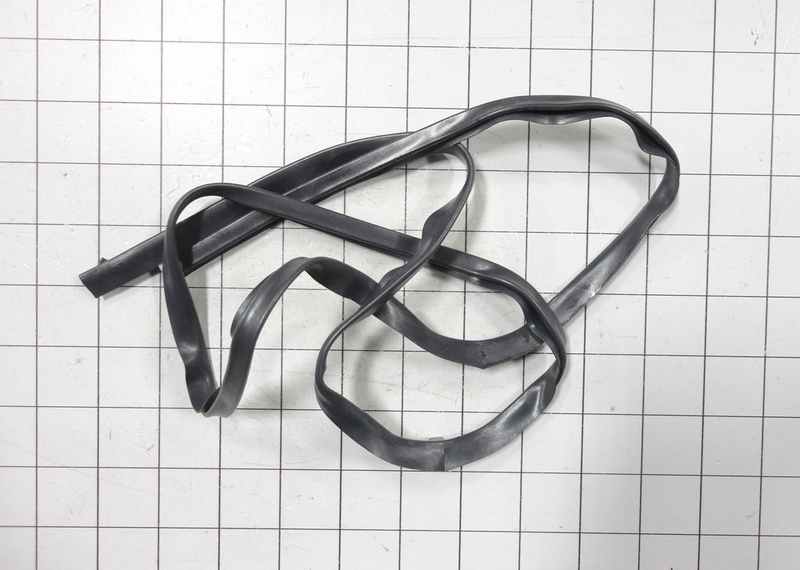

8 5308008022 5308008022 Seal-door $92.80
Special Order
10 5303009293 Element-broil Call for Availability
11 5303009445 Support-broil Element Call for Availability
12 5303017712 Insert-broiler Call for Availability
13 5303016973 Broiler-pan $103.60
Special Order
14 5303015714 Rack Oven (2) $112.70
 In-Stock
Retail: $109.93
15 5303017027 Element-bake Call for Availability
19 318348800 318348800 Hinge Rh
(Replaces: 5303204670)
Call for Availability
19A 5303204672 Hinge Lh $58.00
Special Order
20 5303009435 Spring (2) $23.90
Special Order
21 5303210257 Leveling Leg (4) $16.40
Special Order
22 5303210255 Base Rail Rh (1) $16.50
Special Order
22A 5303210256 Base Rail Lh (1) $16.50
Special Order
23 08013990 Pan-insulation Call for Availability
24 3017029 Insulation - Wrap Call for Availability
25 3017028 Insulation Back Call for Availability
26 3051096 Support-oven (2) $1.10
Special Order
27 3205588 Support - Consuit $2.60
Special Order
28 5304409888 5304409888 Terminal Block
(Replaces: 5303935061 5306563359)
$8.20
 In-Stock
Retail: $7.99
31 3205593 Cover - Back Call for Availability
32 5303274003 Main-back Call for Availability
33 11088003 Burner Box Call for Availability
34 3017034 Shield-switch Call for Availability
35 3051064 Vent Tube Call for Availability
*49942 5303210892 Retainer-counter Weight (2) Call for Availability
5303210891 Weight-cement Block Anti-tip (2) Call for Availability
3934059 Anti - Tip Bracket $9.10
Special Order
*49943 19100210113 Wiring Diagram (not For Purchase) Call for Availability
