Maytag DWC8240AAW Parts List

Popular Searches: (Click to search)    aerator  assembly  assy  door  hinge  housing  injector  link  long  lwr  motor  plug  pump  rack  seal  spring  switch  upr  wax  wheel


Select a Diagram

01 - Blower

02 - Cabinet & Faucet Coupler Assy.

03 - Control Panel

04 - Door

05 - Pump & Motor

06 - Racks

07 - Rinse Aid & Soap Dispenser

08 - Tub

Select Diagram ... 01 - Blower 02 - Cabinet & Faucet Coupler Assy. 03 - Control Panel 04 - Door 05 - Pump & Motor 06 - Racks 07 - Rinse Aid & Soap Dispenser 08 - Tub

08 - Tub   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP902894	Seal, Door (Series: A0) (Replaces: 902894)	$56.90  In-Stock Retail: $55.47
2	903406	Valve, Water (Series: A0)	$59.80 Special Order
	WP489128	Screw (Series: A0)	$6.70 Special Order
3	WP596669	Clamp, Spring (Series: A0)	$4.80 Special Order
4	912633	Hose, Injector (Series: A0)	Call for Availability
5	912644	Seal Ring, Injector (Series: A0)	$6.00 Special Order
	912533	Injector, Water (Series: A0)	$27.20 Special Order
6	99001076	Strap, Insulation (Series: A0)	$0.70 Special Order
	WPW10223013	Insulation, Tub (Series: A0)	$54.00 Special Order
	99001057	Fastener, Panel (Series: A0)	$4.40 Special Order
7	911917	Fastener, Insulation (Series: A0)	$4.40 Special Order
8	WP99001355	Hook, Latch (Series: A0)	$17.20 Special Order
	912648	Spring, Latch (Series: A0)	Call for Availability
	912650	Retainer, Latch (Series: A0)	$4.40 Special Order
	Y912873	Screw, Latch (Series: A0)	$4.80 Special Order
9	WP1163283	Screw (Series: A0)	$4.80 Special Order
10	910069	Washer, Tub Top (Series: A0)	$25.00 Special Order
11	WP912647	Hose, Top Shower (Series: A0)   (Replaces: 912647)	Call for Availability
12	WPW10548433	Clamp, Spray Arm Hose (Series: A0)	$1.60 Special Order
13	Y912686	Ring, Locking (Series: A0)	$26.30 Special Order
14	99001008	Clip, Thermostat (Series: A6)	$4.40 Special Order
	Y912698	Bracket, Thermostat (Series: A0)	$7.00 Special Order
15	99001006	Thermostat, Limiting (Series: A6)	$21.70 Special Order
	99001005	Thermostat, Boost (36tx02) (Series: A6)	Call for Availability

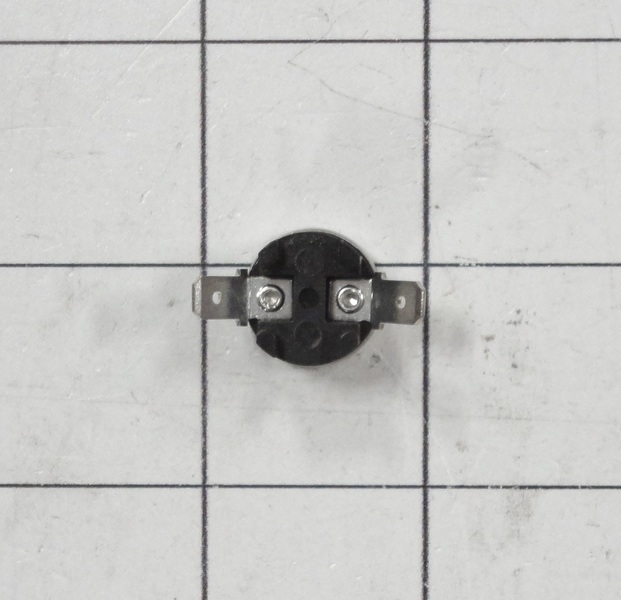

	903120	Thermostat (temp. Boost) (Series: A0)	Call for Availability
	903078	Thermostat (Series: A0)	Call for Availability
16	912644	Seal Ring, Injector (Series: A0)	$6.00 Special Order
17	6-912651	Bracket, Adjusting (Series: A0)	$27.20 Special Order
18	912613	Screw, Adjusting Bracket (Series: A0)	$4.40 Special Order
19	912645	Nut, Heating Element (Series: A0)	$4.40 Special Order
20	Y912659	Cap, Air Inlet (Series: A0)	$4.40 Special Order
	912622	Screw (Series: A0)	$4.40 Special Order
21	910603	Washer, Heating Element (Series: A0)	$0.60 Special Order
22	903096	Element, Heating (Series: A0)	Call for Availability
23	Y912541	Bracket, Heating Element (Series: A0)	$4.40 Special Order
24	WPW10116811	Retainer, Snap Spray (Series: A0) (Replaces: Y912681)	$6.20 Special Order
25	WP912680	Outlet, Snap (Series: A0)	$34.20  In-Stock Retail: $33.31

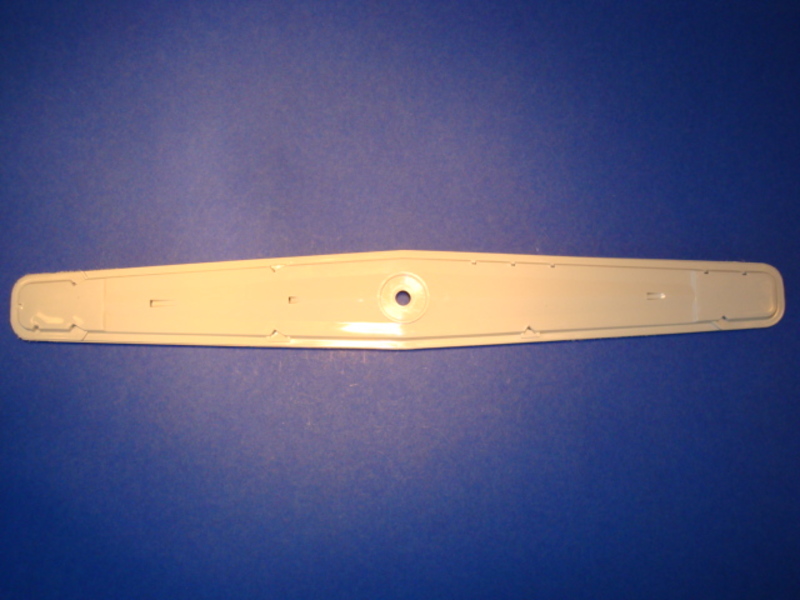

26	WP903079	Spray Arm Assembly (upr) (Series: A0) (Replaces: 903079)	$43.80 Special Order
27	WPY912545	Track, Rack (Series: A0)	$55.10 Special Order
28	WP99002342	Wheel, Tub (Series: A0) (Replaces: 912548)	$7.30 Special Order
29	WPY912798	Washer, Tub Wheel (Series: A0)	$4.80 Special Order
30	WP99002135	Stop, Rack (Series: A0)	$4.80 Special Order
31	WP99002363	Float (Series: A0)	$4.80 Special Order
32	3400409	Screw (Series: A0)	$4.40 Special Order
	WP99002560	Switch, Water Level (Series: A0) (Replaces: 900882)	$48.30 Special Order
33	6-912656	Bracket, Water Level Switch (Series: A0)	$4.00 Special Order
	WP489128	Screw (Series: A0)	$6.70 Special Order
34	912014	Lever, Actuator (Series: A0)	$38.30 Special Order
35	99002531	Pin, Lever Pivot (Series: A0)   (Replaces: 912015)	$6.20 Special Order
36	WP911265	Palnut, Float (Series: A0) (Replaces: 911265)	$4.80 Special Order
37	WP6-912366	Screw (Series: A0)	$4.80 Special Order
	6-912563	Box, Terminal (Series: A0)	$27.10 Special Order
38	WP99002947	Shaft, Tub Wheel (Series: A0) (Replaces: 912549)	$7.70  In-Stock Retail: $7.50
39	WP489128	Screw (Series: A0)	$6.70 Special Order
	912654	Strap, Support (Series: A0)	$7.00 Special Order
