04 - Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	99001416	Panel, Decorator (wht) (Series: 10)	Call for Availability
	DAX2000AXM	Panel Accessory Kit (alm) (Series: 10)	Call for Availability
	7101P131-60	Screw, Decorator Panel (wht) (Series: 10)	$4.00 Special Order
2	99001415	Filler, Front Panel (Series: 10)	$21.20 Special Order
3	99001688	Ground Wire, Reinforcement (Series: 30)	$4.40 Special Order
	99001419	Door, Outer (Series: 10)	$21.30 Special Order
4	Y912666	Retainer, Wire (Series: 10)	$0.60 Special Order
	WP33002917	Screw, No.8x1/2 Hex Washer Head (Series: 10)	$4.80 Special Order

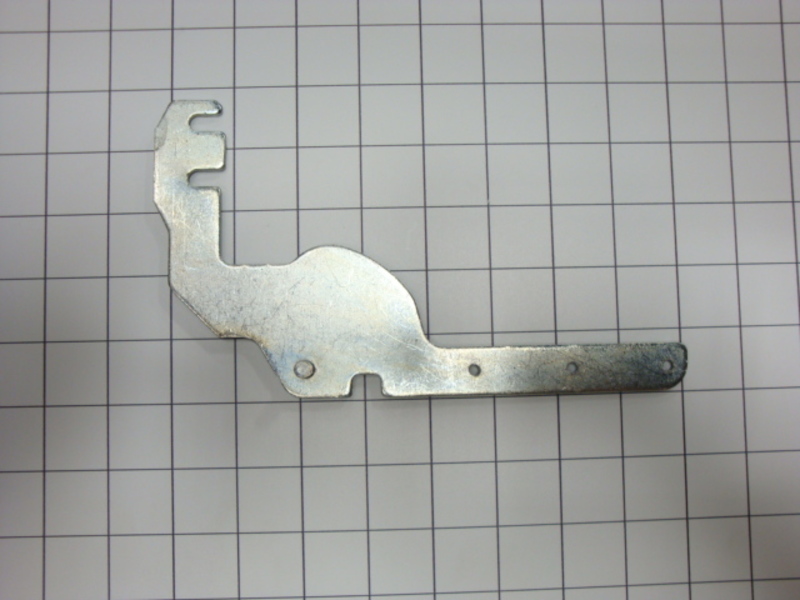

5	6-914562	Hinge (rt) (Series: 10)	$80.20 Special Order

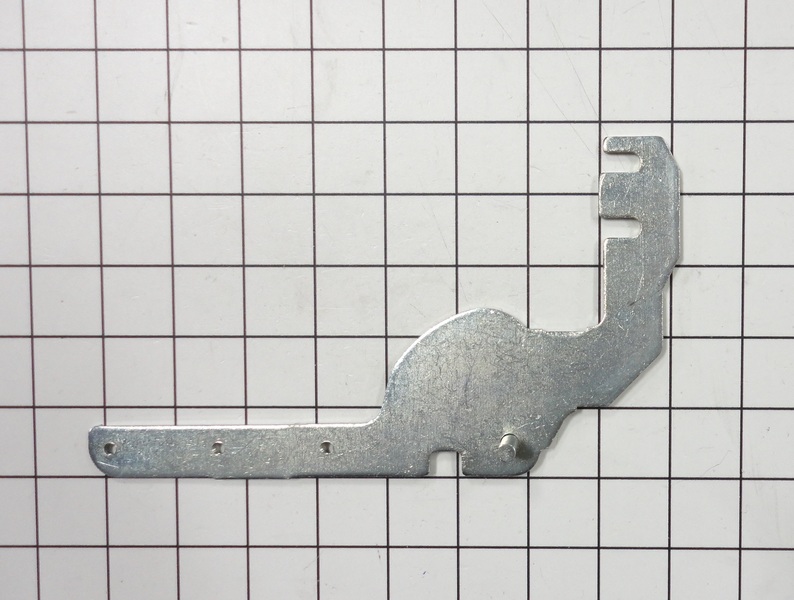

	6-914561	Hinge (lt) (Series: 10)	$11.70 Special Order
	99001075	Screw (Series: 10)	$4.00 Special Order

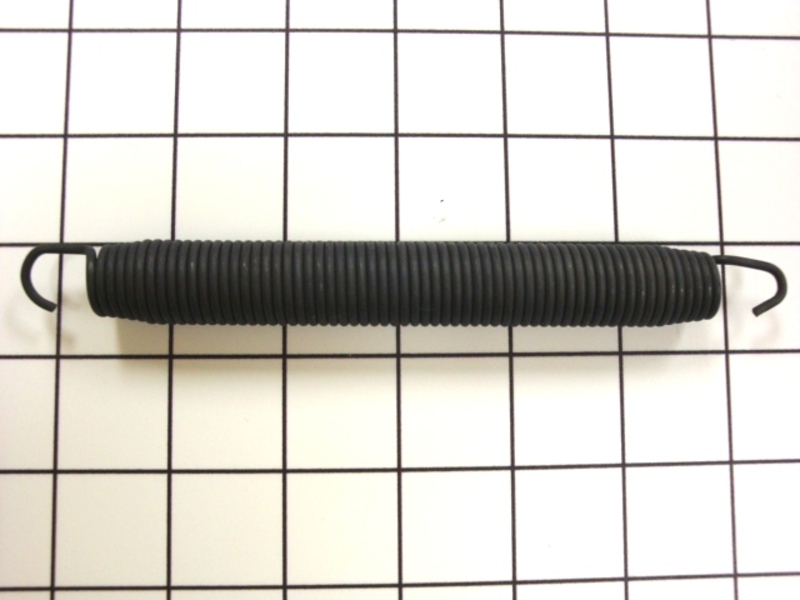

6	WP912652	Spring, Door (Series: 10) (Replaces: 912652)	$5.80  In-Stock Retail: $5.62
7	99001718	Insulation, Door (Series: 10)	Call for Availability
8	99001212	Back, Vent (Series: 10)	$7.40 Special Order
	99001104	Seal, Vent (Series: 10)	$29.90 Special Order
	6-920567	Door, Inner (w/damper) (Series: 10)	$149.10 Special Order
	WPY912620	Screw (Series: 10)	$4.80 Special Order
9	Y912668	Bar, Reinforcement (Series: 10)	$4.40 Special Order
10	99002413	Insulation, Access Panel (Series: 10)	$25.50 Special Order
11	WP912653	Link, Door Spring (Series: 10) (Replaces: 912653)	$4.80  In-Stock Retail: $4.59
12	99001194	Screw, Access Panel (Series: 10)	$4.00 Special Order
	99002299	Panel, Access (wht) (Series: 10)   (Replaces: 99001411)	Call for Availability
13	WPW10117748	Foam Strip, Insulation (Series: 10) (Replaces: 903233)	$19.10  In-Stock Retail: $18.56
14	WP6-912366	Screw (Series: 10)	$4.80 Special Order
	WPW10339879	Strap, Cable (Series: 10)	$4.80 Special Order
	99001414	Shield, Tub (Series: 10)	$40.90 Special Order
15	WP6-912366	Screw (Series: 10)	$4.80 Special Order
	99001444	Strap, Harness (Series: 10)	$4.40 Special Order
