Frigidaire FPCE24VFH1 Parts List

Popular Searches: (Click to search)    aluminum  blade  drain  drier  evap  fan  filter  heater  light  motor  nut  push  screw  strap  switch  timer  tube


Select a Diagram

02 - Freezer Door Parts

03 - Refrigerator Door Parts

04 - Cabinet Parts

05 - Cabinet Parts

06 - Shelves And Supports

07 - Refrigerator Control Assembly, Damp

08 - System And Automatic Defrost Parts

Select Diagram ... 02 - Freezer Door Parts 03 - Refrigerator Door Parts 04 - Cabinet Parts 05 - Cabinet Parts 06 - Shelves And Supports 07 - Refrigerator Control Assembly, Damp 08 - System And Automatic Defrost Parts

06 - Shelves And Supports   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
2	3200729	Trim-basket	Call for Availability

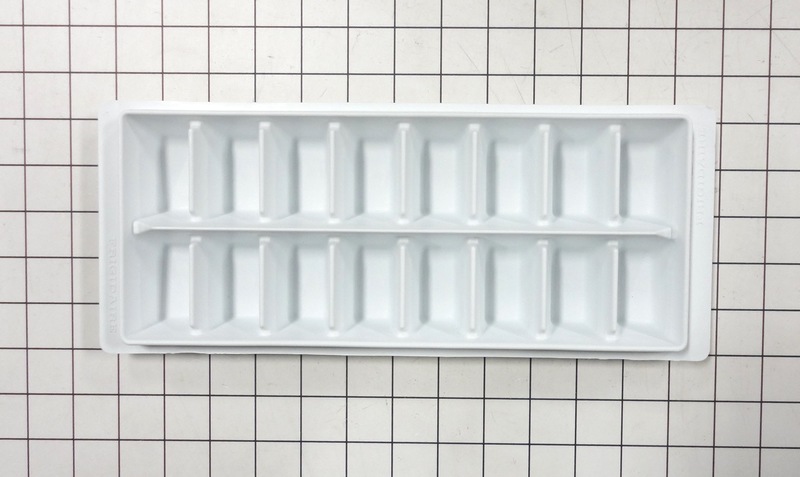

10	01121808	Ice Tray, Plastic	Call for Availability
11	08001031	Shelf - Freezer	Call for Availability
11A	08001032	Shelf-freezer, (3)	Call for Availability
24	5303272461	Frame-refr Shelf, Cantilever, (3)	$33.80 Special Order
25	5303200662	Cover-crisper Pan, Upper	Call for Availability
25C	5303200580	Control - Humidity (non-illustrated)	$10.00 Special Order
25A	5316972401	Cover-crisper Pan, Lower   (Replaces: 3200663)	Call for Availability
	5303286909	Shelf-glass, Crisper Cover (non-illustrated)   (Replaces: 3201637 5303200689)	$18.40 Special Order
25B	3204600	Trim-crisper Cover, Upper (non-illustrated)	$16.40 Special Order
	5303200632	Cover-crisper Pan, Middle	$115.90 Special Order
26	3200690	Pan-storage Upper	Call for Availability
26A	3200688	Pan-storage Lower	Call for Availability
26B	3200687	Pan-storage-middle	Call for Availability
27	5303201640	Support-crisper Cvr, Rh	$21.90 Special Order
27A	5303201639	Support-crisper Cvr, Lh (non-illustrated)	$45.90 Special Order
29	3200685	Trim-refr Shelf, (3)	$9.60 Special Order
29A	5303209742	Retainer-glass (3) (non-illustrated)	Call for Availability
33	5303205880	Gasket-crisper Cover	$2.60 Special Order
33A	5308009648	Gasket-crisper Cover	$2.60 Special Order
34	5303212895	Container, Ice	$70.80 Special Order
35	3200544	Trim-storage Pan, (3)	$24.50 Special Order
39	3018989	Trim-frzr Shelf, (5)	$8.60 Special Order
40	5303272463	Shelf-glass, Refr Shelf, (3)	$40.90 Special Order
41	5303209981	Trim-refr Shelf, Snap-on, Rear, (3)	Call for Availability
41A	5303211351	Lock-rear Trim (non-illustrated)	$2.50 Special Order
49	5308001015	Basket-sliding	$51.20 Special Order
51	5303001098	Hanger, Basket, Rh	$22.20 Special Order
52	5303001099	Hanger, Basket, Lh	Call for Availability
57	5303271652	Ferrule-outer	Call for Availability
	5303271653	Ferrule-inner	$14.20 Special Order
60	5308010253	Screw	$9.30 Special Order
61	08009824	Compartment-ice Tray	Call for Availability
66	5303200682	Rack-wine	$8.80 Special Order
*55500	5308008250	Clip-crisper Cover, Rh	$18.80 Special Order
	5300170910	Clip-cantilever Shlf	$2.80 Special Order
	5308008251	Clip-crisper Cover, Lh	$30.50 Special Order
