Maytag DRS2462BB (BOM: PDRS2462BB0) Parts List

Popular Searches: (Click to search)    blk  bulb  capacitor  chute  clip  door  evaporator  fan  filter  ice  maker  net  overload  primary  relay  secondary  single  speed  valve  water


Select a Diagram

01 - Accessory Page

02 - Cabinet Back

03 - Cabinet Parts

04 - Controls, Light Shield & Door Handles

05 - Evap Assy, Drier & Rollers

06 - Façade

07 - Freezer Door

08 - Fz Lighting & Auger Assy

09 - Fz Shelving, Filter & Evap Fan Motor

10 - Hinges, & Refrigerator Shelving

11 - Ice Bucket/auger Assy

12 - Machine Compartment

13 - Refrigerator Door

Select Diagram ... 01 - Accessory Page 02 - Cabinet Back 03 - Cabinet Parts 04 - Controls, Light Shield & Door Handles 05 - Evap Assy, Drier & Rollers 06 - Façade 07 - Freezer Door 08 - Fz Lighting & Auger Assy 09 - Fz Shelving, Filter & Evap Fan Motor 10 - Hinges, & Refrigerator Shelving 11 - Ice Bucket/auger Assy 12 - Machine Compartment 13 - Refrigerator Door

06 - Façade   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
12	12596002B	Facade(black)	Call for Availability
22	67006425	Screw, Sm (Replaces: M0238642)	$4.80  In-Stock Retail: $4.59
32	12665201B	Insert,facade(black)-dba	Call for Availability

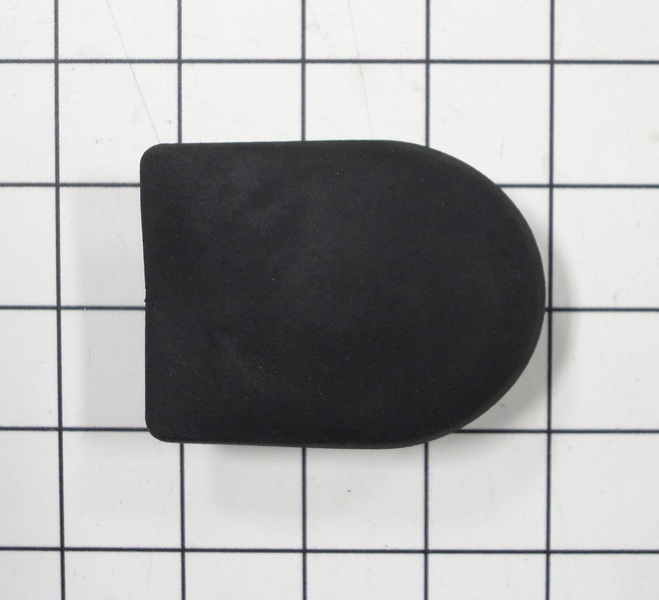

42	12598902B	Actr Pad Frame Assy. (blk)	Call for Availability
81	12596102B	Tray,sump(black)	$26.00 Special Order
91	12596201B	Grille,sump(black)	Call for Availability
102	12550401	Board,control	$71.80 Special Order
112	2006254	Screw,hi/lo	$8.50 Special Order
132	WP12575501	Switch, Limit (Replaces: 12575501)	$40.20 Special Order
NI	WPM0104106	Clip   (Replaces: M0104106)	$4.80 Special Order
