03 - Front Panel, Timer, Timer Dial & Knob   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
001	NLA	Button Marker (Series: 02)	Call for Availability
002	211251	Screw (Series: 02)	$4.40 Special Order
003	WP22001650	Fastener, Panel (Series: 02)	$4.80  In-Stock Retail: $4.59
004	213077	Cap For Timer Knob (Series: 02)	Call for Availability
005	Y302829	Timer Dial & Knob (Series: 02)	$20.50 Special Order
006	303963	Indicator Light (Series: 02)	$8.00 Special Order
007	W10169313	Door Switch (Series: 00) (Replaces: Y304575)	$18.00  In-Stock Retail: $17.56
008	Y304585	Timer Motor Rpr (Series: 02)	$77.60 Special Order
009	NLA	Timer----na (Series: 02)	Call for Availability
010	NLA	Front Panel - Dg Models (Series: 02)	Call for Availability
011	NLA	Main Wire Harness (Series: 02)	Call for Availability
012	W10169313	Switch, Door (Series: 01) (Replaces: Y305753)	$18.00  In-Stock Retail: $17.56
013	Y305758	Timer 240-50 (Series: 02)	$113.90 Special Order
014	Y306194	Main Wire Harness (Series: 02)	$61.30 Special Order
015	Y310376	Clip, Wire Harness (Series: 02)	$4.40 Special Order
016	911445	Closed Connector (Series: 02)	$4.40 Special Order
017	W10155650	Nut (Series: 02)	$8.70 Special Order

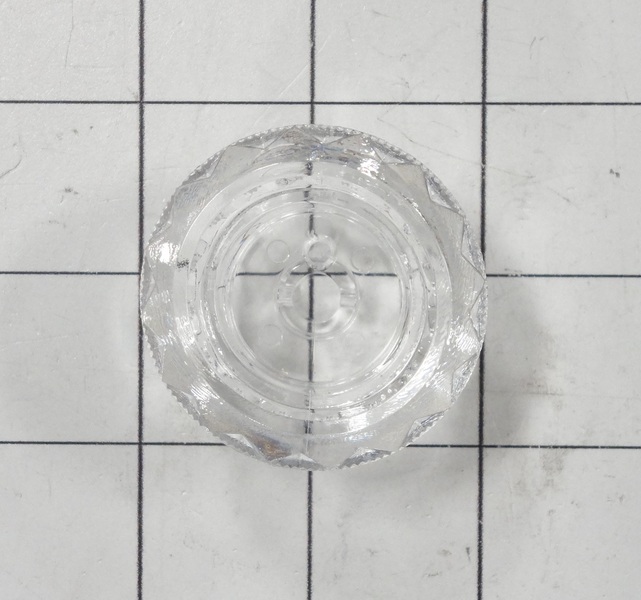

018	312852	Selector Knob-clear Acrylic (Series: 02)	Call for Availability
019	NLA	Screw (Series: 02)	Call for Availability
020	NLA	Cover, Thread (Series: 02)	Call for Availability
