Frigidaire FGF368CXASA Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    anti  bracket  burner  drawer  front  glide  ignitor  instr  kit  mtg  nut  oven  probe  rack  rear  receptacle  screw  tip  top  valve


Select a Diagram


05 - Burner   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 316113801 Manifold-pipe $44.60
Special Order
F2 316127500 Valve,top Burner ,9k Call for Availability
F2A 316127502 Valve,top Burner ,large ,11k $73.80
Special Order
F2B 316127507 Valve,top Burner ,5k $50.20
Special Order
F3 316001824 Wiring Harness,w/igntr Switch $152.90
Special Order
F4 316059612 316059612 Tube-burner, Red, Rf $59.70
Special Order
F5 316059613 316059613 Tube-burner, Green, Lf $58.90
Special Order
F6 316059614 Tube,burner ,natural ,rr $85.90
Special Order
F7 316059615 Tube-burner, Black, Lr $76.90
Special Order
F8 5304505695 Module,spark   (Replaces: 316135702 316135701) $44.10
 In-Stock
Retail: $42.99
10B 316010605 Burner Assy,sealed ,small ,5k Call for Availability
F10 5303935025 5303935025 Burner Assy,sealed ,small ,9k Call for Availability
F10A 5303935098 Burner Assy,sealed ,large ,11,100 Btu ,(2), Includes,11,37,44a,45 $128.70
Special Order
11 316011200 316011200 Ignitor,top Burner ,(4) ,w/mtg Bracket $25.50
 In-Stock
Retail: $25.49
F13 316065005 Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings $51.60
Special Order
F14 5304521339 Regulator,pressure   (Replaces: 316091706) $71.30
 In-Stock
Retail: $69.49
15 316091600 316091600 Bracket-regulator $49.80
Special Order
F16 316065003 Tube,valve To Regul. `3/8 $86.80
Special Order
F17 5303208499 5303208499 Valve-safety-dual $378.30
 In-Stock
Retail: $368.99
F18 3131290 Burner-oven $108.60
Special Order
F19 5303935066 5303935066 Ignitor,oven Kit ,w/nut & Instr $59.95
 In-Stock
Retail: $34.99
20 3131284 Baffle-oven Burner $100.40
Special Order
21 5303013272 Nut,hex Head Sems $12.90
 In-Stock
Retail: $12.49
F22 316065002 Tube-valve To Mixer Call for Availability
F23 08067935 Burner-broiler $97.90
Special Order
F24 316070400 Elbow`mixer Call for Availability
25 5303210379 Baffle-broiler $123.10
Special Order
F26 316119302 Ignitor,broiler $120.50
Special Order
37 316069301 Screw,burner Mtg $0.67
 In-Stock
Retail: $0.67
44 5303210090 Orifice,top Burner ,9k $37.70
 In-Stock
Retail: $36.71
44B 316010809 Orifice,top Burner ,5k $25.20
Special Order
44A 316010801 Orifice,top Burner ,large ,(2) $25.80
Special Order
45 316011100 Screw,self-tapping ,m3x5.8 ,ignitor Mtg $2.40
Special Order
46 316074700 Plate-burner Tube Call for Availability

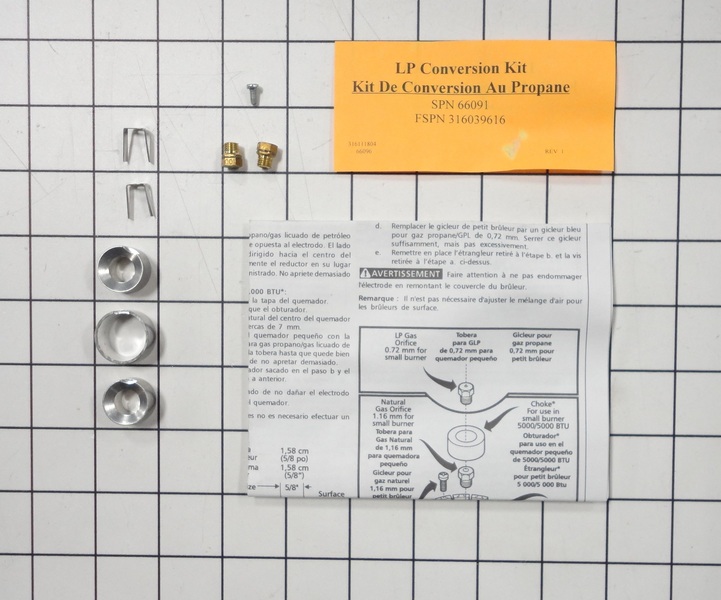

F47 316039616 316039616 Lp Conversion Kit,orange $11.00
Special Order
NI 316113400 Spacer,mixer Elbow $0.80
Special Order
08068018 Shield,wire ,safety Valve $20.90
Special Order
316021104 Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt $5.70
Special Order
5303289034 5303289034 Wiring Harness, Module/igniter $132.20
Special Order
316048200 Screw,hex Washer Head ,1/4-20 X 0.31 ,valve Mounting,w/gasket $9.70
Special Order
5303271648 Screw,wafer Hd Sq Dr ,8-18ab X 0.5 $9.80
Special Order
