Maytag CWE5100ACB10 Parts List

Popular Searches: (Click to search)    2oz  auxillary  black  brochure  door  gourmet  griddle  grounding  horizontal  paint  panel  relay  screw  seal  spray  thermostat  tips  touch  upper  white


Select a Diagram

01 - Oven Parts

02 - Lower Door Parts

03 - Upper Door Parts

04 - Internal Oven Parts

05 - Control Panel Parts

06 - Optional Parts

Select Diagram ... 01 - Oven Parts 02 - Lower Door Parts 03 - Upper Door Parts 04 - Internal Oven Parts 05 - Control Panel Parts 06 - Optional Parts

02 - Lower Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP2401F161-70	Panel-door	$206.10 Special Order
2	7002P019-60	Insulation, Door	$25.10 Special Order
3	7902P715-60	Glass, Inner	Call for Availability
4	7112P093-60	Retainer, Glass Clip	Call for Availability
5	3601F103-51	Baffle, Door	$25.10 Special Order
6	74001856	Hinge, Door	$76.00  In-Stock Retail: $74.14
7	WP4159193	Screw (4)	$2.40  In-Stock Retail: $2.25
8	8010P127-60	Spacer, Handle (2)	$14.40 Special Order
9	2402W231-19	Lining, Oven Door	$45.40 Special Order
10	3603F013-80	Frame, Window	Call for Availability
11	74003986	Spacer, Nylon	$8.40 Special Order
12	WP7212P006-60	Seal, Door (horizontal) (Replaces: 7212P006-60)	$70.80 Special Order

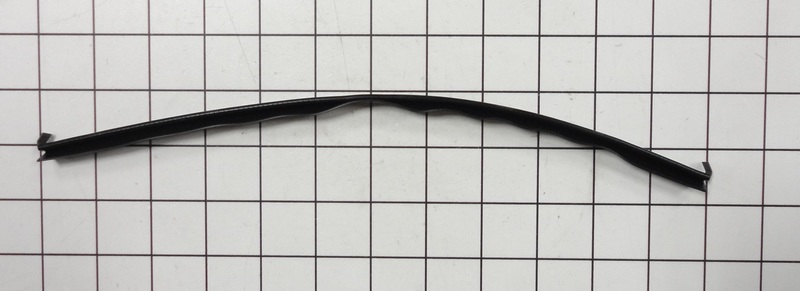

13	WP7212P007-60	Seal, Door (vertical)	$71.70  In-Stock Retail: $69.86
14	WP7902P424-60	Assy., Door Glass	$66.00 Special Order
15	7701P136-60	Door Handle	$63.60 Special Order
16	WP7101P126-60	Screw	$4.80 Special Order
17	WP4381696	Screw, Handle   (Replaces: 7101P326-60)	$4.50 Special Order
