Maytag CW9500W Parts List

Popular Searches: (Click to search) agitator assembly belt cap drain friction hose housing idler insert knob mixing nut pulley ring seal spin timer transmission wht

Select a Diagram

01 - Cabinet & Base

02 - Control Panel

03 - Mixing Valve And Hoses

04 - Motor, Pump And Idler Assembly

05 - Supplemental Information

06 - Top And Lid Switch

07 - Transmission & Brake

08 - Tub (inner & Outer)

09 - Tub, Inner & Outer (series 12)

10 - Wiring Information

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	27001110	Console (wht) (Series: 10)	$39.70 Special Order
2	27001050	Facia Ground Wire Assembly (Series: 10)	$4.40 Special Order
	27001198	Facia (Series: 10)	$31.80 Special Order
3	WP22001664	Timer Knob Insert/cap (wht) (Series: 10) (Replaces: 22001664)	$4.80 In-Stock Retail: $4.59

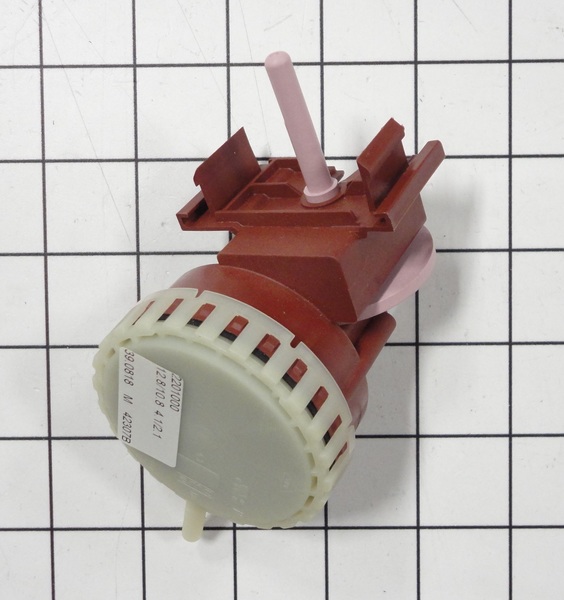

4	WP27001203	Switch, Pressure (Series: 10) (Replaces: 27001127)	Call for Availability

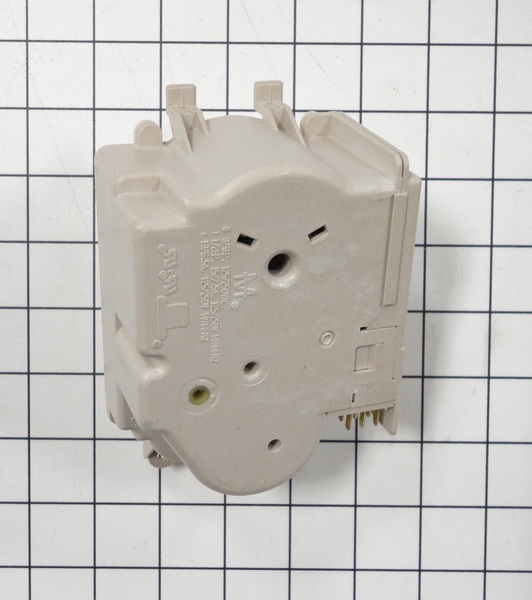

5	WP27001113	Timer (Series: 10) (Replaces: 27001113)	$224.00 Special Order
	WP33002917	Screw (hex Head) (Series: 10)	$4.80 Special Order
6	27001051	Back Panel, Hood/console (Series: 10)	$11.90 Special Order
7	27001103	Switch, Rotary (2 Pos) (Series: 10)	$27.00 Special Order

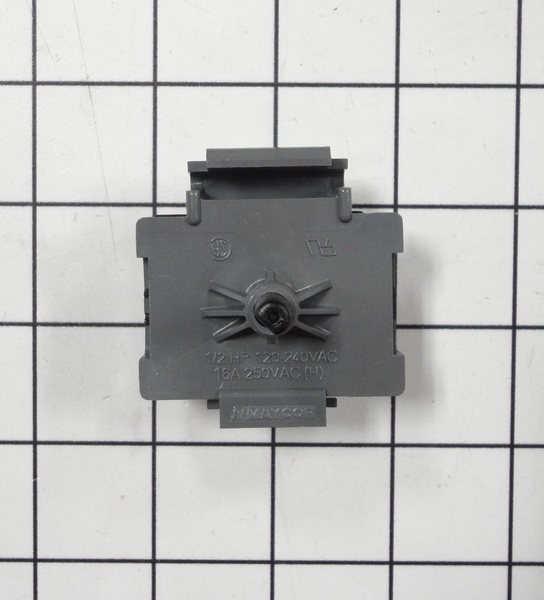

8	27001114	Switch, Rotary (4 Pos) (Series: 10)	$61.70 Special Order
9	22002996	Knob, Timer (gry) (Series: 10)	$3.10 Special Order
10	22002997	Pin, Locking (Series: 10)	Call for Availability
	27001092	Skirt, Timer Knob (wht) (Series: 10) (Replaces: 22002995)	Call for Availability
11	WP22001663	Knob, Selector Switch (wht) (Series: 10) (Replaces: 22001663)	$37.10 In-Stock Retail: $36.12
12	33001623	Buzzer, Non-adjustable (Series: 10)	Call for Availability
13	27001089	Switch, Temperature (4 Pos) (Series: 10)	$18.50 Special Order
14	WP74010226	Switch, Rocker (wht) (Series: 10)	$64.80 Special Order
